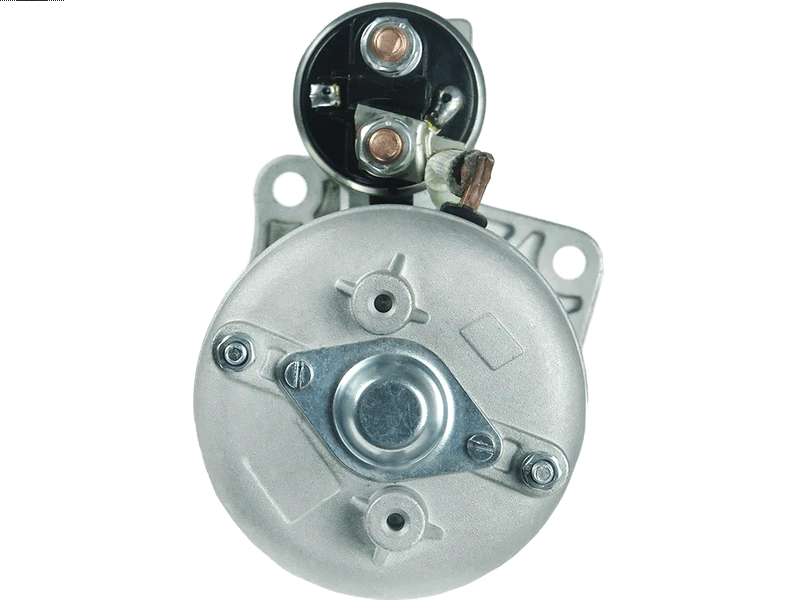

S4026 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 475.19 including GST

NZ$ 413.21 excluding GST


or four payments of $118.80 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
S4026
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001359021 0001359091 0001359102 0001367014 0001367028 0986011220 0986011221 10240B 10240I 10240M 10704 11.130.127 11.130.140 11.130.199 11.130.322 11.130.403 11.130.410 110529 19024230 19024272 20404101OE 20500847 20500850 25-0226 254171 4172113 436073 4702248 4807375 6030101 63216800 63216825 63216826 63216827 63216831 63216874 63224600 861049 AZJ3110 AZJ3116 AZJ3516 AZJ3517 AZJ3535 AZJ3582 CS240 CST30101GS DRS1220 G20240M-R GS216831-A GS367028-A LRS00182 LRS00847 MT62BA MT68A MT68AA MT68AB MT68AC MT68AD MT68MB S4026 STR50110
Kilowatt3 kW
Length (L.1)320 mm
Mount Hole Center - Center (O.1)147 mm
Mount Hole Center - Center (O.2)103 mm
Mount Hole Center - Center (O.3)103 mm
Mount Hole Diameter (C.1)12 mm
Mount Hole Diameter (C.2)12 mm
Mount Hole Diameter (C.3)12 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
OEM ProductNo
Pinion at Rest (B)26 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)110 mm
Unit TypeMAGNETI MARELLI
Voltage12 V
Make Model Type Year
AGRIFULL 65 3.6 8045.06.320 03.1985-12.1989
AGRIFULL 65 DT 3.6 8045.06.220 03.1985-
AGRIFULL 65 LM 3.6 8045.06.321 01.1990-
AGRIFULL 670 3.5 8045.02.378 09.1980-12.1984
AGRIFULL 703.6 8045.06.206 10.1984-
AGRIFULL 70 4.2 VM1054SV 01.1976-12.1977
AGRIFULL 70 .86F 3.6 8045.06.208 09.1992-
AGRIFULL 70 C 3.6 8045.06.306 03.1985-12.1989
AGRIFULL 70 C 3.6 8045.06.307 01.1990-
AGRIFULL 70 C-L 3.6 8045.06.206 03.1985-
AGRIFULL 70DT Frutteto3.6 8045.06.208 03.1985-
AGRIFULL 70 Frutteto 3.6 8045.06.308 03.1985-12.1989
AGRIFULL 70 Frutteto 3.6 8045.06.309 01.1990-
AGRIFULL 80 3.9 8045.05.206 10.1984-12.1989
AGRIFULL 80 4.2 VM1054SV 01.1976-12.1977
AGRIFULL 80 66 3.5 8045.02.276 03.1984-12.1984
AGRIFULL 80 70C 3.5 8045.02.211 09.1980-03.1983
AGRIFULL 80 70F 3.5 8045.02.278 09.1980-12.1984
AGRIFULL 80.763.7 8045.04.276 03.1984-12.1984
AGRIFULL 80 C 3.9 8045.05.206 03.1985-12.1989
AGRIFULL 80C3.9 8045.05.207 01.1990-
AGRIFULL 80 DTF 3.9 8045.05.308 09.1986-12.1989
AGRIFULL 80DTF3.9 8045.05.309 01.1990-
AGRIFULL 80 F 3.9 8045.05.208 09.1986-12.1989
AGRIFULL 80F3.9 8045.05.209 01.1990-
AGRIFULL 82.86 F 3.9 8045.05.208 06.1992-
AGRIFULL A70LM3.6 8045.06.206 01.1990-
AIFO Engine 8031.04.300 06.1979-06.1983
AIFO Engine 8041.04.200 03.1980-12.1980
AIFO Engine 8041.04.300 06.1979-06.1983
AIFO Engine 8060.02.800 06.1973-10.1981
AIFO Engine 8060.02.811 06.1973-12.1980
AIFO Engine 8061.04.000 06.1979-06.1983
AIFO Engine 8061.04.050 06.1979-06.1983
AIFO Engine 8061.04.051 09.1981-06.1983
AIFO Engine 8061.04.060 06.1978-06.1983
AIFO Engine 8061.04.061 09.1981-06.1983
AIFO Engine 8065.02.000 06.1973-12.1980
BENFRA 1.45 3.9 8041SI25 06.1989-
BENFRA 215 I 2.8 8031I002 01.1979-06.1985
BENFRA 4.11 3.9 8041SI25 01.1989-
BENFRA 7.07 3.9 8041SI25 01.1989-04.1991
BENFRA 9.09 CH 5.9 8061SI25 10.1985-04.1991
BENFRA 9.10 CH 5.9 8061SI25 02.1985-04.1991
CASE IH JX-SERIES JX 80, JX 90 01.2007-12.2008
CASE IH JX-SERIES JX 80, JX 90 01.2007-12.2008
CASE IH JX-SERIES JX 95 01.2007-12.2008
CASE IH JX-SERIES JX 95 01.2007-12.2008
FIAT 500 Serie 580 8035.04.270 01.1978-12.1984
FIAT 500 Serie 580 8035.04.270 01.1978-12.1984
FIAT 600 Serie 600 8045.02 01.1971-12.1972
FIAT 600 Serie 600 8045.02 01.1971-12.1972
FIAT 600 Serie 666 8045.02 01.1982-12.1986
FIAT 600 Serie 666 8045.02 01.1982-12.1986
FIAT 600 Serie 680 8045.02 01.1978-12.1984
FIAT 600 Serie 680 8045.02 01.1978-12.1984
FIAT 65.46 3.6 Diesel [8045.06..] 04.1985-08.1988
FIAT 65.66 3.6 Diesel [8045.06..] 06.1987-08.1988
FIAT 65.90 3.6 Diesel [8045.06..] 09.1987-08.1988
FIAT 70.65 3.6 Diesel [8045.06..] 10.1984-08.1988
FIAT 70.66 3.6 Diesel [8045.06..] 09.1984-08.1988
FIAT 70.90 3.6 Diesel [8045.06..] 03.1984-08.1988
FIAT 800 880/5 8055.04.200 01.1980-12.1984
FIAT 800 880/5 8055.04.200 01.1980-12.1984
FIAT 80.65 3.9 Diesel [8045.05...] 10.1984-08.1988
FIAT 80.66 3.9 Diesel [8045.05...] 05.1987-08.1988
FIAT 80.90 3.9 Diesel [8045.05...] 03.1984-08.1988
FIAT 85.55 3.9 Diesel [8045.05...] 10.1984-08.1988
FIAT 88 65-88 8045.06.213 01.1989-12.1993
FIAT 88 65-88 8045.06.213 01.1989-12.1993
FIAT 88 65-88 8045.06.225 01.1989-12.1993
FIAT 88 65-88 8045.06.225 01.1989-12.1993
FIAT 88 65-88 8045.06.319 01.1989-12.1993
FIAT 88 65-88 8045.06.319 01.1989-12.1993
FIAT 88 65-88 8045.06.326 01.1989-12.1993
FIAT 88 65-88 8045.06.326 01.1989-12.1993
FIAT 88 70-88 8045.06.200 01.1989-12.1993
FIAT 88 70-88 8045.06.208 01.1989-12.1993
FIAT 88 80-88 8045.05.000 01.1989-12.1993
FIAT 88 88-94 8045.25.210 01.1993-12.1996
FIAT 90 65-90 8045.06.213 01.1987-12.1992
FIAT 90 70-90 8045.06.200 01.1984-12.1992
FIAT 90 70-90 8045.06.208 01.1984-12.1992
FIAT 90 85-90 8045.25.210 01.1987-12.1992
FIAT 90 85-90 8045.25.310 01.1987-12.1992
FIAT 94 72-94 8045.06.200 01.1993-12.1996
FIAT L L65 8045.06.213 01.1996-12.1998
FIAT L L65 8045.06.225 01.1996-12.1998
FIAT L L65 8045.06.319 01.1996-12.1998
FIAT L L65 8045.06.326 01.1996-12.1998
FIAT TL TL80 8045.05.000 01.1998-12.2004
IVECO 8041 3.9 [8041.05..] 06.1986-09.1988
IVECO 8041 3.9 8041.05.. 06.1986-09.1988
IVECO 8051 4.9 [8051.05..] 01.1984-12.2000
IVECO 8051 4.9 8051.05.. 01.1984-12.2000
IVECO 8061 5.5 [8061.04..] 06.1983-09.1986
IVECO 8061 5.5 8061.04.. 06.1983-09.1986
IVECO 8061 5.9 [8061..] 01.1986-12.2000
IVECO 8061 5.9 8061.. 01.1986-12.2000
IVECO DI 20C 2.9 8035.05.359 02.1986-12.1990
IVECO Engine 803104.300 06.1983-12.1984
IVECO Engine 803105.300 01.1985-12.1989
IVECO Engine 8031I05.00 01.1990-
IVECO Engine 804104.300 06.1983-12.1984
IVECO Engine 804105.260 06.1986-09.1988
IVECO Engine 804105.300 01.1985-12.1989
IVECO Engine 8041I05.00 01.1990-
IVECO Engine 8041I05.50 01.1990-
IVECO Engine 8041SI25.00 01.1990-
IVECO Engine 805104.100 01.1984-12.1984
IVECO Engine 805105.200 01.1985-12.1989
IVECO Engine 8051I05.00 01.1990-
IVECO Engine 8061 01.1990-
IVECO Engine 806104.000 06.1983-12.1984
IVECO Engine 806104.001 01.1984-12.1984
IVECO Engine 806104.060 06.1983-12.1984
IVECO Engine 806104.061 06.1983-07.1983
IVECO Engine 806105.000 01.1985-12.1989
IVECO Engine 806105.260 01.1990-
IVECO Engine 806105.260 06.1986-09.1988
IVECO Engine 806105.300I25 01.1986-12.1989
IVECO Engine 806124.000 01.1984-12.1985
IVECO Engine 806125.000 01.1986-
IVECO Engine 806125.010 01.1985-
IVECO Engine 8061I05.00 01.1990-
IVECO Engine 8061SI35.05 12.1991-
IVECO Engine 8061SRI25.00 10.1989-
IVECO EUROCARGO I-III 75 E 14, 75 E 14 P 8040.45.4000 01.1991-09.2015
IVECO EUROCARGO I-III 75 E 14, 75 E 14 P 8040.45.4180 01.1991-09.2015
IVECO ZETA 109-14 8060.04.689 06.1983-12.1985
IVECO ZETA 109-14 8060.05.289 11.1985-03.1991
IVECO ZETA 109-14 H 8060.04.689 06.1983-12.1985
IVECO ZETA 109-14 H 8060.05.289 11.1985-03.1991
IVECO ZETA 79-13 8060.04.060 11.1979-12.1983
IVECO ZETA 79-13 8060.04.060 11.1979-12.1983
IVECO ZETA 79-13 8060.04.060 11.1979-12.1983
IVECO ZETA 79-13 8060.04.660 11.1979-12.1983
IVECO ZETA 79-13 8060.04.660 11.1979-12.1983
IVECO ZETA 79-13 8060.04.660 11.1979-12.1983
IVECO ZETA 79-14 8060.04.660 01.1983-11.1985
IVECO ZETA 79-14 8060.04.660 01.1983-11.1985
IVECO ZETA 79-14 8060.05.280 12.1985-03.1991
IVECO ZETA 79-14 8060.05.280 12.1985-03.1991
IVECO ZETA 79-14 H 8060.04.660 01.1983-11.1985
IVECO ZETA 79-14 H 8060.04.660 01.1983-11.1985
IVECO ZETA 79-14 H 8060.05.280 12.1985-03.1991
IVECO ZETA 79-14 H 8060.05.280 12.1985-03.1991
IVECO ZETA 79-14 V 8060.04.660 01.1983-11.1985
IVECO ZETA 79-14 V 8060.04.660 01.1983-11.1985
IVECO ZETA 79-14 V 8060.05.280 12.1985-03.1991
IVECO ZETA 79-14 V 8060.05.280 12.1985-03.1991
IVECO ZETA 95-14 8060.04.669 07.1983-10.1985
IVECO ZETA 95-14 H 8060.04.669 07.1983-10.1985
LAVERDA 3300 4.6 8051.04.100 01.1983-12.1986
LAVERDA 3300 AL 4.9 8051I005 04.1983-
LAVERDA 3350 5.2 8065I 01.1983-06.1986
LAVERDA 3350 AL 5.5 8061SI 01.1983-12.1986
LAVERDA 3400 5.9 8061I005 05.1986-
LAVERDA 3450 5.2 8065I 01.1983-12.1984
LAVERDA 3500 5.5 8061I05 01.1985-
LAVERDA 3550 5.9 8061SI05 03.1985-
LAVERDA 3600 5.5 8061SI 01.1983-06.1986
LAVERDA 3650 5.9 8061I05 06.1985-
LAVERDA 3750 5.5 8061SI25 06.1985-
NEW HOLLAND 3500 5.5 8061I05 03.1985-
NEW HOLLAND 3550 5.9 8061SI05 03.1985-
NEW HOLLAND 3750 5.9 8061SI25 06.1985-
NEW HOLLAND 517 H 5.9 8061SI35 02.1939-
NEW HOLLAND 517 I 5.9 8061SI35 02.1939-
NEW HOLLAND 517 M 5.9 8061SI35 02.1939-
NEW HOLLAND 65 56 3.6 8045.06.220 01.1990-
NEW HOLLAND 65 66 3.6 8045.06.220 06.1987-
NEW HOLLAND 65 88 3.6 8045.06.319 11.1989-
NEW HOLLAND 65 90 3.6 8045.06.225 09.1987-
NEW HOLLAND 70 56 3.6 8045.06.206 01.1990-
NEW HOLLAND 70 56 3.6 8045.06.307 01.1990-
NEW HOLLAND 70 66 3.6 8045.06.206 09.1984-
NEW HOLLAND 7066 DT 3.6 8045.06.307 01.1990-
NEW HOLLAND 70 66F 3.6 8045.06.208 01.1990-
NEW HOLLAND 70 75 3.6 8045.06.206 01.1990-
NEW HOLLAND 7076 V 3.6 8045.06.208 01.1990-
NEW HOLLAND 7076 V 3.6 8045.06.309 01.1990-
NEW HOLLAND 70 86F 3.6 8045.06.208 09.1992-
NEW HOLLAND 70 88 3.6 8045.06.317 11.1989-
NEW HOLLAND 70 90 3.6 8045.06.200 03.1984-
NEW HOLLAND 80 88 3.9 8045.05.216 11.1989-
NEW HOLLAND 82 86F 3.9 8045.05.208 06.1992-
NEW HOLLAND L 517H 5.9 8061SI35 03.1992-
NEW HOLLAND TD 5 5.100 11.2011-
NEW HOLLAND TD 5 5.100 11.2011-
NEW HOLLAND TD 5 5.105 11.2011-
NEW HOLLAND TD 5 5.115 11.2011-
NEW HOLLAND TD 5 5.75 11.2011-
NEW HOLLAND TD 5 5.75 11.2011-
NEW HOLLAND TD 5 5.90 11.2011-
NEW HOLLAND TD 5 5.90 11.2011-
NEW HOLLAND TD 5 5.95 11.2011-
NEW HOLLAND TL TL100 01.1999-12.2003
NEW HOLLAND TL TL100 01.1999-12.2003
NEW HOLLAND TL TL80 01.1999-12.2003
NEW HOLLAND TL TL80 01.1999-12.2003
NEW HOLLAND TL TL90 01.1999-12.2003
NEW HOLLAND TL TL90 01.1999-12.2003
NEW HOLLAND TN-A TN60DA 01.2004-12.2008
NEW HOLLAND TN-A TN60DA 01.2004-12.2008
NEW HOLLAND TN-A TN60SA 01.2004-12.2008
NEW HOLLAND TN-A TN70DA, TN75DA 01.2004-12.2008
NEW HOLLAND TN-A TN70DA, TN75DA 01.2004-12.2008
NEW HOLLAND TNF-A TN75FA 8045.05 01.2004-
NEW HOLLAND TNF-A TN75FA 8045.05 01.2004-
NEW HOLLAND TNF-A TN85FA 01.2004-
NEW HOLLAND TNF-A TN85FA 01.2004-
NEW HOLLAND TNF-A TN95FA 01.2004-
NEW HOLLAND TNF-A TN95FA 01.2004-
NEW HOLLAND TN TN65F 8045.06 01.1999-12.2002
NEW HOLLAND TN TN90F 01.1999-12.2001
VM HR 329S HTR 1.8 01.1986-
WHITE 18295 01.1976-01.1980
WHITE 21947 4-211 01.1976-01.1984
0001359021BOSCH
0001359091BOSCH
0001359102BOSCH
0001367014BOSCH
0001367028BOSCH
035530712ACHRYSLER
0986011220BOSCH
0986011221BOSCH
10240KUHNER
10240BKUHNER
10240IKUHNER
10240KKUHNER
10240MKUHNER
10704KUHNER
10704LKUHNER
110529CARGO
11.130.127ISKRA / LETRIKA
11.130.140ISKRA / LETRIKA
11.130.199ISKRA / LETRIKA
11.130.322ISKRA / LETRIKA
11.130.403ISKRA / LETRIKA
11.130.410ISKRA / LETRIKA
11370EFEL
19024230DELCO
19024272DELCO
2022506FIAT
2022507FIAT
20404101OEREAL
220077ERA
25-0226ELSTOCK
254171KUHNER
35530712ACHRYSLER
4169093FIAT
4169096FIAT
4172113FIAT
436073VALEO
4692478FIAT
4699705FIAT
4702248FIAT
4703751FIAT
4703751IVECO
4737755FIAT
4755109AGRIFULL
4755109FIAT
4755109IVECO
4763996FIAT
4807375FIAT
4832942NEW HOLLAND
4988513FIAT
500333271IVECO
500338952IVECO
5119319FIAT
6030101SANDO
63216800MAGNETI MARELLI
63216825MAGNETI MARELLI
63216826MAGNETI MARELLI
63216827MAGNETI MARELLI
63216831MAGNETI MARELLI
63216874MAGNETI MARELLI
63224600MAGNETI MARELLI
861049PRESTOLITE
88205006FIAT
99449113IVECO
AM-2614AUTO MAGNETO
AZJ3110ISKRA / LETRIKA
AZJ3116ISKRA / LETRIKA
AZJ3516ISKRA / LETRIKA
AZJ3517ISKRA / LETRIKA
AZJ3535ISKRA / LETRIKA
AZJ3582ISKRA / LETRIKA
CGB-21220AINDE
CS240HC PARTS
CST30101GSCASCO
DM2130FIAT
DM2134FIAT
DM2134OPEL
DM2138FIAT
DM2138MAN
DM2138OPEL
DM92137FIAT
DRS1220DELCO
F032110529CARGO
G20240M-RGPARTS
GS216831-AGPARTS
GS367028-AGPARTS
LRS00182LUCAS
LRS00847LUCAS
LRS182LUCAS
LRS847LUCAS
MAV121530SIOM
MAV2070SIOM
MAV2390SIOM
MAV321720SIOM
MS 195MAHLE
MT62BAMAGNETI MARELLI
MT68AMAGNETI MARELLI
MT68AAMAGNETI MARELLI
MT68ABMAGNETI MARELLI
MT68ACMAGNETI MARELLI
MT68ADMAGNETI MARELLI
MT68MBMAGNETI MARELLI
S12BH0182A2SIDAT
S12MA0106A2SIDAT
S4026AS-PL
STR50110WOODAUTO
STR9068ELECTROLOG
STRL0323EFFE
STRL032_3EFFE
STRL8493EFFE
STRL8533EFFE
STX210081STARDAX
S4026

View your shopping basket or Browse other items in Starter Motors.
