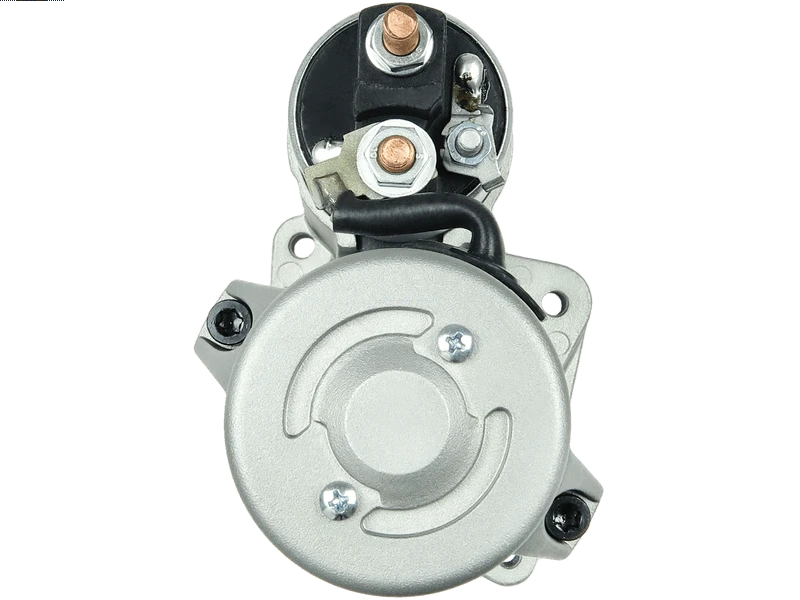

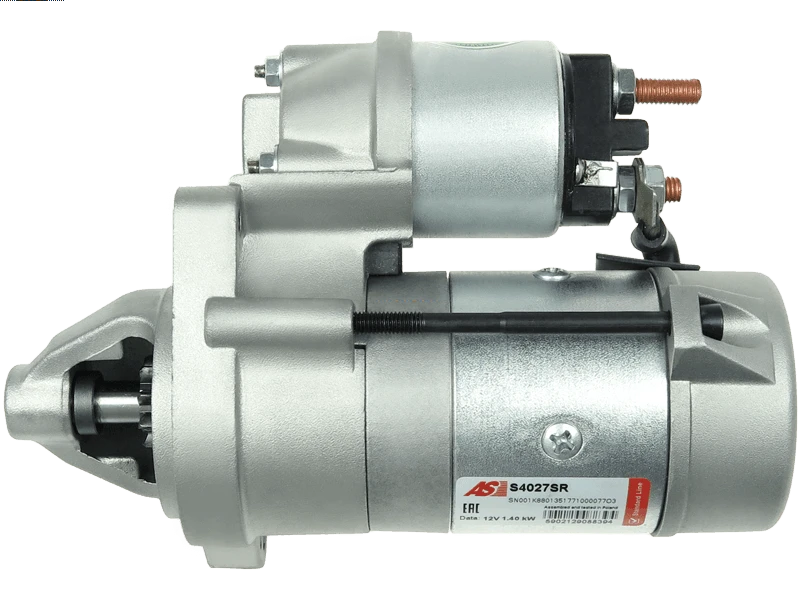

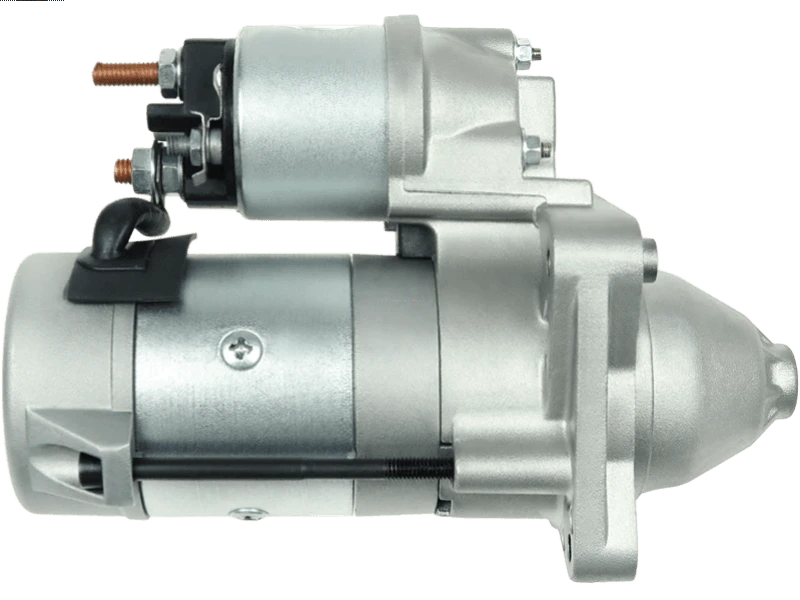

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 251.68 including GST
NZ$ 218.85 excluding GST
or four payments of $62.92
with
Learn More
each
S4027SR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986022111 101191 101345 101345V 11947 20404321 220693 25-2337 3004 32579R 42022111 458163 46451529 46531437 500.538.113 6030123 63111008 63111010 63111016 63111018 63111019 63111036 63111037 63223536 70789523 88212300 8EA012527-391 8EA737820-001 AEU1191 CS1191 CST30123 CST30123AS CST30123ES CST30123GS CST30123OS CST30123RS DRS3583 DRS3587 DS4693 DS4697 EAA-121400 LRS01431 S4027 SG0779 STE1191Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 212 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Center - Center (O.2) | 72 mm |
| Mount Hole Center - Center (O.3) | 72 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9, 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 63.50 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.6 16V | [182A4.000] | 02.1996-10.2001 |
| FIAT | Brava 1.6 16V | [182A6.000] | 10.1995-10.2001 |
| FIAT | Bravo 1.6 16V | [182A4.000] | 03.1996-10.2001 |
| FIAT | Bravo 1.6 16V | [182A6.000] | 10.1995-10.2001 |
| FIAT | Marea 1.6 100 16V | [182A4.000] | 09.1996-05.2002 |
| FIAT | Marea 1.6 16V | [185A3.000] | 04.1997-02.1999 |
| FIAT | Multipla 1.6 100 16V | [182A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V Bipower | [186A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V Blupower | [186A3.000] | 04.1999-06.2010 |
| FIAT | Palio 1.6 16V | [178C7.098] | 07.1997-10.2003 |
| FIAT | Palio 1.6 16V | [178D2.011] | 07.1997-10.2003 |
| LANCIA | Dedra 1.6 16V | [182A4.000] | 01.1996-07.1999 |
| LANCIA | Dedra SW 1.6 16V | [182A4.000] | 01.1996-07.1999 |
| LANCIA | Lybra 1.6 16V | [182A4.000] | 07.1999-10.2005 |
Reference Information
| 0986022111 | BOSCH |
| 101191 | KUHNER |
| 11947 | EAI |
| 20404321 | REAL |
| 220693 | ERA |
| 25-2337 | ELSTOCK |
| 3004 | CEVAM |
| 32579R | WAI / TRANSPO |
| 42022111 | HERTH+BUSS |
| 46231536 | FIAT |
| 46451529 | FIAT |
| 46524472 | FIAT |
| 46531437 | FIAT |
| 46748349 | FIAT |
| 46748355 | FIAT |
| 46748356 | FIAT |
| 46821681 | FIAT |
| 500.538.113 | PSH |
| 51776205 | FIAT |
| 51832956 | FIAT |
| 51868757 | FIAT |
| 55193407 | FIAT |
| 6030123 | SANDO |
| 63111008 | MAGNETI MARELLI |
| 63111010 | MAGNETI MARELLI |
| 63111016 | MAGNETI MARELLI |
| 63111018 | MAGNETI MARELLI |
| 63111019 | MAGNETI MARELLI |
| 63111033 | MAGNETI MARELLI |
| 63111036 | MAGNETI MARELLI |
| 63111037 | MAGNETI MARELLI |
| 63223536 | MAGNETI MARELLI |
| 70789523 | FIAT |
| 71721236 | FIAT |
| 71721266 | FIAT |
| 71721272 | FIAT |
| 71782308 | FIAT |
| 71782309 | FIAT |
| 71782310 | FIAT |
| 71789523 | FIAT |
| 71794531 | FIAT |
| 88212300 | POWERMAX |
| 8EA012527-391 | HELLA |
| 8EA737820-001 | HELLA |
| AEU1191 | AUTOELECTRO |
| CS1191 | HC PARTS |
| CST30123 | CASCO |
| CST30123AS | CASCO |
| CST30123ES | CASCO |
| CST30123GS | CASCO |
| CST30123OS | CASCO |
| CST30123RS | CASCO |
| DRS3583 | DELCO |
| DS4693 | DELCO |
| DS4697 | DELCO |
| LRS01431 | LUCAS |
| LRS1431 | LUCAS |
| MAV2380 | SIOM |
| MAV6360 | SIOM |
| S12MA0821A2 | SIDAT |
| S132.945 | PSH |
| S4027 | AS-PL |
| SG0779 | GHIBAUDI |
| STE1191 | KRAUF |
| STR9015 | ELECTROLOG |
| STRL067 | 3EFFE |
| STX200212 | STARDAX |
| STX200212R | STARDAX |
| STX200338 | STARDAX |
