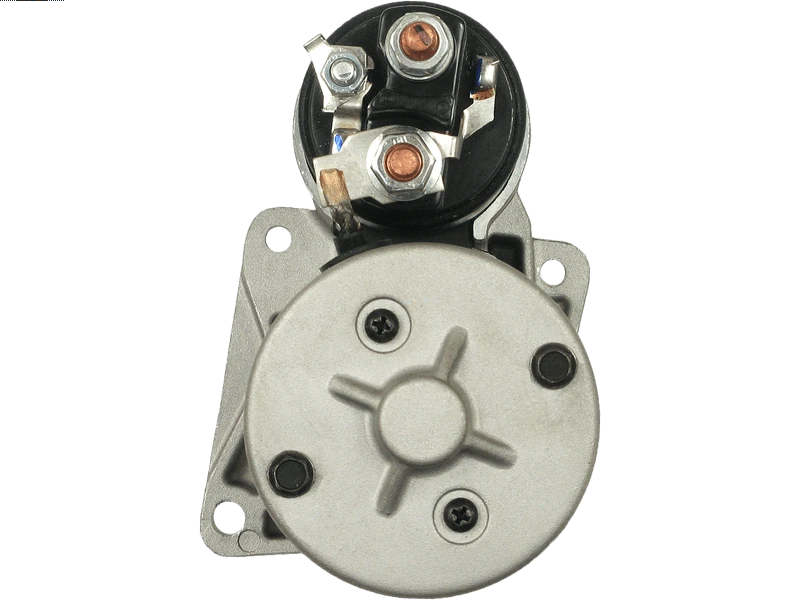

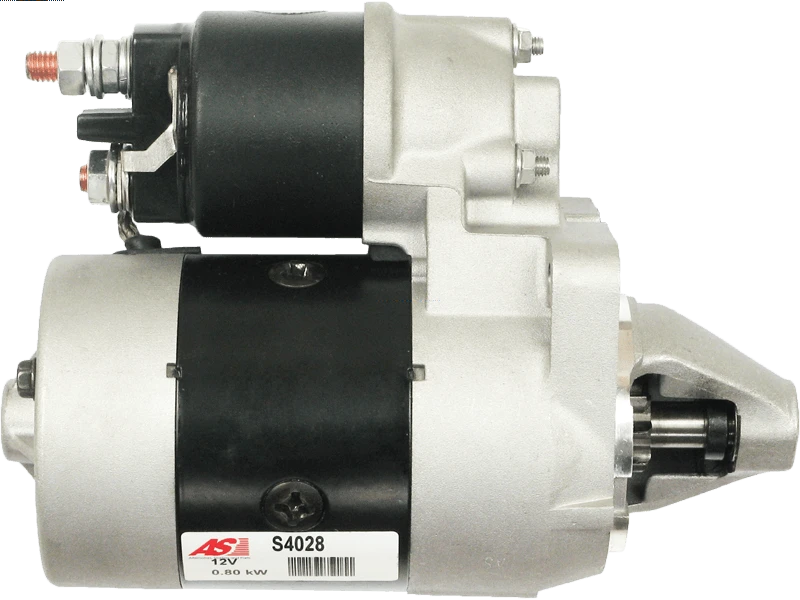

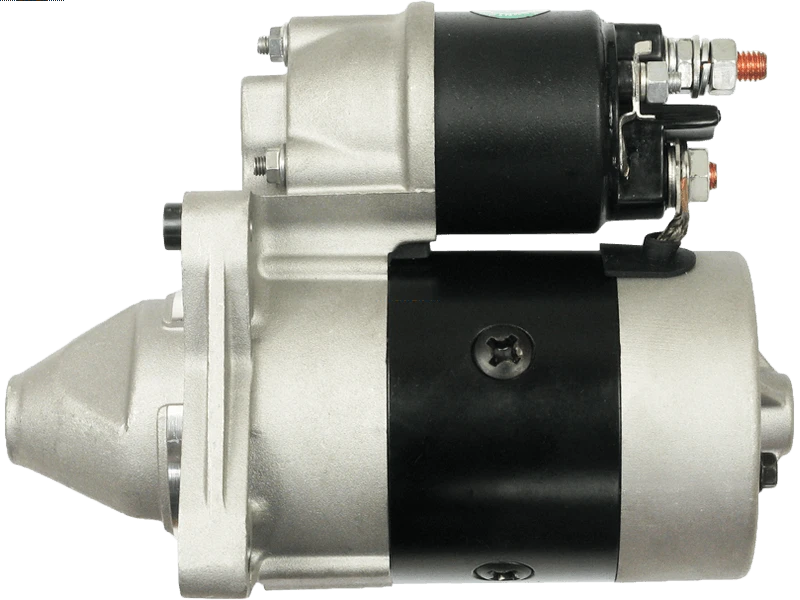

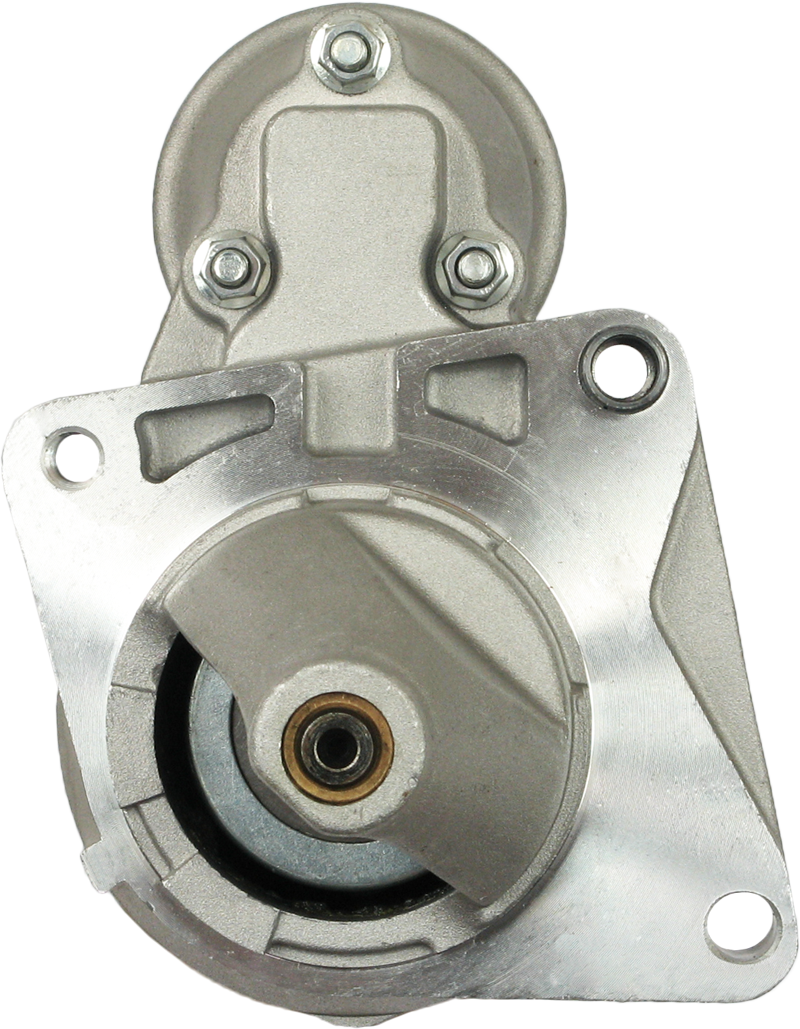

S4028 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 240.40 including GST

NZ$ 209.04 excluding GST



or four payments of $60.10 with
Afterpay Payment Offer Learn More

each
S4028
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

063101015010 0986024210 101192 101192H 10796 10796H 10796V 112382 11883 20500989 20513002 220024 25-3096 31397N 31397R 3829 42017030 455553 458407 46473785 46518059 46548653 46740242 500.582.103 6010331 6020150 6030107 63101015 63101018 63102020 71721222 726020 726133 7796598 88212784 8EA012526-741 8EA737823-001 AEU1192 CS1192 CST10331 CST10331AS CST10331ES CST10331GS CST10331OS CST10331RS CST20150 CST20150AS CST20150ES CST20150GS CST20150OS CST20150RS CST30107 CST30107AS CST30107ES CST30107GS CST30107OS CST30107RS DENDSN961 DRS3977 DS5087 DSN961 EAA-121172 G201192-A GS101015M-R GS101018-A LRS01586 MSN829 S4028 SG0139 SS602 STE1192 STR52025
Kilowatt0.80 kW
Length (L.1)190 mm
Mount Hole Center - Center (O.1)74 mm
Mount Hole Center - Center (O.2)108 mm
Mount Hole Center - Center (O.3)74 mm
Mount Hole Diameter (C.1)6.50 mm
Mount Hole Diameter (C.2)8.50 mm
Mount Hole Diameter (C.3)M8x1.25 mm
No./Mount holes3 qty
No./Mount holes with thread1 qty
No./Teeth8 qty
No./Teeth (Replaces)8. 10 qty
OEM ProductNo
Pinion at Rest (B)12 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)64 mm
Unit TypeMAGNETI MARELLI
Voltage12 V
Make Model Type Year
FIAT Brava 1.2 16V [182B2.000] 12.1998-12.2002
FIAT Bravo 1.2 16V [182B2.000] 12.1998-10.2001
FIAT Palio 1.2 [178B5.000] 04.1996-02.2001
FIAT Palio 1.2 [178E2.000] 06.1998-
FIAT Palio 1.2 [188A4.000] 02.2001-
FIAT Punto 1.2 [176A8.000] 10.1993-09.1999
FIAT Punto 1.2 16V [188A5.000] 09.1999-
FIAT Punto 1.2 8V [188A4.000] 09.1999-
FIAT Punto 1.2 BiFuel [188A4.000] 08.2007-
FIAT Punto 1.2 Natural Power [188A4.000] 09.2003-
FIAT Siena 1.0 01.1998-
FIAT Siena 1.2 [188A5.000] 01.2001-
LANCIA Y 1.2 [188A4.000] 03.1996-09.2003
LANCIA Y 1.2 16V [188A5.000] 10.2000-09.2003
063101018010MAGNETI MARELLI
0986024210BOSCH
112382CARGO
136910HITACHI
20404701BNREAL
20404701OEREAL
20404701REREAL
20445051OEREAL
20513002PRESTOLITE
2506910HITACHI
25-3096ELSTOCK
31397NWAI / TRANSPO
31397RWAI / TRANSPO
336430LOGISTIK
46429594FIAT
46473785FIAT
46518059FIAT
46548653FIAT
46548654FIAT
46737560FIAT
46740242PEUGEOT
46763529FIAT
500.544.083.000PSH
500.544.083.058PSH
500.544.083.265PSH
500.582.103.050PSH
500.582.103.080PSH
500.582.103.270PSH
500.582.103.275PSH
5030043MEAT & DORIA
51833880PEUGEOT
51890633FIAT
55195030PEUGEOT
55196400FIAT
55201304FIAT
55201305FIAT
6020150.1SANDO
6030107.0SANDO
6030107.1SANDO
6030107.4SANDO
63101015MAGNETI MARELLI
63101018MAGNETI MARELLI
63102018MAGNETI MARELLI
63102020MAGNETI MARELLI
71721222FIAT
71782288FIAT
71782351FIAT
71782353FIAT
71793780PEUGEOT
71794607FIAT
7622952FIAT
7772859FIAT
7796598FIAT
8EA012526-741HELLA
8EA737823-001HELLA
944280800120MAGNETI MARELLI
AEU1192AUTOELECTRO
ANM12413XANDEL
ASM1228APEC
CGB-53096AINDE
CS1192HC PARTS
CST20150GSCASCO
CST30107ASCASCO
CST30107GSCASCO
CST30107OSCASCO
DENDSN961WOODAUTO
DRS3816XDELCO
DS4926NDELCO
DSN961DENSO
F032112382CARGO
LRS01586LUCAS
LRS1586LUCAS
MSN400MAGNETI MARELLI
NEU1192AUTOELECTRO
NPANSM1228NAPA
PRSL1263EFFE
PRSS6933EFFE
PRSS7003EFFE
RAS34927DELCO
S114-901BHITACHI
S114-903HITACHI
S114-903AHITACHI
S114949HITACHI
S114-949HITACHI
S114949AHITACHI
S114-949AHITACHI
S12HT0009SIDAT
S12HT0009A2SIDAT
S12MA0009A2SIDAT
S12MA0820A2SIDAT
S132.816PSH
S144.456PSH
S149.117PSH
S4028AS-PL
STA0067RBOVEZ
STE1192KRAUF
STM2016ROLLCO
STR3217ELECTROLOG
STR52025WOODAUTO
STR9072ELECTROLOG
STRL1263EFFE
STRS6933EFFE
STRS7003EFFE
STX200032STARDAX
STX200032RSTARDAX
STX200053STARDAX
STX200053RSTARDAX
STX200057STARDAX
STX200057RSTARDAX
STX200361STARDAX
STX200361RSTARDAX
S4028
