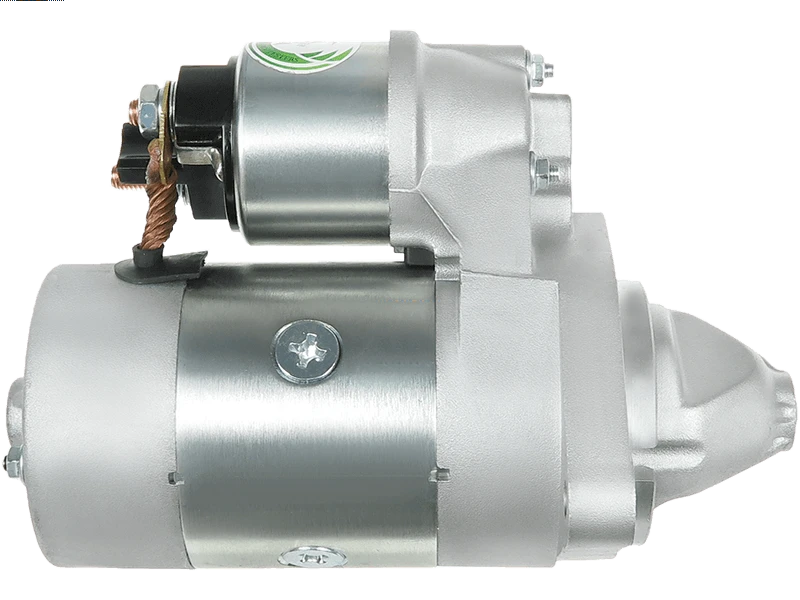

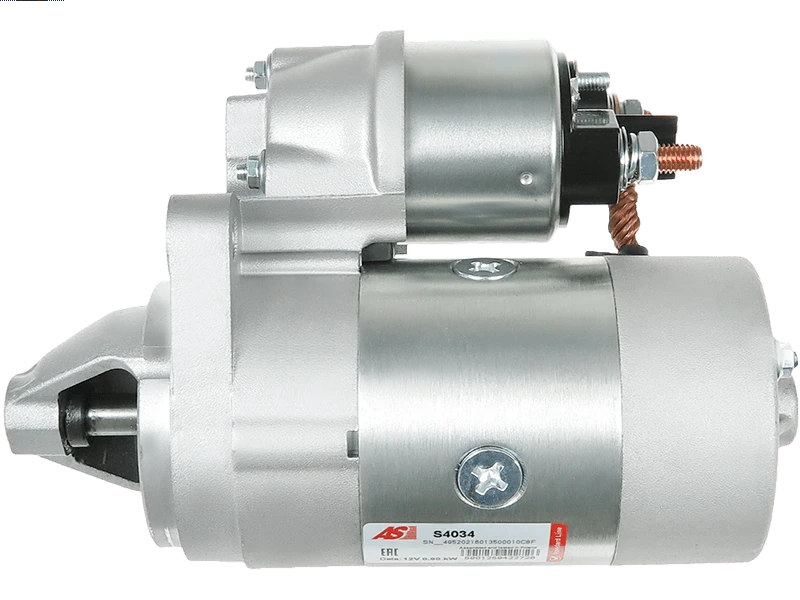

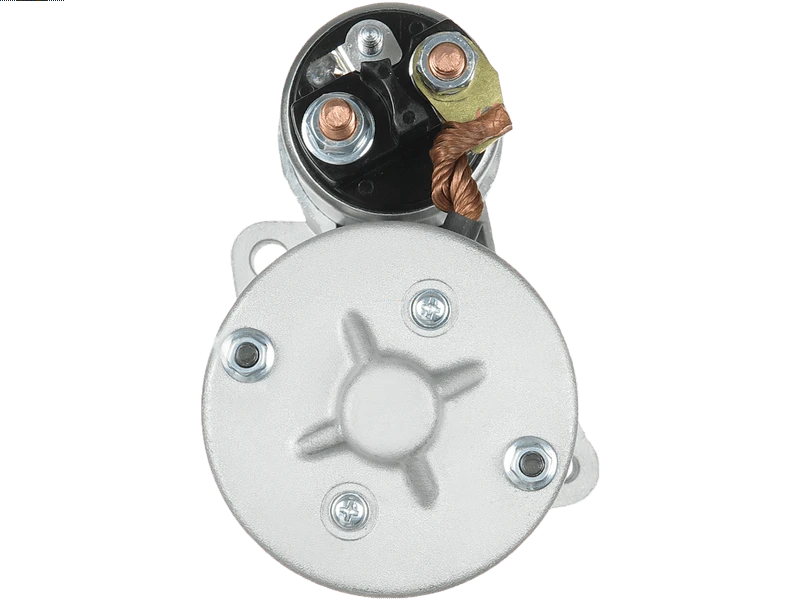

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 242.95 including GST
NZ$ 211.26 excluding GST
or four payments of $60.74
with
Learn More
each
S4034
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986018621 112029 11954 201142 20417001BN 22.1142 22.1142M 2330-02F00 23300-2F000 23300-92350 25-2224 31154R 6045100 63102000 63192000 63223106 66925223 8018621 8EA737608-001 943192000 9541 AES1254 CST45100AS DRS3614 EAA-121105 JS1142 LRT00154 SS436 STR52028Specifications
| Kilowatt | 0.90 kW |
| Length (L.1) | 207 mm |
| Mount Hole Center - Center (O.1) | 106 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 12 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Primera 1.6 16V | (P11)[GA16DE] | 06.1996-12.2001 |
Reference Information
| 003-D166 | ASHIKA |
| 003-D211 | ASHIKA |
| 0986018621 | BOSCH |
| 112029 | CARGO |
| 11954 | EAI |
| 201142 | KUHNER |
| 20417001BN | REAL |
| 220100 | ERA |
| 22.1142 | LAUBER |
| 22.1142M | LAUBER |
| 2330-02F00 | TOYOTA |
| 23300-2F000 | NISSAN |
| 23300-92350 | NISSAN |
| 25-2224 | ELSTOCK |
| 31154R | WAI / TRANSPO |
| 335594 | LOGISTIK |
| 335992 | LOGISTIK |
| 3D166 | JAPKO |
| 3D211 | JAPKO |
| 600000168910 | MAGNETI MARELLI |
| 6045100 | SANDO |
| 63102000 | MAGNETI MARELLI |
| 63102000A | MAGNETI MARELLI |
| 63192000 | MAGNETI MARELLI |
| 63223106 | MAGNETI MARELLI |
| 66925223 | PRESTOLITE |
| 8018621 | FRIESEN |
| 88213140 | POWERMAX |
| 8EA737608-001 | HELLA |
| 943192000 | MAGNETI MARELLI |
| 943211421010 | MAGNETI MARELLI |
| 944280186210 | MAGNETI MARELLI |
| 9541 | CEVAM |
| AES1254 | AUTOELECTRO |
| ANM15834X | ANDEL |
| CST45100AS | CASCO |
| DRS3614 | DELCO |
| F032112029 | CARGO |
| JS1142 | HC PARTS |
| LRT00154 | LUCAS |
| MAV321750 | SIOM |
| MAV471000 | SIOM |
| MSN613 | MAGNETI MARELLI |
| MTD166 | JAPANPARTS |
| MTD211 | JAPANPARTS |
| RNL63192000 | RNL |
| S4034 | AS-PL |
| SS436 | SOVEREIGN |
| STR52028 | WOODAUTO |
| STR9074 | ELECTROLOG |
| STRS889 | 3EFFE |
| STX200179 | STARDAX |
| STX200179R | STARDAX |
