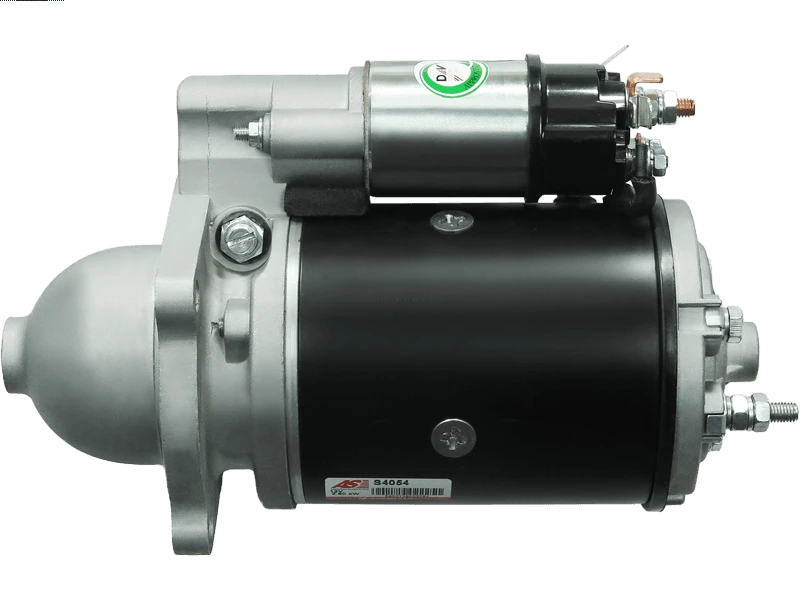

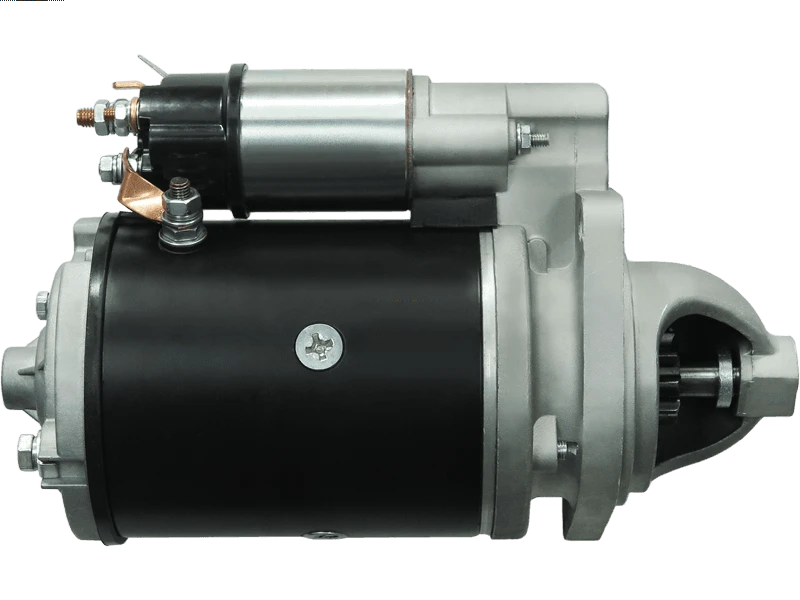

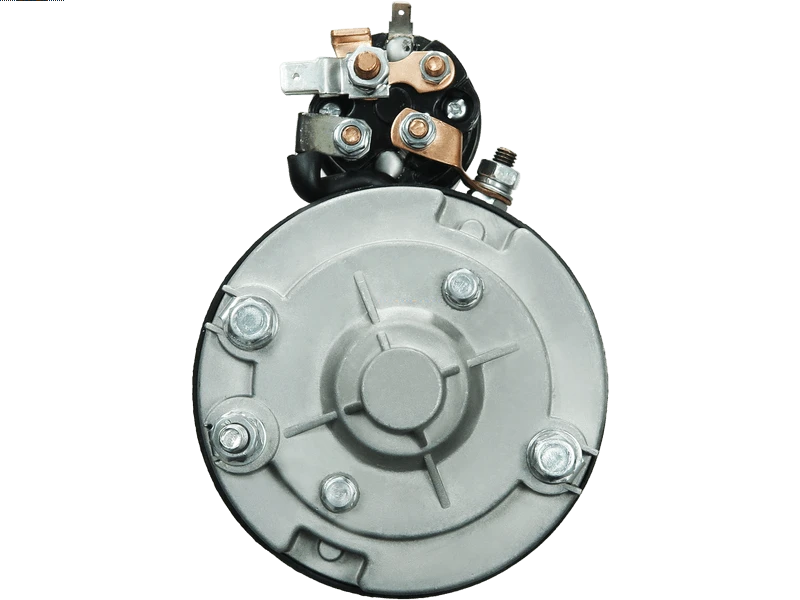

S4054 - Brand new AS-PL Starter motor

Associated Numbers

0001359116 111573 17071N 17071R 20405011BN 20405011OE 20500106 25-0081 254103P 26025183 26025183A 26246 26246A 26246E 26246F 26246J 26246K 26246L 26246M 26304 26304A 26304B 26304D 26343 26343A 26343B 26343D 26343E 26343F 26343K 26351 26351B 26351D 26376 26376A 26376E 26376K 26376L 27513 27513A 27526 27526A 27526D 6025110 700.014.103 714-03000R AES1106 AES2112 CST25110 CST25110AS CST25110ES CST25110GS CST25110OS CST25110RS EAA-111199 EAA-153252 LRD132 LRS00106 LRS106 SG0164 STR25007 TS-4048 UD12401S

Specifications

Kilowatt	2.80 kW
Length (L.1)	312 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Center - Center (O.2)	145 mm
Mount Hole Center - Center (O.3)	103 mm
Mount Hole Diameter (C.1)	12.50 mm
Mount Hole Diameter (C.2)	12.50 mm
Mount Hole Diameter (C.3)	12.50 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	25.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	102 mm
Unit Type	LUCAS
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
DENNIS	Bulkmaster 50/70		01.1972-12.1979
HEDEN	345
JCB	2B		01.1969-
JCB	2B
JCB	2D	[384/4]	01.1972-
JCB	2D	[384/4]
JCB	2D	[4/65]	01.1971-
JCB	2D/2DS	[4/65]	01.1971-
JCB	3	[384/4]	01.1971-
JCB	3	[4/65]	01.1971-
JCB	3/3C	[384/4]	01.1972-
JCB	3/3C	[4/65]	01.1971-
JCB	3CX		01.1980-12.1981
JCB	3D	[384/4]	01.1972-
JCB	3D	[4/65]	01.1971-
JCB	410		01.1982-12.1994
JCB	4D	[384/4]	01.1972-
JCB	4D	[4/65]	01.1971-
JCB	4D		01.1969-12.1980
JCB	4D
JCB	520		01.1975-12.1981
JCB	520M		01.1986-12.1997
LEYLAND	245	[D3.152]	01.1974-12.1977
LEYLAND	262	[4/98DT]	01.1976-12.1979
LEYLAND	270	[4/98NT]	01.1974-12.1976
LEYLAND	285	[6/98DT]	01.1977-12.1979
LEYLAND	Various Models		01.1971-12.1976
TCM	FC 3024

Reference Information

0001359116	BOSCH
111573	CARGO
17071N	WAI / TRANSPO
17071R	WAI / TRANSPO
20405011BN	REAL
20405011OE	REAL
20500106	PRESTOLITE
25-0081	ELSTOCK
254103P	KUHNER
26025183	LUCAS
26025183A	LUCAS
26246	LUCAS
26246A	LUCAS
26246E	LUCAS
26246F	LUCAS
26246J	LUCAS
26246K	LUCAS
26246L	LUCAS
26246M	LUCAS
26294	JCB
26304	LUCAS
26304A	LUCAS
26304B	LUCAS
26304D	LUCAS
26343	LUCAS
26343A	LUCAS
26343B	LUCAS
26343D	LUCAS
26343E	LUCAS
26343F	LUCAS
26343K	LUCAS
26351	LUCAS
26351B	LUCAS
26351D	LUCAS
26376	LUCAS
26376A	LUCAS
26376E	LUCAS
26376K	LUCAS
26376L	LUCAS
27513	LUCAS
27513A	LUCAS
27526	LUCAS
27526A	LUCAS
27526D	LUCAS
336227	LOGISTIK
6025110	SANDO
700.014.103	PSH
714-03000R	JCB
714-11200	JCB
714/11200	JCB
714-40006	JCB
AES1106	AUTOELECTRO
AES2112	AUTOELECTRO
CGB-23456	AINDE
CST25110	CASCO
CST25110AS	CASCO
CST25110ES	CASCO
CST25110GS	CASCO
CST25110OS	CASCO
CST25110RS	CASCO
F032111573	CARGO
LRD132	LUCAS
LRS00106	LUCAS
LRS0106	LUCAS
LRS106	LUCAS
MAV3620	SIOM
MAV3810	SIOM
S134.941	PSH
S4054	AS-PL
SG0164	GHIBAUDI
STR25007	WOODAUTO
STR4139	ELECTROLOG
STRS092	3EFFE
STX200542	STARDAX
TS-4048	DIXIE
UD12401S	AS-PL
