Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 300.00 including GST
NZ$ 260.87 excluding GST
or four payments of $75.00
with
Learn More
each
S4056
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
LRS100Associated Numbers
20500100 25-0050 25142 25148 25236 25260 9141381 AES1100 DRS3455 EAA-151149 LRS00100 LRS100 SS138 STR56013 UD12399S
M35J M35G Inertia

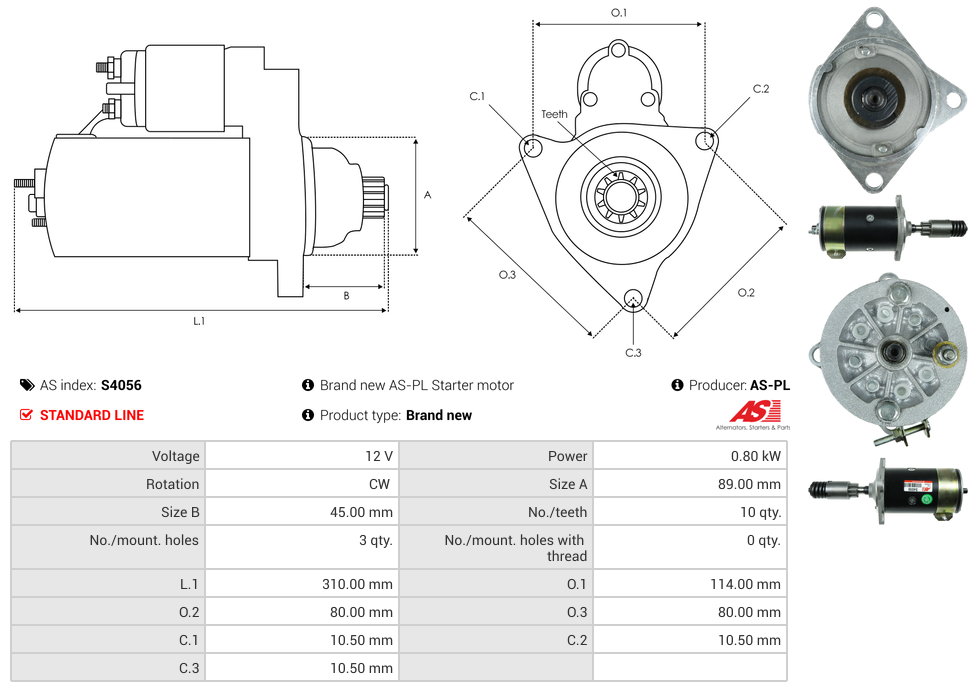

Specifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 310 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Center - Center (O.2) | 80 mm |
| Mount Hole Center - Center (O.3) | 80 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 45 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BEDFORD | Chevanne 1.3 | [LW4] | 03.1980-12.1982 |
| FORD | Cortina 1.3 | 01.1976-12.1979 | |
| FORD | Cortina 1.6 | 01.1976-12.1979 |
Reference Information
| 16169R | WAI / TRANSPO |
| 20500100 | PRESTOLITE |
| 25-0050 | ELSTOCK |
| 25142 | LUCAS |
| 25148 | LUCAS |
| 25236 | LUCAS |
| 25260 | LUCAS |
| 9141381 | MAGNETON |
| AES1100 | AUTOELECTRO |
| ANM15675X | ANDEL |
| DRS3455 | DELCO |
| LRS00100 | LUCAS |
| LRS0100 | LUCAS |
| LRS100 | LUCAS |
| SS138 | SOVEREIGN |
| STR4005 | ELECTROLOG |
| STR56013 | WOODAUTO |
| UD12399S | AS-PL |
Video/Publications
