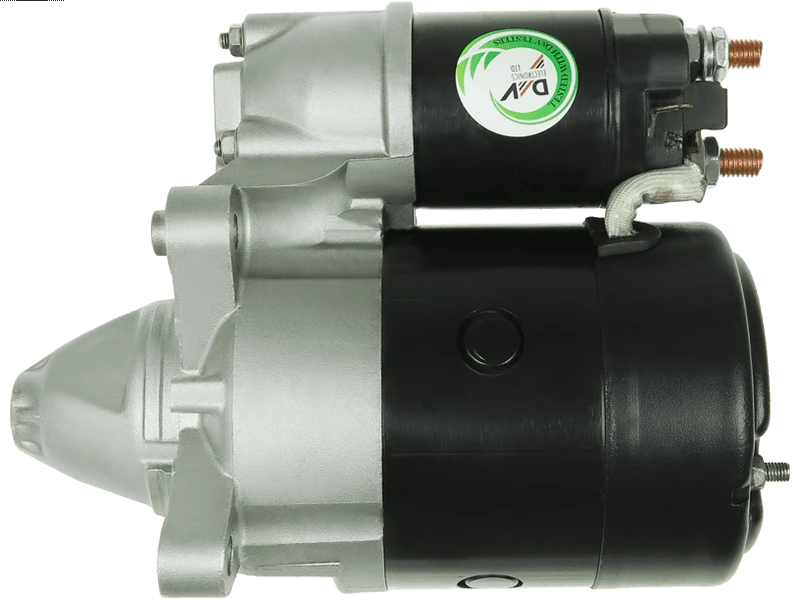

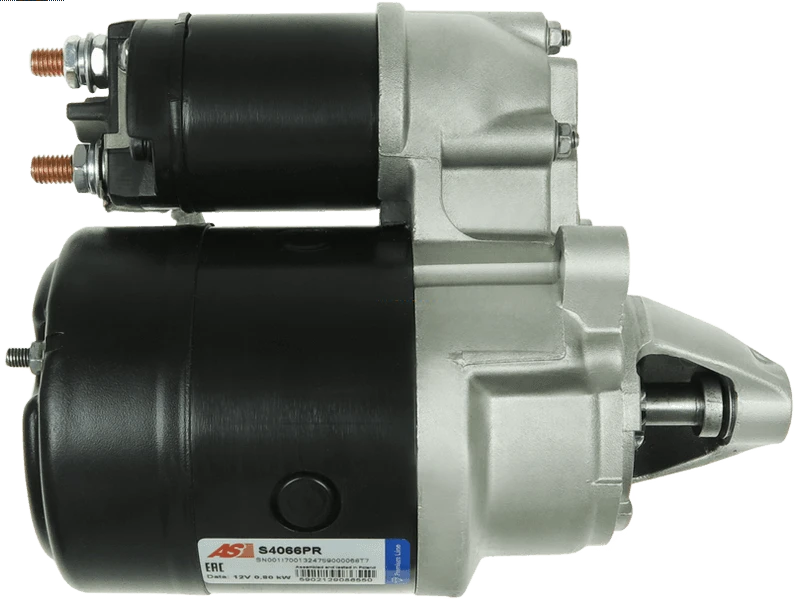

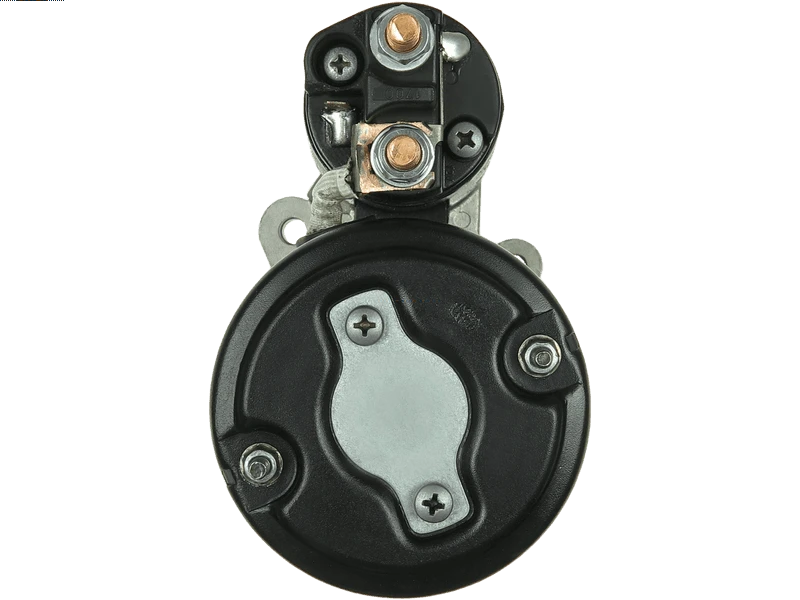

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 167.75 including GST
NZ$ 145.87 excluding GST
or four payments of $41.94
with
Learn More
each
S4066PR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
10963 10963H 20500989 25-2003 3829 458204 46231511 500.514.093 6030180 63221834 71721256 7735162 CS963 CST30180 CST30180AS CST30180ES CST30180GS CST30180OS CST30180RS DRS3777 DS4887 LRT00144 STE0963 STR52012 UNIT BOM 101-262Specifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 195 mm |
| Mount Hole Center - Center (O.1) | 76 mm |
| Mount Hole Center - Center (O.2) | 108.50 mm |
| Mount Hole Center - Center (O.3) | 74.50 mm |
| Mount Hole Diameter (C.1) | 9.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 11 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Uno 1.0 45 | [156A2.048] | 06.1986-12.1993 |
| FIAT | Uno 1.0 45 | [156A2.100] | 06.1986-12.1993 |
| FIAT | Uno 1.1 | [160 A3.000] | 01.1989-09.1995 |
| FIAT | Uno 1.1 | [160A3.000] | 04.1986-06.2006 |
| FIAT | Uno 1.1 60 | [160A3.000] | 04.1989-12.1992 |
| FIAT | Uno 45 1.0 | [156 A2.048] | 06.1986-12.1993 |
| FIAT | Uno 45 1.0 | [156 A2.100] | 06.1986-12.1993 |
| FIAT | Uno 60 1.1 | [160 A3.000] | 04.1989-12.1992 |
| LANCIA | Y10 1.1 i.e. Fire | [156C.046] | 07.1989-09.1995 |
| LANCIA | Y10 1.1 i.e. Fire | [156C.046] | 09.1992-12.1995 |
Reference Information
| 0986019291 | BOSCH |
| 10963 | KUHNER |
| 10963H | KUHNER |
| 20404081RC | REAL |
| 220014 | ERA |
| 220112 | ERA |
| 25-2003 | ELSTOCK |
| 458204 | VALEO |
| 46231511 | FIAT |
| 46548653 | FIAT |
| 46548653 | AUTOBIANCHI |
| 46737560 | FIAT |
| 46740242 | FIAT |
| 46763529 | FIAT |
| 46774417 | FIAT |
| 500.514.093.225 | PSH |
| 55195030 | FIAT |
| 6030180.2 | SANDO |
| 63221834 | MAGNETI MARELLI |
| 71721222 | FIAT |
| 71721256 | FIAT |
| 71782351 | FIAT |
| 71789517 | FIAT |
| 7735162 | FIAT |
| 8EA737109-001 | HELLA |
| CS963 | HC PARTS |
| CST30180RS | CASCO |
| DRS3777 | DELCO |
| DS4887 | DELCO |
| LRT00144 | LUCAS |
| PRSS164 | 3EFFE |
| STE0963 | KRAUF |
| STR52012 | WOODAUTO |
| STR90047 | ELECTROLOG |
| STRS164 | 3EFFE |
| STX200032 | STARDAX |
| STX200032R | STARDAX |
| STX200053 | STARDAX |
| STX200053R | STARDAX |
| STX200057 | STARDAX |
| STX200057R | STARDAX |
| STX200558 | STARDAX |
| UNIT BOM 101-262 | WAI / TRANSPO |
Video/Publications
