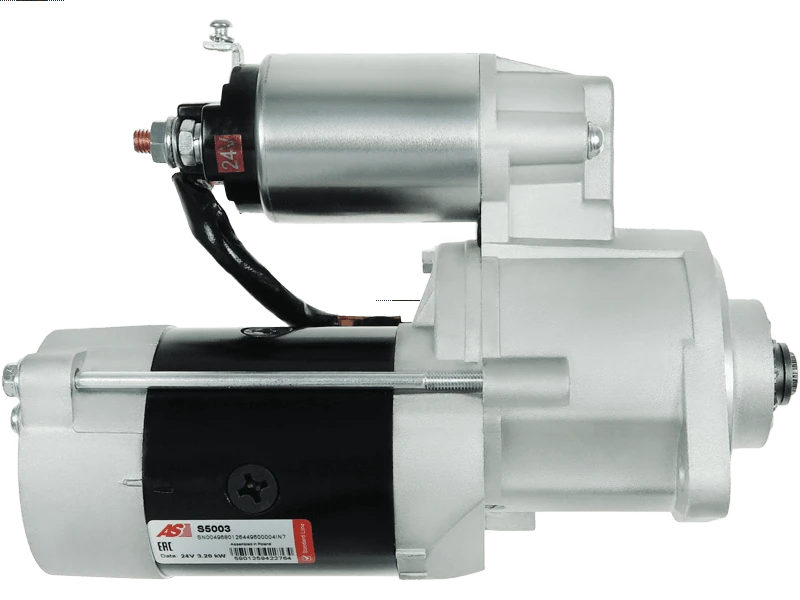

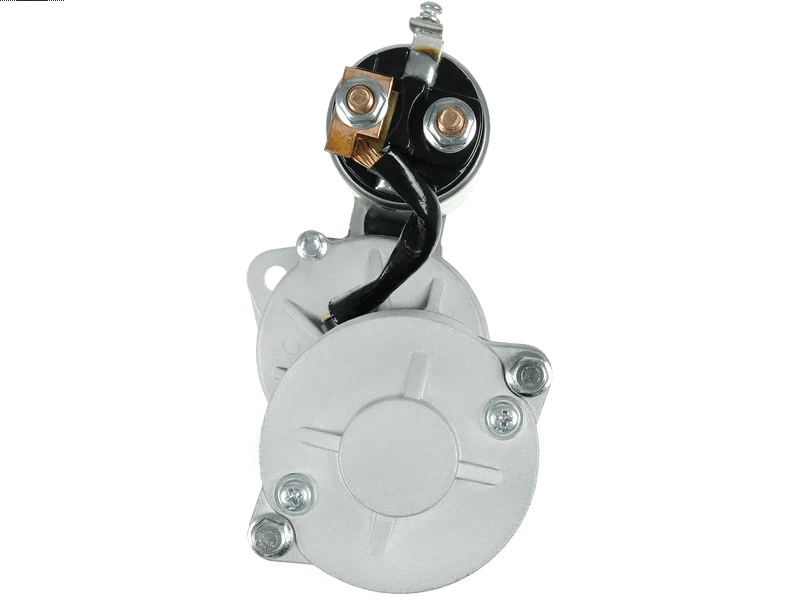

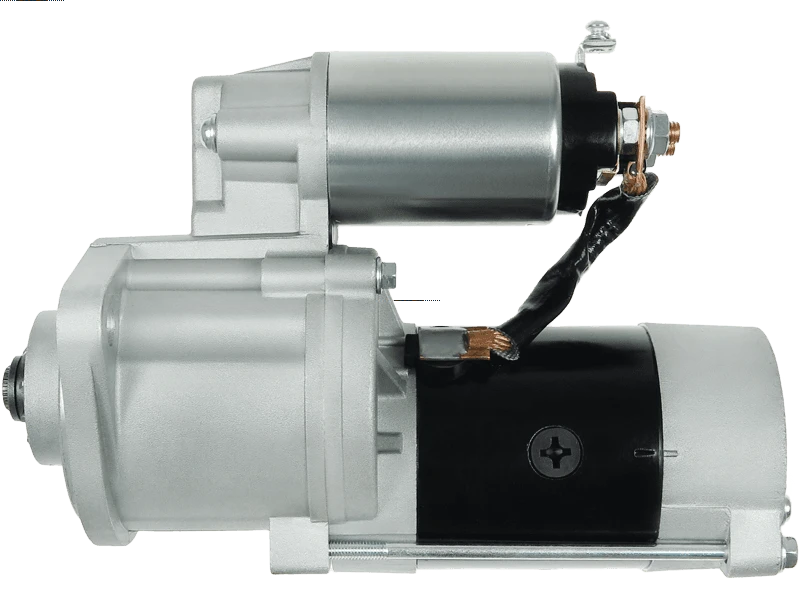

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 322.38 including GST
NZ$ 280.33 excluding GST
or four payments of $80.60
with
Learn More
each
S5003
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
111913 18245N 18245R 20437006BN 20513017 20777 20777V 254367 28.0777 28.0777M 33755 34466-20102 45-1095 6035600 8052515 8213243 8404 8EA732662-001 AEY1842 CST35600AS DRS3284 EAA-121191 JS777 LRS01842 M2T27672 M2T64172 M2T65271 M2T65272 M3T54071 M3T54072 M5T27671 S5003 STR71158Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 250 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 9. 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | FD20 | 01.1983- |
Reference Information
| 111913 | CARGO |
| 18245N | WAI / TRANSPO |
| 18245R | WAI / TRANSPO |
| 20437006BN | REAL |
| 20513017 | PRESTOLITE |
| 20777 | KUHNER |
| 20777V | KUHNER |
| 220195 | ERA |
| 254367 | KUHNER |
| 28.0777 | LAUBER |
| 28.0777M | LAUBER |
| 33755 | EAI |
| 3446603101 | MITSUBISHI |
| 34466-03101 | NISSAN |
| 34466-03101 | MITSUBISHI |
| 3446610103 | MITSUBISHI |
| 34466-10103 | MITSUBISHI |
| 3446615100 | MITSUBISHI |
| 3446615101 | MITSUBISHI |
| 34466-15101 | NISSAN |
| 34466-15101 | MITSUBISHI |
| 3446615102 | MITSUBISHI |
| 34466-15102 | SUZUKI |
| 34466-15102 | HYUNDAI / KIA |
| 34466-15102 | MITSUBISHI |
| 34466-15102 | NISSAN |
| 34466-20102 | NISSAN |
| 3785420 | CLARK |
| 3785426 | CLARK |
| 45-1095 | ELSTOCK |
| 6035600 | SANDO |
| 8052515 | FRIESEN |
| 8213243 | POWERMAX |
| 8404 | CEVAM |
| 8EA732662-001 | HELLA |
| AEY1842 | AUTOELECTRO |
| ANM15504X | ANDEL |
| CGB-23004 | AINDE |
| CST35600AS | CASCO |
| DRS3284 | DELCO |
| F032111913 | CARGO |
| JS777 | HC PARTS |
| LRS01842 | LUCAS |
| LRS1842 | LUCAS |
| M002T27672 | MITSUBISHI |
| M002T65271 | MITSUBISHI |
| M002T65272 | MITSUBISHI |
| M002T65275 | MITSUBISHI |
| M003T54071 | MITSUBISHI |
| M003T54072 | MITSUBISHI |
| M005T27671 | MITSUBISHI |
| M2T27672 | MITSUBISHI |
| M2T65271 | MITSUBISHI |
| M2T65272 | MITSUBISHI |
| M2T65275 | MITSUBISHI |
| M3T54071 | MITSUBISHI |
| M3T54072 | MITSUBISHI |
| M5T27671 | MITSUBISHI |
| MAV6100 | SIOM |
| PTC-4073 | POWER TRUCK |
| S24MH0032A2 | SIDAT |
| S5003 | AS-PL |
| STR5031 | ELECTROLOG |
| STR71158 | WOODAUTO |
| STRS138 | 3EFFE |
Video/Publications
