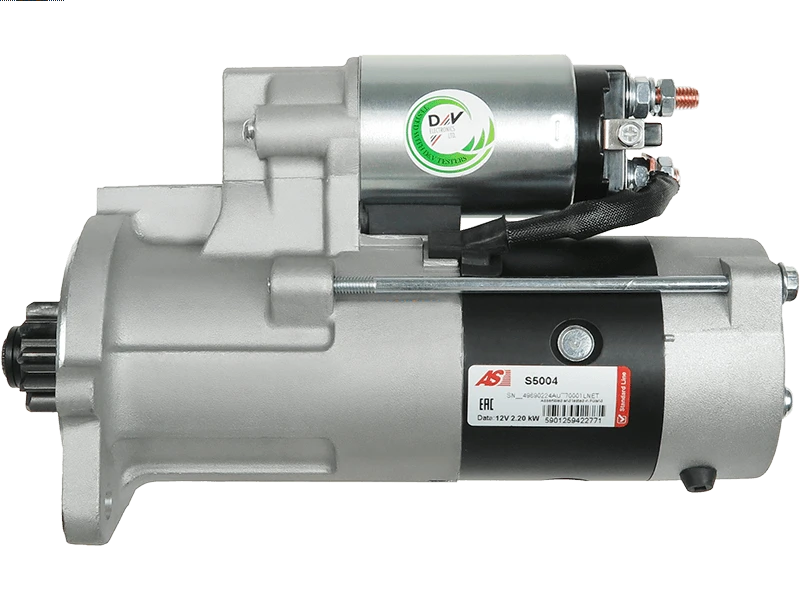

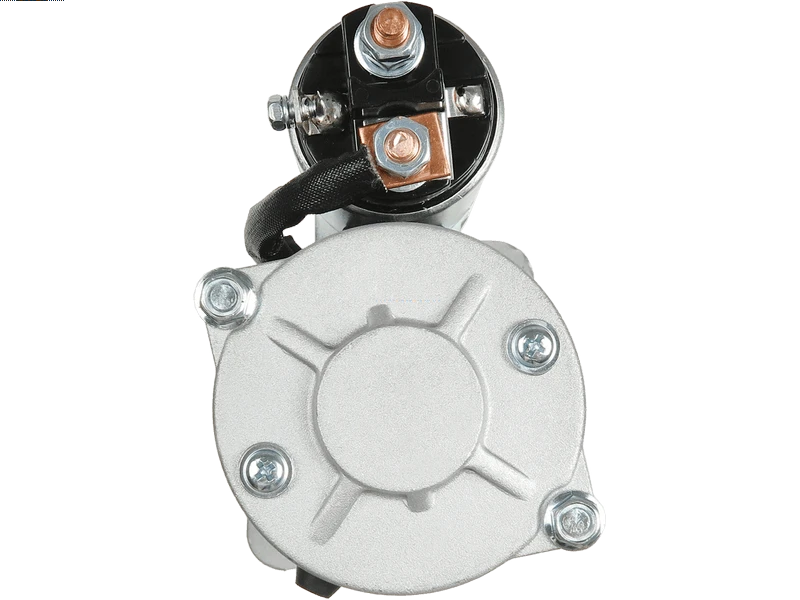

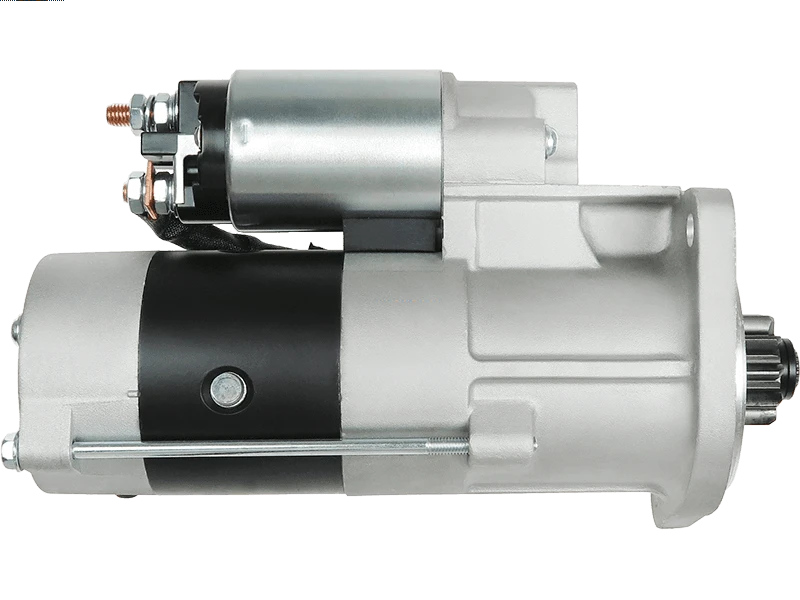

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 331.44 including GST
NZ$ 288.21 excluding GST
or four payments of $82.86
with
Learn More
each
S5194
S5004
1
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Associated Numbers
111272 18394N 201009 201009M 20437161BN 20437161OE 20513067 22.1009 25-3389 32A66-10100 32A66-10101 32A66-20601 6035123 6035161 8088 AEY1468 CST35123 CST35123AS CST35123ES CST35123GS CST35123OS CST35123RS CST35161 CST35161AS CST35161ES CST35161GS CST35161OS CST35161RS EAA-121082 JS1009 LRS02218 M002T62271 M002T62272 M002T74371 M008T71571 M008T75171 M2T62271 M2T62272 M2T74371 M8T71571 M8T75171 RNL956CS S5004 STM9009 UD15038S SNJ085 mxs233 M8T75171AMASpecifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 258 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Engine | [S4S] | |
| MITSUBISHI | Engine | [S6S] | |
| MITSUBISHI | FG20 | 01.1980-12.1987 |
Alternatives >>>
S5194 OSGR Style
Reference Information
| 011-001-000803R | REMANTE |
| 0986024300 | BOSCH |
| 10035161AV | ITAB AUTOMOTIVE |
| 10035161OV | ITAB AUTOMOTIVE |
| 1039827 | CATERPILLAR |
| 10440477 | ALANKO |
| 107128 | FARCOM |
| 111272 | CARGO |
| 11.139.285 | ISKRA / LETRIKA |
| 150.523.102.130 | PSH |
| 150.523.102.138 | PSH |
| 150.523.102.310 | PSH |
| 150.523.102.360 | PSH |
| 150.523.102.370 | PSH |
| 150.523.102.371 | PSH |
| 150.523.102.373 | PSH |
| 18394N | WAI / TRANSPO |
| 201009 | KUHNER |
| 201009M | KUHNER |
| 20437161BN | REAL |
| 20437161OE | REAL |
| 25-3389 | ELSTOCK |
| 2803784 | CATERPILLAR |
| 2S0474 | RIDEX |
| 3111893 | HENKEL PARTS |
| 32A66-00100 | MITSUBISHI |
| 32A66-00600 | MITSUBISHI |
| 32A66-01100 | MITSUBISHI |
| 32A66-10100 | MITSUBISHI |
| 32A66-10101 | MITSUBISHI |
| 32A66-10300 | MITSUBISHI |
| 32A66-11100 | MITSUBISHI |
| 32A66-20100 | MITSUBISHI |
| 32A66-20601 | MITSUBISHI |
| 32C66-01200 | MITSUBISHI |
| 335859 | LOGISTIK |
| 3664545M2 | LANDINI |
| 6035161.0 | SANDO |
| 6035161.1 | SANDO |
| 626039102 | DRI |
| 72555951 | MAHLE |
| 8088 | CEVAM |
| 88212874 | POWERMAX |
| 91-27-3302 | WILSON |
| 91-27-3302N | WILSON |
| 920670 | CLARK |
| A90720 | ATL AUTOTECHNIK |
| AEY1468 | AUTOELECTRO |
| AZD2618 | ISKRA / LETRIKA |
| CST35161AS | CASCO |
| CST35161GS | CASCO |
| DEM601009 | ADI |
| DRS0965 | DELCO |
| F032111272 | CARGO |
| IS9571 | ISKRA / LETRIKA |
| JS1009 | HC PARTS |
| LES0208 | LE PART |
| LRS02218 | LUCAS |
| LRS2218 | LUCAS |
| M002T74371 | MITSUBISHI |
| M002TS0071 | MITSUBISHI |
| M008T70371 | MITSUBISHI |
| M008T71571 | MITSUBISHI |
| M008T75171 | MITSUBISHI |
| M008T75172 | MITSUBISHI |
| M008T75181 | MITSUBISHI |
| M2T74371 | MITSUBISHI |
| M2TS0071 | MITSUBISHI |
| M8T50271 | MITSUBISHI |
| M8T70371 | MITSUBISHI |
| M8T71571 | MITSUBISHI |
| M8T75171 | MITSUBISHI |
| M8T75172 | MITSUBISHI |
| M8T75181 | MITSUBISHI |
| MAV371610 | SIOM |
| MAV371610A | SIOM |
| MS1153 | MAHLE |
| S5004 | AS-PL |
| S511257 | BTS TURBO |
| S-71240 | DTS |
| SG0318 | GHIBAUDI |
| SKSTR-0330499 | STARK |
| SMI161 | AUTOTEAM |
| SMI161A | AUTOTEAM |
| ST01428 | TMI |
| STM1009 | KRAUF |
| STR5114 | ELECTROLOG |
| STR5531 | ELECTROLOG |
| STR71240 | WOODAUTO |
| STR7314 | 3EFFE |
| STRS894 | 3EFFE |
| STX200321R | STARDAX |
| TT15926 | TESLA TECHNICS |
| UD15038S | AS-PL |
| WG2196736 | WILMINK GROUP |
| WOOSTR71240 | WOODAUTO |
Video/Publications
