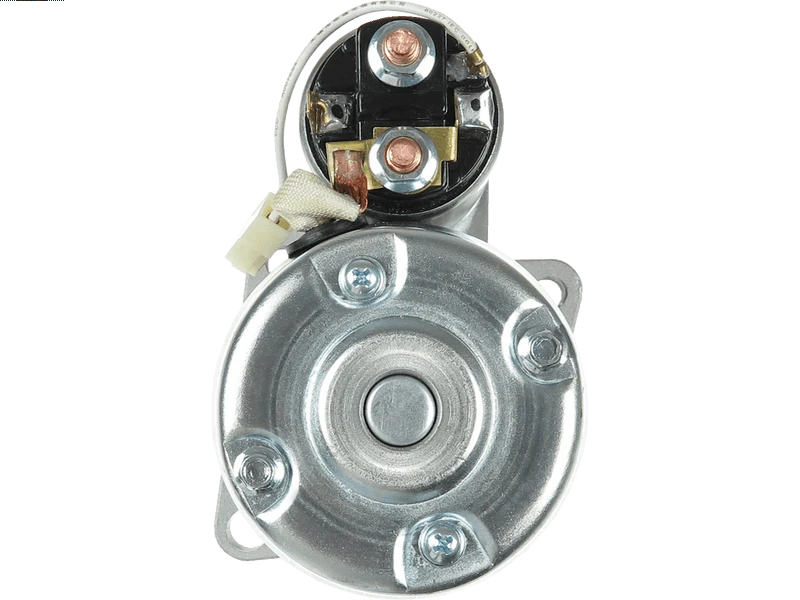

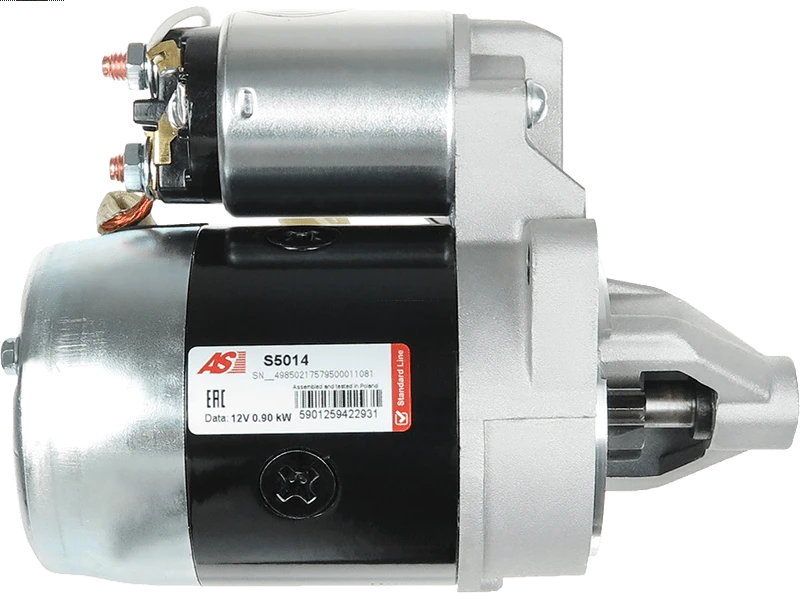

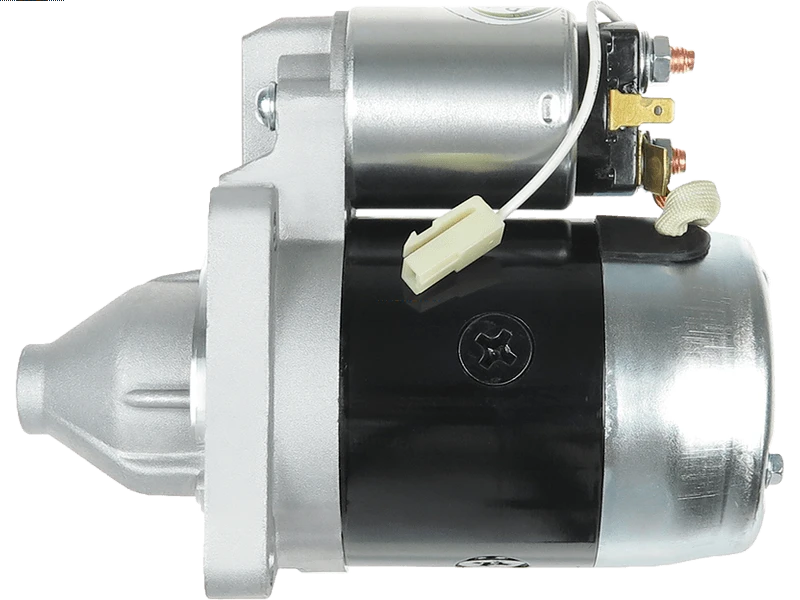

S5014 - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	190 mm
Mount Hole Center - Center (O.1)	78.5 mm
Mount Hole Center - Center (O.2)	110.5 mm
Mount Hole Center - Center (O.3)	78 mm
Mount Hole Diameter (C.1)	M10x1.75 mm
Mount Hole Diameter (C.2)	11.5 mm
Mount Hole Diameter (C.3)	M10x1.75 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	8 qty
No./Teeth (Replaces)	8 qty
Pinion at Rest (B)	16 mm
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	323 1.1	[E1]	11.1980-06.1991
MAZDA	323 1.3	[E3]	09.1981-10.1985
MAZDA	323 1.5	[E5]	06.1980-07.1985
MAZDA	323 1.5	[E5(OHC)]	06.1980-07.1985
MAZDA	323 1.5 16V	[ZL]	09.1998-01.2001
MAZDA	626 1.6	[F6]	11.1982-06.1987
MAZDA	626 1.6	[F68]	06.1987-05.1992
MAZDA	626 1.6	[NA]	06.1987-05.1992
MAZDA	626 2.0	[FE]	01.1985-09.1987
MAZDA	626 2.0	[MA]	11.1986-09.1987
MAZDA	929 2.0	[FE]	03.1984-07.1987
MAZDA	929 2.0 i	[FE]	10.1984-12.1988
MAZDA	929 2.0 i GLX	[FE]	10.1984-07.1987
MAZDA	B 2000 2.0		01.1985-12.1991
MAZDA	E 2000 2.0	[FE18]	05.1985-04.1989
MAZDA	E 2000 2.0	[FE58]	05.1985-04.1989
MAZDA	E 2000 2.0	[FEV4]	11.1984-02.1988
MAZDA	E 2000 2.0 4WD	[FEBN]	10.1988-09.1989

Reference Information

110149 220118 M003T38882B AA30G-18-400 M003T24486 M3T33587 M3T38881A LRS624 MB35918400A M003T24487 M3T33588 B67618400B M3T33585 M3T33586 M003T24485 MC109021 FA0518400C M3T33583 F601-18-400L M3T33581 M003T24488 M3T38881C M3T33582 F05-18-400 FA05-18-400 MAV371330 B67618400A M3T49381 F601-18-400A F8B118400C ANM14491X F8B118400B F8B118400A 455582 B63018400R M3T24882 M003T24482 F601-18-400-9R M003T24483 F601-18-400B M003T24481 B6DK-18-400 E30118400LA FEO518400A FEO518400B FEO518400C B6S8-18-400 FE5018400E FE5018400D M3T33582A FE5018400C M003T24486A 25-0395 CST35130GS FE5018400B FE5018400A 986014991 PE24731100 8212715 B30318400A E357-18-400 M003T38881 M3T49481 M003T38882 F802-18-400B F802-18-400A F80218400A M003T38885 F80218400B M003T38883 M003T38884 B658-18-400 B6S818400A M003T33586A M003T33586D M3T24482A M3T24482J M3T24482K M3T24482L 220126 M003T49781 M3T24482H 20325 B676-18-400 1516946R M003T24486H B31518400 S5014 M003T39981 140.009.083.901 B6S8-18-400A 8052303 OK90018400 E30118400L F805-18-400B M3T34082 8EA726421-001 F805-18-400A OK90018400B FE79-18-400 F80518400A FE1J18400A F80518400B M3T49585 9658 M003T30285 M003T30286 M3T49581 455665 B50518400 M003T30281 M003T30282 E301-18-400B E301-18-400A 3M193 22.5325 11273 F805-18-400 M003T49481 F24018400 LRS557 M3T30285 B676-18-400A CST35128OS M3T30286 B676-18-400B 986014981 M3T30281 140.009.083.360 M3T30282 140.009.083.000 140.009.083.365 FEO518400 F80218400 CGB-23501 000986013511 MAV371280 E35618400B FE5A-18-400A B315-18-400 E35618400L VS230 140.009.083.130 E301-18-400L 986013501 M003T33582A M3T24486A M003T34082 000986014991 LRS00557 STRW262 M3T24486H 20640 3M179 M003T49581 F802-18-400 M003T49585 B67618400 986013511 FE1J18400 000986014981 3M162 B35918400 B61P-18-400 OK240-18400 M3T38881 FE1J-18-400 M3T38882 F240-18-400A FE1J-18-400A F240-18-400B B63018400 FE0518400A FE0518400B FE0518400C B303-18-400 M003T24882 B303-18-400A MTD212 228000-3380 361002Y100 M3T24481 M3T24482 228000-3381 M3T24483 455506 F850-18-400A M3T49781 F850-18-400E B65818400 FE5A-18-400 F850-18-400D CST35130AS F850-18-400C F601-18-400 F850-18-400B VS219 M3T24482HC MAV371290 M003T36882 M003T36881 M3T39981 9000692069 M3T24485 M3T24486 FE5A18400 M3T24487 3D212 FE05-18-400Z M3T24488 F05-18-400A B35918400A 66925114 0K24118400C 2AAA-18-063 2AAA-18063 M003T33588 M3T38883 M003T33587 M3T38884 CGB-24991 M003T33586 M3T38885 M003T33585 M003T39481 M003T33583 M003T33582 M003T33581 FE05-18-400C FE05-18-400B FE05-18-400A CST35128AS CST35130OS FE50-18-400A FE50-18-400B FE50-18-400C FE50-18-400D FE50-18-400E MTM162 25-2057 6035130 88212715 CST35128RS E356-18-400 000986013501 B505-18-400 STM1058 M003T32282 E301-18-400LA M003T32281 E35718400 F8B1-18-400B F8B1-18-400C OK24118400 ME110JA M003T49381 003-D212 F8B1-18-400A M3T21874 FE05-18-400 E301-18-400 F24018400B F24018400A 6035128 LRS00624 B630-18-400A STR71024 M003T33282 66925160 M003Y24482 EAA-121379 M3T24432 003-M162 CST35130ES 986012271 F240-18-400 000986012271 F210-18-400A CST35130 DRS2271 2AAA18063 M3T39385 MTM179 M3T33282 B31518400A F60118400L M3Y24482 16839R 22.5325M B31518400B AES5157 M003T24432 AES6124 F850-18-400 E35618400 CST35128GS 0009000692069 66925181 B630-18-400 003-M179 MAV6060 M3T32282 M3T32281 0K241-18-400C 455609 455606 M003T21874 FE50-18-400 M003T24482HC B315-18-400B M3T39481 M003T38881A CST35128 16708N M003T38881C 26-0395 F85018400D M003T38881B B315-18-400A E85018400 CST35130RS F806-18-400 MTM193 003-M193 B6S818400 M003T24482A JS325 1516978R FA05-18-400C M3T33586D M3T36882 M3T33586A M3T36881 M003T24482H CST35128ES FA05-18-400B M003T24482L M003T24482J M003T39385 M003T24482K

Video/Publications

003-D212 003-M162 003-M179 003-M193 0986012271 0986013501 0986013511 0986014981 0986014991 110149 11273 16708N 20325 20640 22.5325 22.5325M 228000-3380 228000-3381 25-0395 25-2057 26-0395 3D212 3M162 3M179 3M193 455506 455582 455606 455609 455665 6035128 6035130 66925114 66925160 66925181 8052303 8212715 88212715 8EA726421-001 9000692069 9658 AES5157 AES6124 B630-18-400A B6DK-18-400 CGB-23501 CGB-24991 CST35128 CST35128AS CST35128ES CST35128GS CST35128OS CST35128RS CST35130 CST35130AS CST35130ES CST35130GS CST35130OS CST35130RS DRS2271 E301-18-400 E301-18-400A E301-18-400B EAA-121379 F05-18-400 F05-18-400A F601-18-400 F601-18-400-9R F601-18-400A F601-18-400B F805-18-400 F806-18-400 F850-18-400 F850-18-400A F850-18-400B F850-18-400C F850-18-400E FA05-18-400 FE05-18-400 FE50-18-400 FE79-18-400 JS325 LRS00557 LRS00624 LRS557 LRS624 M3T24481 M3T24482 M3T24482A M3T24485 M3T24486 M3T24486A M3T30281 M3T30282 M3T30285 M3T30286 M3T33581 M3T33582 M3T33582A M3T33586 M3T33586A MAV371280 MAV371290 MAV371330 MAV6060 ME110JA MTD212 MTM162 MTM179 MTM193 S5014 STR71024 STRW262 VS219 VS230 220118 220126
