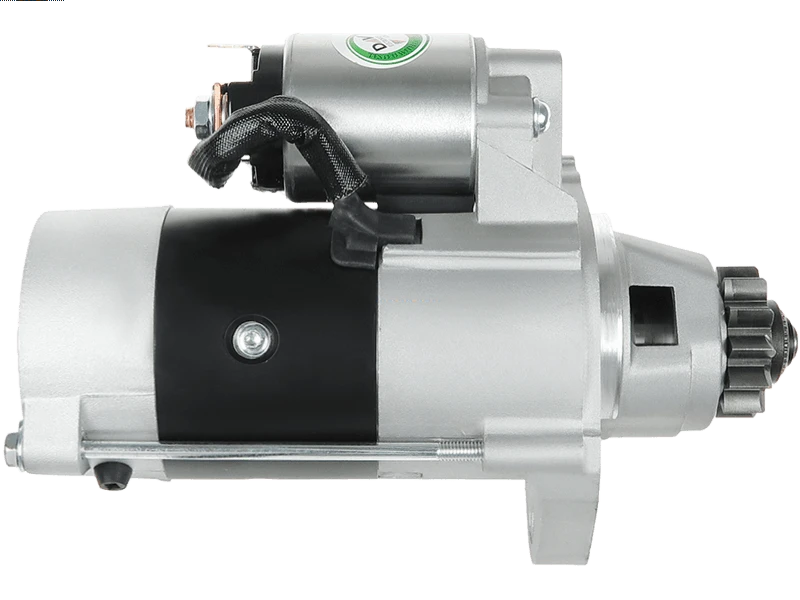

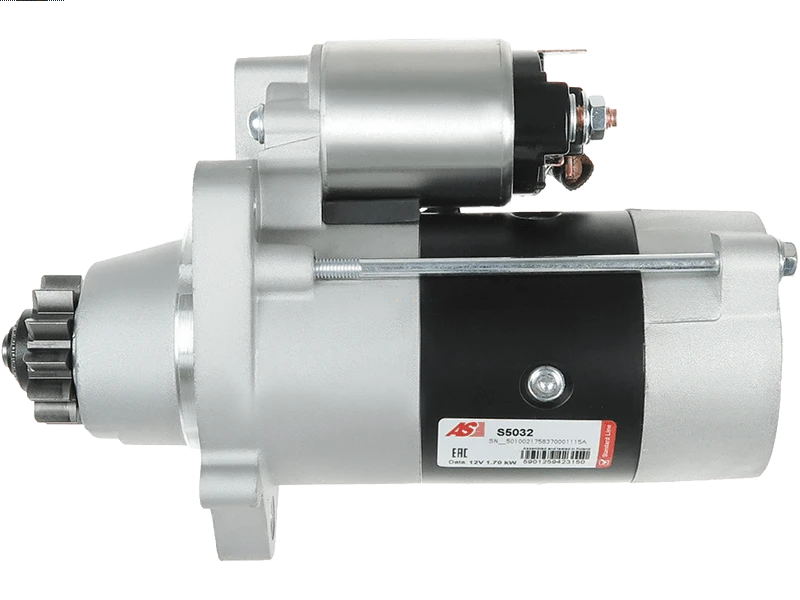

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 384.81 including GST
NZ$ 334.62 excluding GST
or four payments of $96.20
with
Learn More
each
S5032
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M8T71471Associated Numbers
12028 201295 20437741BN 20437741OE 22.1295 22.1295M 23300-8H601 23300-8H801 23300-8H80A 23300-AU601 25-3213 32699N 32699R 6035147 8052189 8212419 88212419 8EA738034-001 9583 AET1295 CST35147AS CST35147GS DRS3916 EAA-121214 JS1295 LRS01667 M8T71471 M8T71471ZE S5032 SS205 STR71046Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 234 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 54 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Almera 2.2 dCi | (N16E)[YD22DDT] | 02.2003- |
| NISSAN | Almera 2.2 dCi | (N16)[YD22DDT] | 02.2003- |
| NISSAN | Almera Tino 2.2 dCi | (V10)[YD22DDT] | 07.2004- |
| NISSAN | Primera 2.2 dCi | (P12)[YD22DDT] | 01.2003- |
| NISSAN | Primera 2.2 dCi | (WP12)[YD22DDT] | 01.2003- |
| NISSAN | Primera 2.2 Diesel Di | (P12)[YD22DDT] | 03.2002- |
| NISSAN | Primera 2.2 Diesel Di | (WP12)[YD22DDT] | 03.2002- |
| NISSAN | X-Trail 2.0 dCi | (T30)[YD22DDTI] | 12.2003- |
| NISSAN | X-Trail 2.0 dCi | (T31) | 06.2007- |
| NISSAN | X-Trail 2.2 dCi 4WD | (T30)[YD22DDTI] | 12.2003- |
| NISSAN | X-Trail 2.2 Di 4WD | (T30)[YD22DDTi] | 07.2001- |
| NISSAN | X-Trail 2.2 Di 4WD | (T30)[YD22ETI] | 07.2001- |
Reference Information
| 003-D220 | ASHIKA |
| 113323 | CARGO |
| 12028 | EAI |
| 201295 | KUHNER |
| 20437741BN | REAL |
| 20437741OE | REAL |
| 220464 | ERA |
| 22.1295 | LAUBER |
| 22.1295M | LAUBER |
| 223200 | CQ |
| 23300-8H601 | NISSAN |
| 23300-8H801 | NISSAN |
| 233008H801RE | NISSAN |
| 23300-8H801RE | NISSAN |
| 23300-8H80A | NISSAN |
| 233008H80ARE | NISSAN |
| 23300-8H80ARE | NISSAN |
| 23300AU600 | NISSAN |
| 23300-AU600 | NISSAN |
| 23300-AU601 | NISSAN |
| 25-3213 | ELSTOCK |
| 32699N | WAI / TRANSPO |
| 32699R | WAI / TRANSPO |
| 336145 | LOGISTIK |
| 3D220 | JAPKO |
| 458667 | VALEO |
| 5035229 | MEAT & DORIA |
| 600000169030 | MAGNETI MARELLI |
| 6035147 | SANDO |
| 60351470 | SANDO |
| 8052189 | FRIESEN |
| 8212419 | POWERMAX |
| 88212419 | POWERMAX |
| 8EA738034-001 | HELLA |
| 943212951010 | MAGNETI MARELLI |
| 944280521890 | MAGNETI MARELLI |
| 9583 | CEVAM |
| AET1295 | AUTOELECTRO |
| ANM16136X | ANDEL |
| CGB-23916 | AINDE |
| CQ2010942 | CQ |
| CST35147AS | CASCO |
| CST35147GS | CASCO |
| DRS3916 | DELCO |
| F032113323 | CARGO |
| JS1295 | HC PARTS |
| LRS01667 | LUCAS |
| LRS1667 | LUCAS |
| M008T71471 | MITSUBISHI |
| M008T71471ZE | MITSUBISHI |
| M8T71471 | MITSUBISHI |
| M8T71471ZE | MITSUBISHI |
| MAV371470 | SIOM |
| MTD220 | JAPANPARTS |
| RNL1295JS | RNL |
| S12MH0333A2 | SIDAT |
| S5032 | AS-PL |
| SS205 | SOVEREIGN |
| STR5108 | ELECTROLOG |
| STR71046 | WOODAUTO |
| STRL229 | 3EFFE |
| STX200157 | STARDAX |
Video/Publications
