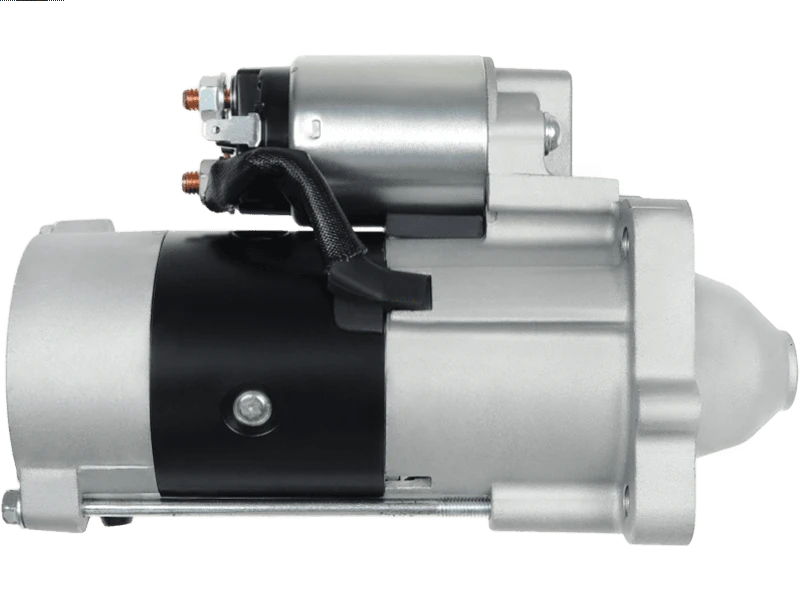

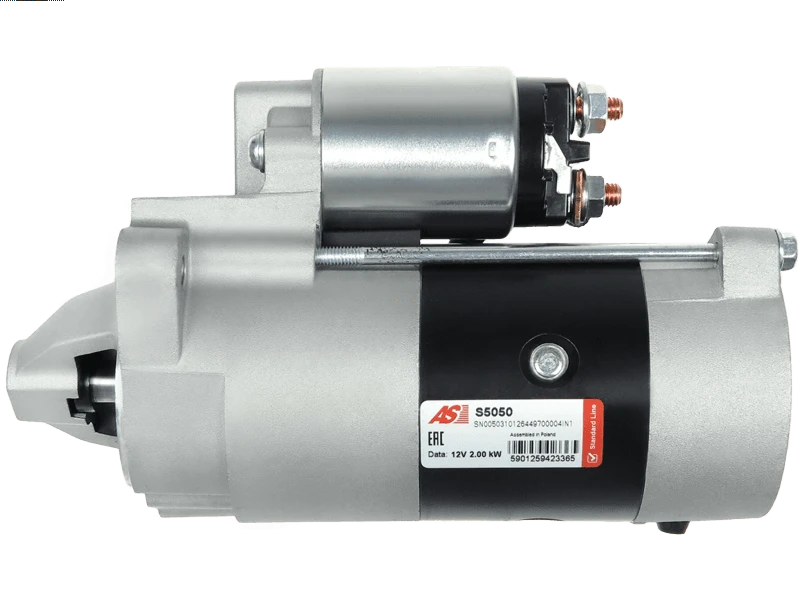

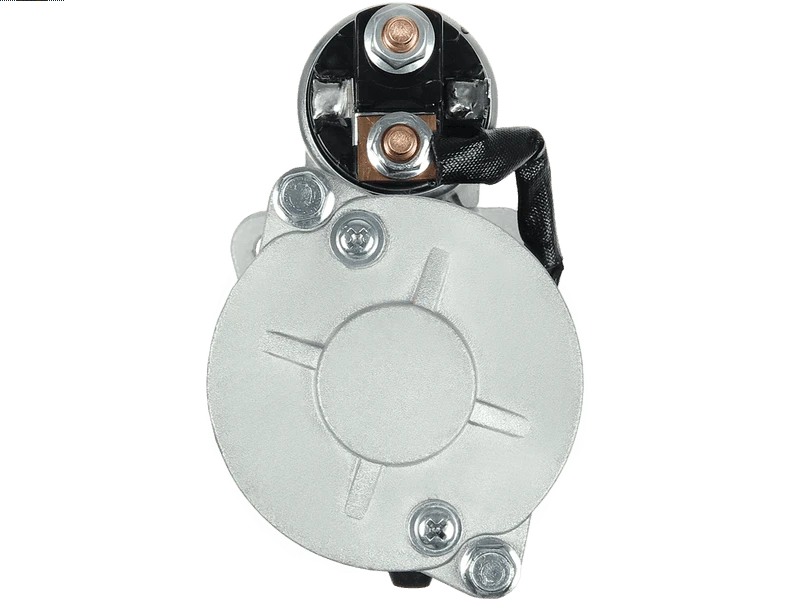

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 447.97 including GST
NZ$ 389.54 excluding GST
or four payments of $111.99
with
Learn More
each
S5050
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M2T85271Associated Numbers
101444 101444M 12030 20437191BN 20437191OE 22.1444 25-3271 31100-68D00 31333N 6035191 8080295 8213175 88213175 9765 AEY1716 CS1444 CST35191 CST35191AS CST35191ES CST35191GS CST35191OS CST35191RS DRS3984 EAA-121122 LRS01716 M002T85271 M2T85271 S5050 SS526 STR71206Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 228 mm |
| Mount Hole Center - Center (O.1) | 100 mm |
| Mount Hole Center - Center (O.2) | 71 mm |
| Mount Hole Center - Center (O.3) | 71 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 3 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Grand Vitara 2.0 HDi | [RHW] | 11.2000-12.2005 |
| SUZUKI | Grand Vitara 2.0 HDi | [RHZ] | 11.2000-12.2005 |
Reference Information
| 003-Z265 | ASHIKA |
| 101444 | KUHNER |
| 101444M | KUHNER |
| 114061 | CARGO |
| 12030 | EAI |
| 180.505.103.130 | PSH |
| 180.505.103.138 | PSH |
| 180.505.103.370 | PSH |
| 180.505.103.785 | PSH |
| 20437191BN | REAL |
| 20437191OE | REAL |
| 22.1444 | LAUBER |
| 25-3271 | ELSTOCK |
| 2Z265 | JAPKO |
| 31100-68D00 | SUZUKI |
| 31333N | WAI / TRANSPO |
| 336542 | LOGISTIK |
| 5035245 | MEAT & DORIA |
| 6035191 | SANDO |
| 8080295 | FRIESEN |
| 8213175 | POWERMAX |
| 88213175 | POWERMAX |
| 9765 | CEVAM |
| AEY1716 | AUTOELECTRO |
| ANM16204X | ANDEL |
| ASM1594 | APEC |
| CS1444 | HC PARTS |
| CST35191 | CASCO |
| CST35191AS | CASCO |
| CST35191ES | CASCO |
| CST35191GS | CASCO |
| CST35191OS | CASCO |
| CST35191RS | CASCO |
| DRS3984 | DELCO |
| F032114061 | CARGO |
| LRS01716 | LUCAS |
| LRS1716 | LUCAS |
| M002T85271 | MITSUBISHI |
| M2T85271 | MITSUBISHI |
| MAV371910 | SIOM |
| MTZ265 | JAPANPARTS |
| NPANSM1594 | NAPA |
| RNLM2T85271 | RNL |
| S12MH0165 | SIDAT |
| S12MH0165A2 | SIDAT |
| S130.943 | PSH |
| S145.638 | PSH |
| S5050 | AS-PL |
| SS526 | SOVEREIGN |
| STR5287 | ELECTROLOG |
| STR71206 | WOODAUTO |
| STRS309 | 3EFFE |
| STX200584 | STARDAX |
| STX200584R | STARDAX |
