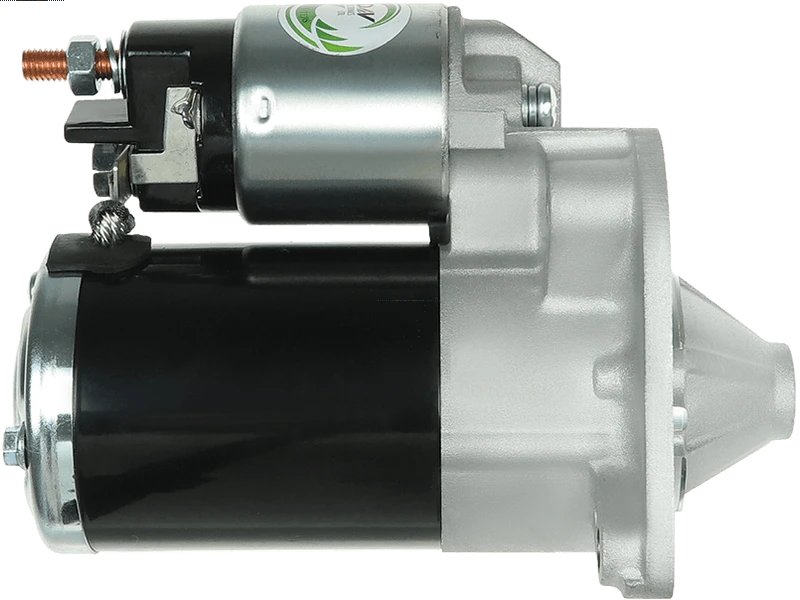

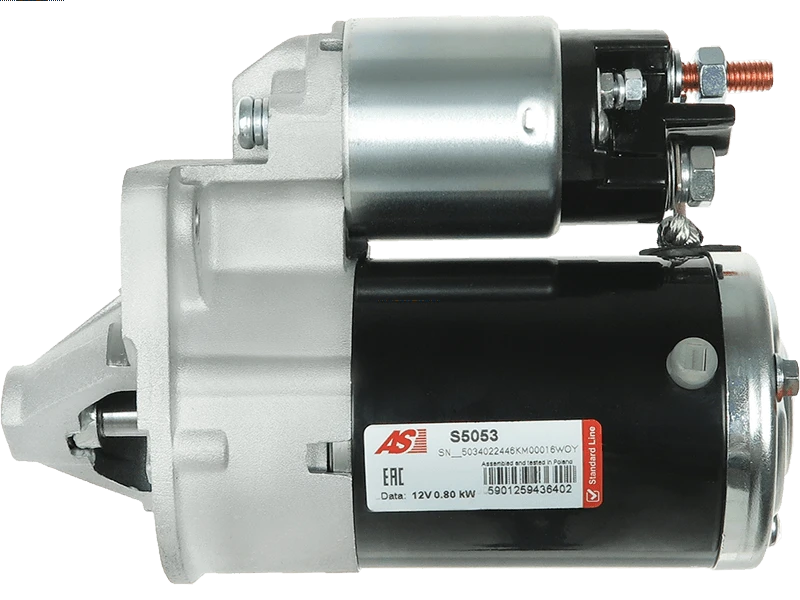

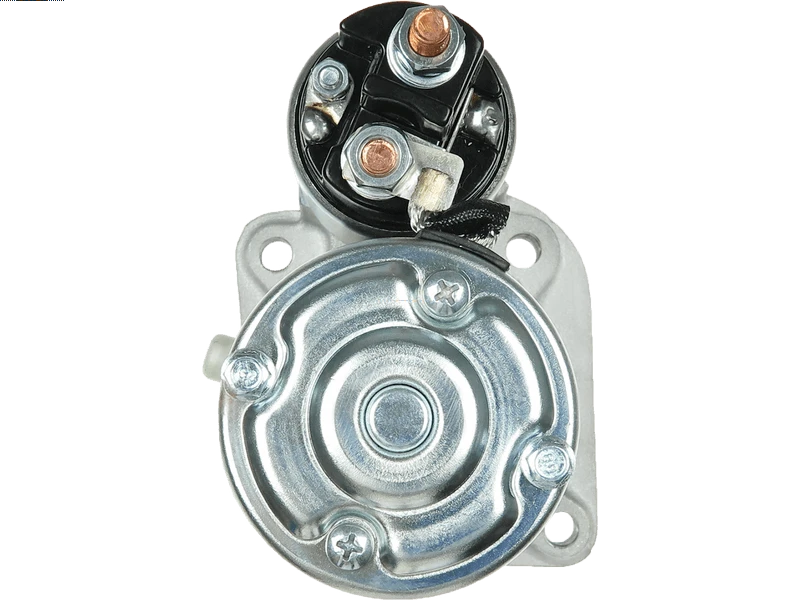

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 218.07 including GST
NZ$ 189.63 excluding GST
or four payments of $54.52
with
Learn More
each
S5053
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T45171Associated Numbers
101442 11986 20437072OE 25-3482 42455950 570.554.083 6001549062 6035270 8080183 8200240487 8200584664 AEU1442 CS1442 CST35270 CST35270AS CST35270ES CST35270GS CST35270OS CST35270RS LRS02310 M000T45171 M000T45171ZT M0T45171 M0T45171ZT STR71164Specifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 177 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Center - Center (O.2) | 73 mm |
| Mount Hole Center - Center (O.3) | 64 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | -2 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DACIA | Logan 1.4 | [K7J710] | 02.2007- |
| DACIA | Logan 1.4 Express | [K7J710] | 03.2009- |
| DACIA | Logan 1.4 i | [K7J710] | 09.2004- |
| DACIA | Logan 1.6 | [K7M710] | 02.2007- |
| DACIA | Logan 1.6 Express | [K7M710] | 03.2009- |
| DACIA | Logan 1.6 i | [K7M710] | 09.2004- |
| DACIA | Sandero 1.4 | [K7J710] | 06.2008- |
| DACIA | Sandero 1.6 | [K7M710] | 06.2008- |
| RENAULT | Kangoo 1.6 | [K7M750] | 02.2008- |
| RENAULT | Kangoo 1.6 Express | [K7M750] | 02.2008- |
Reference Information
| 101442 | KUHNER |
| 114180 | CARGO |
| 11986 | EAI |
| 20437072OE | REAL |
| 220668 | ERA |
| 25-3482 | ELSTOCK |
| 30854113 | VOLVO |
| 332171 | LOGISTIK |
| 33310N | WAI / TRANSPO |
| 42455950 | HERTH+BUSS |
| 5035786 | MEAT & DORIA |
| 570.554.083 | PSH |
| 570.554.083.138 | PSH |
| 570.554.083.461 | PSH |
| 6001549062 | RENAULT |
| 6035270 | SANDO |
| 7711368052 | DACIA |
| 7711368052 | RENAULT |
| 8080183 | FRIESEN |
| 8200240487 | RENAULT |
| 8200584664 | RENAULT |
| AEU1442 | AUTOELECTRO |
| CS1442 | HC PARTS |
| CST35270 | CASCO |
| CST35270AS | CASCO |
| CST35270ES | CASCO |
| CST35270GS | CASCO |
| CST35270OS | CASCO |
| CST35270RS | CASCO |
| F032114180 | CARGO |
| LRS02310 | LUCAS |
| LRS2310 | LUCAS |
| M000T45171 | MITSUBISHI |
| M000T45171AM | MITSUBISHI |
| M000T45171ZT | MITSUBISHI |
| M002T13582 | MITSUBISHI |
| M002T13582ZT | MITSUBISHI |
| M0T45171 | MITSUBISHI |
| M0T45171AM | MITSUBISHI |
| M0T45171ZT | MITSUBISHI |
| M2T13582 | MITSUBISHI |
| M2T13582ZT | MITSUBISHI |
| PRSF220 | 3EFFE |
| S12MH0687 | SIDAT |
| S12MH0687A2 | SIDAT |
| S5053 | AS-PL |
| STR0051B | ELECTROLOG |
| STR71164 | WOODAUTO |
| STRF220 | 3EFFE |
| STX200583 | STARDAX |
| STX200991 | STARDAX |
| SX 2195 | STARLINE |
Video/Publications
