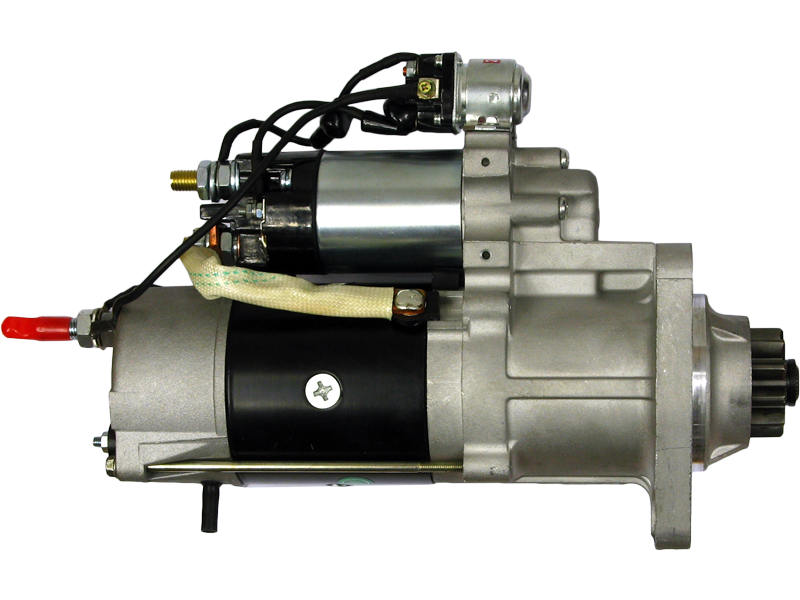

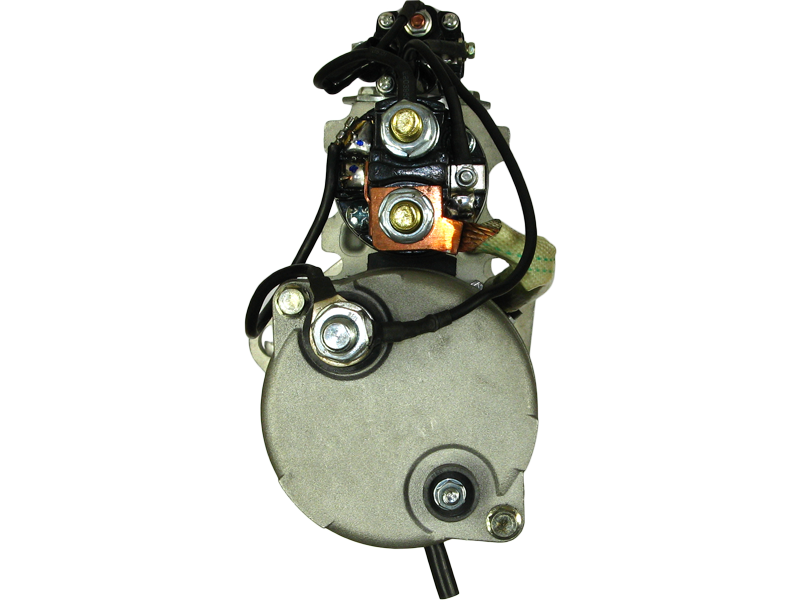

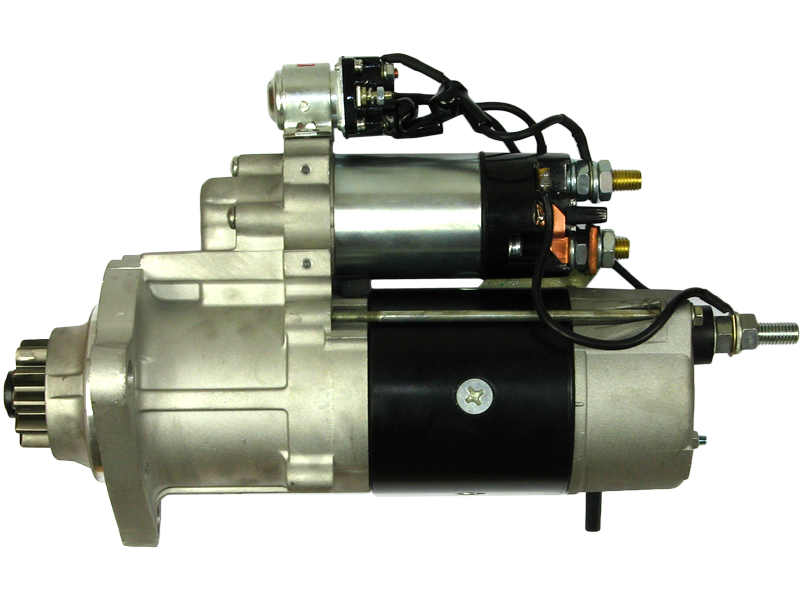

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 935.94 including GST
NZ$ 813.86 excluding GST
or four payments of $233.99
with
Learn More
each
S5067
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M9T82479Associated Numbers
114331 147923 19535N 19535R 20409216OE 254589 254589P 254664 254664P 254759 254759D 254759P 254887D 254887P 255385 255385D 255385M 255385P 3103305 3103916 3103952 3899973 6060612 61003202 8200009 8200321 8200330 8200699 8200720 8300016 91-27-3306 91-27-3306N CST60612GS M009T82471 M009T82479 M105R3502SE M105R3508SE M105R3532SE M9T82471 M9T82479 S-80131 SG0211 ST2001 ST2018 ST7029 ST8007 ST8018 STD4331 STM4331 STR71223Specifications
| Kilowatt | 8.30 kW |
| Length (L.1) | 406 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 17.50 mm |
| Mount Hole Diameter (C.2) | 17.50 mm |
| Mount Hole Diameter (C.3) | 17.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Various Models | 01.1987- |
Reference Information
| 114331 | CARGO |
| 147923 | CUMMINS |
| 19535N | WAI / TRANSPO |
| 19535R | WAI / TRANSPO |
| 20409216OE | REAL |
| 254589 | KUHNER |
| 254589P | KUHNER |
| 254759 | KUHNER |
| 254759D | KUHNER |
| 254759P | KUHNER |
| 254887D | KUHNER |
| 254887P | KUHNER |
| 3102765 | CUMMINS |
| 3103952 | CUMMINS |
| 3899973 | CUMMINS |
| 3T3152 | CATERPILLAR |
| 6060612 | SANDO |
| 61003202 | DELCO |
| 8200009 | DELCO |
| 8200321 | DELCO |
| 8200699 | DELCO |
| 8200720 | DELCO |
| 8300016 | DELCO |
| 91-27-3306 | WILSON |
| 91-27-3306N | WILSON |
| CST60612GS | CASCO |
| F032114331 | CARGO |
| M009T82471 | MITSUBISHI |
| M009T82479 | MITSUBISHI |
| M105R3508SE | PRESTOLITE |
| M105R3532SE | PRESTOLITE |
| M9T82471 | MITSUBISHI |
| M9T82479 | MITSUBISHI |
| MAV626120 | SIOM |
| MAV626130 | SIOM |
| S5067 | AS-PL |
| S-80131 | DIXIE |
| SG0211 | GHIBAUDI |
| ST2001 | CUMMINS |
| ST2018 | CUMMINS |
| ST7029 | CUMMINS |
| ST8007 | CUMMINS |
| ST8018 | CUMMINS |
| STD4331 | KRAUF |
| STM4331 | KRAUF |
| STR2173 | ELECTROLOG |
| STR71223 | WOODAUTO |
| STRS401 | 3EFFE |
| STX201301 | STARDAX |
Video/Publications
