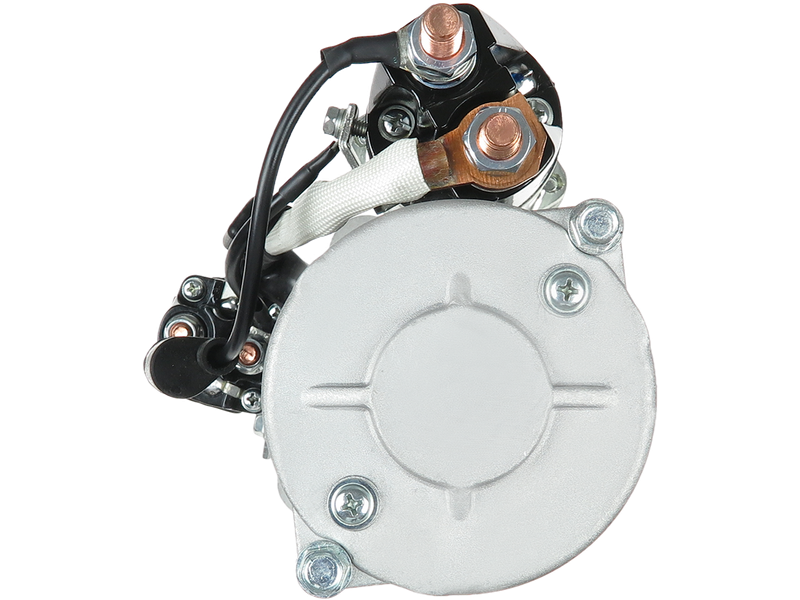

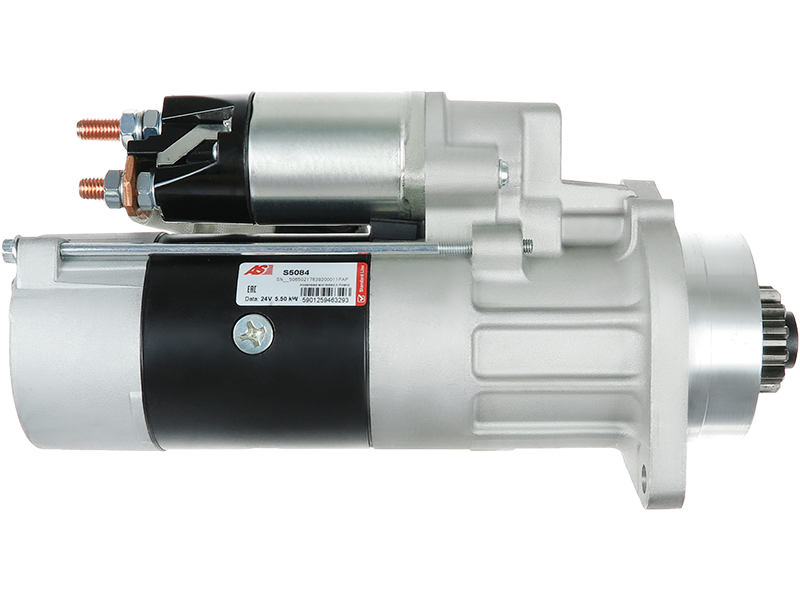

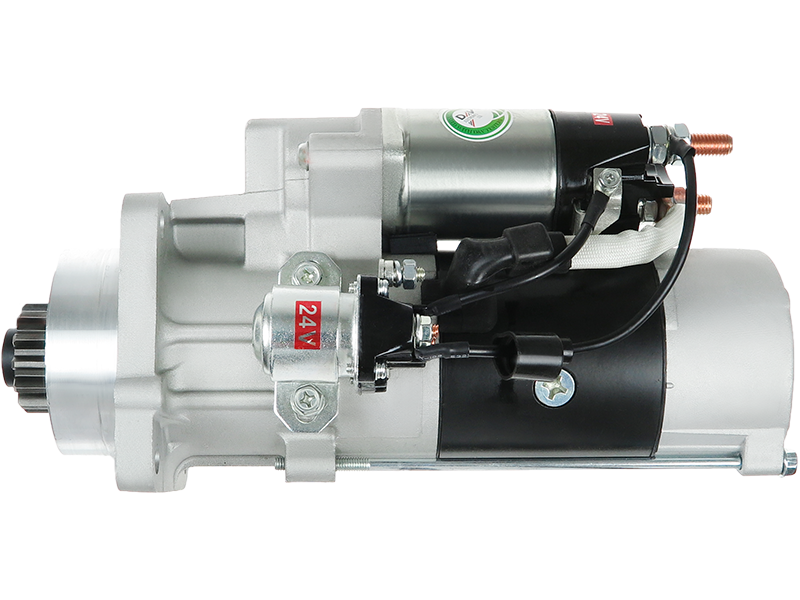

S5084 - Brand new AS-PL Starter motor

Specifications

Kilowatt	5.5 kW
Length (L.1)	319 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127.5 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	13 qty
No./Teeth (Replaces)	13 qty
Pinion at Rest (B)	47.5 mm
Rotation	CW
Spigot Diameter (A)	88.5 mm
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
MERCEDES BENZ TRUCKS & BUSES	1017 4.2	[OM904.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1018 4.2	[OM900.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1022 4.8	[OM924.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1024 6.4	[OM902.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1024 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1026 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1029 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1222 4.8	[OM924.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1224 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1226 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1226 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1318 4.3	[OM900.913]	12.2011-
MERCEDES BENZ TRUCKS & BUSES	1322 4.8	[OM924.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1324 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1518 4.2	[OM900.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1522 4.8	[OM924.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1726 7.2		01.2011-
MERCEDES BENZ TRUCKS & BUSES	1728 7.2		01.2011-
MERCEDES BENZ TRUCKS & BUSES	1829 6.4	[OM902.927]	10.2007-
MERCEDES BENZ TRUCKS & BUSES	1833 7.2	[OM926.934]	10.2007-
MERCEDES BENZ TRUCKS & BUSES	1924 L 6.4	[OM902.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1926 L 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1929 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2224 L 6.4	[OM902.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2226 L 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2229 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2324 7.2		01.2012-
MERCEDES BENZ TRUCKS & BUSES	2426 7.2		01.2012-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.921]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.945]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.990]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2729 7.2		01.2012-
MERCEDES BENZ TRUCKS & BUSES	2729 B 7.2		01.2012-
MERCEDES BENZ TRUCKS & BUSES	2729 K 7.2		01.2012-
MERCEDES BENZ TRUCKS & BUSES	822 4.8	[OM924.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	824 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	826 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	829 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	918 4.2	[OM900.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	922 4.8	[OM924.922]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	924 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	926 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	926 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	929 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	Intouro 7.2	[OM926.939]	01.2005-
MERCEDES BENZ TRUCKS & BUSES	O 510 6.4	[OM906.961]	10.2003-
MERCEDES BENZ TRUCKS & BUSES	O 510 6.4	[OM906.962]	10.2003-
MERCEDES BENZ TRUCKS & BUSES	O 510 7.2	[OM926.939]	10.2003-
MERCEDES BENZ TRUCKS & BUSES	O 530 6.4	[OM902.926]
MERCEDES BENZ TRUCKS & BUSES	O 530 6.4	[OM902.934]
MERCEDES BENZ TRUCKS & BUSES	O 530 7.2		08.2013-

Reference Information

551.525.133.138 S5084 551.525.133.376 A0061515801 M009T64371 DRS0541N M009TD0471 45-4400 19081908 71514901 61516801 M9T66171AM 551.525.133.383 6035633 551.525.133.382 254405 CGB-94371 130-90130NOE A0061516801 M9T66171 LRS2727 28.2015M RAS11652 M009T65071 M009T65271 336460 5135137 551.525.133.130 88214626 6035633.1 551.525.133.370 M9TD0471AM 130-90130 STM4434 19320N 20437336BN M9T65271 PRSL750 551.525.133.311 M9T65071 115896 61514801 M009T66171 71510801 STM1092 254405P CST35633GS M90R3553SE 130-90130N A0071510801 254405M M009T66171AM S24MH0072A2 20437336OE M9T64371 A0071514901 A0061514801 19081008 551.525.133.265 CST35633AS 220566 STR5162 114086 M9TD0471 STRL750 DRS0541 LRS02727 M009TD0471AM

Video/Publications

0061514801 0061516801 0071510801 114086 115896 19081908 19320N 20437336OE 254405 254405M 254405P 28.2015M 6035633 A0061514801 A0061516801 A0071510801 CST35633GS DRS0541 DRS0541N LRS02727 LRS2727 M009T64371 M009T65271 M009T66171 M90R3553SE M9T64371 M9T65271 M9T66171 RAS11652 S5084 STRL750 220566 19081008
