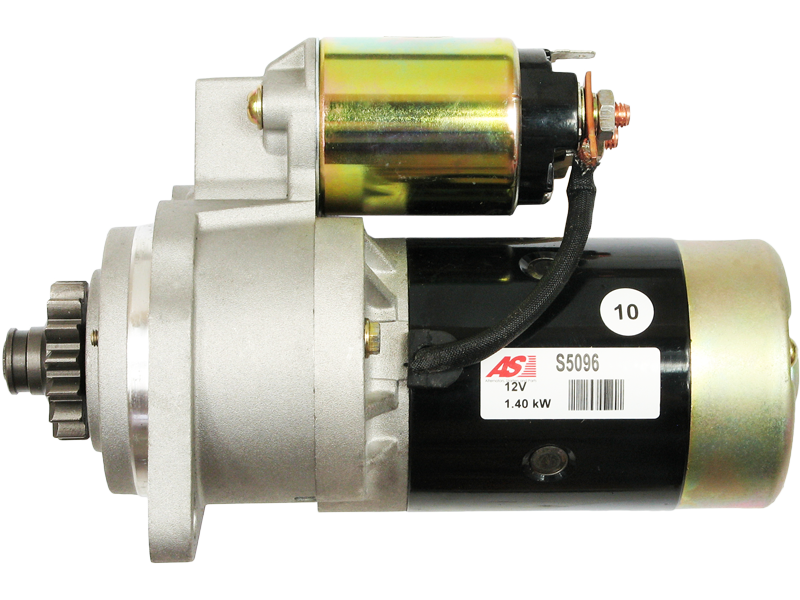

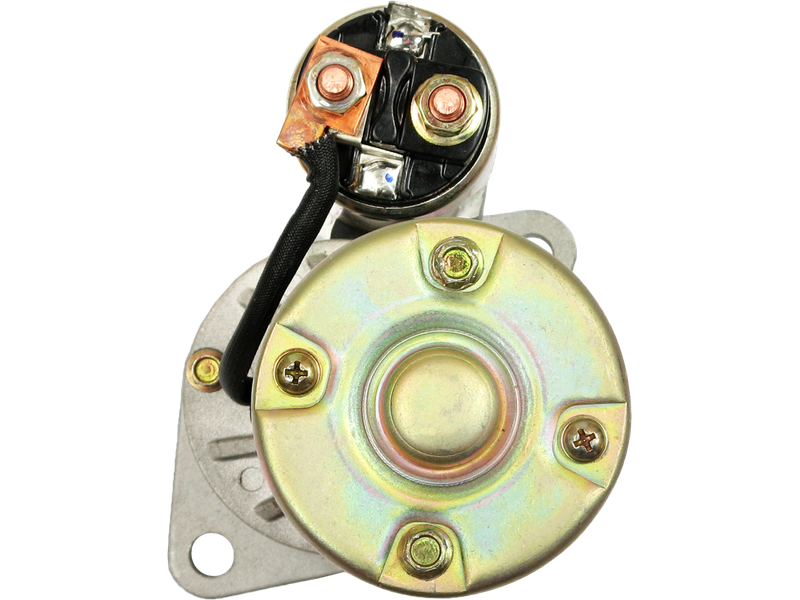

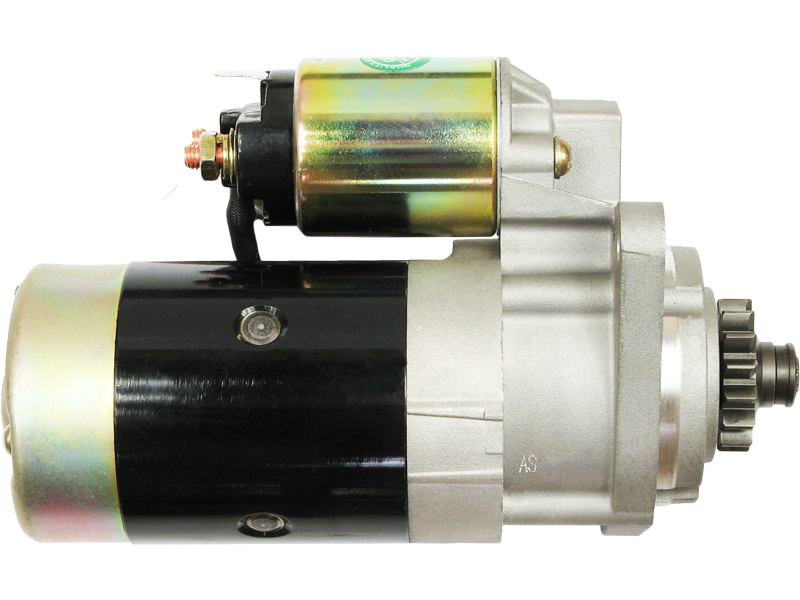

S5096 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 384.13 including GST

NZ$ 334.03 excluding GST
each
S5096
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

110933 1273112C91 17141N 20437371BN 20437371OE 20895 25-1496 26.0895 33927 6035173 8101 CST35173 CST35173AS CST35173ES CST35173GS CST35173OS CST35173RS DRS3713 EAA-111362 JS895 LRS01283 M002T50371 M002T50381 M002T50391 M2T50371 M2T50381 M2T50391 MM409410 MM409414 S5096 STR71002
Kilowatt1.4 kW
Length (L.1)226 mm
Mount Hole Center - Center (O.1)117.5 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth15 qty
No./Teeth (Replaces)15 qty
Pinion at Rest (B)28 mm
RotationCW
Spigot Diameter (A)76.5 mm
Unit TypeMITSUBISHI
Voltage12 V
Make Model Type Year
ISEKI 2140
M001T40172 M2T57729 20895 20437371OE M001T40175 LRS1283 M2T50371 M2T50391 CST35173OS 6035173 EAA-111362 JS895 CGB-23713 CST35173ES 1273112C91 STRL266 CST35173 CST35173GS STR5056 M1T40175 M002T50381 M1T40172 MAV371730 M3T68381 CST35173AS 8101 S5096 MM409410 1992334 M2T50381 LRS01283 CST35173RS 110933 MM409414 M003T68381 26.0895 25-1496 20437371BN DRS3713 M002T50391 M002T50371 33927 M002T57729 17141N STR71002
110933 1273112C91 17141N 20437371BN 20437371OE 20895 25-1496 26.0895 33927 6035173 8101 CGB-23713 CST35173 CST35173AS CST35173ES CST35173GS CST35173OS CST35173RS DRS3713 EAA-111362 JS895 LRS01283 LRS1283 M002T50371 M002T50381 M002T50391 M2T50371 M2T50381 M2T50391 MAV371730 MM409410 MM409414 S5096 STR71002 STRL266
