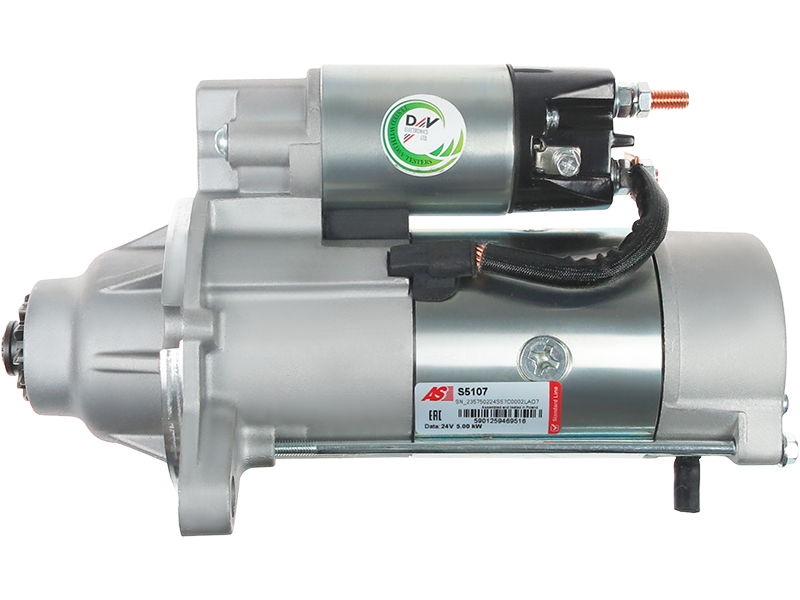

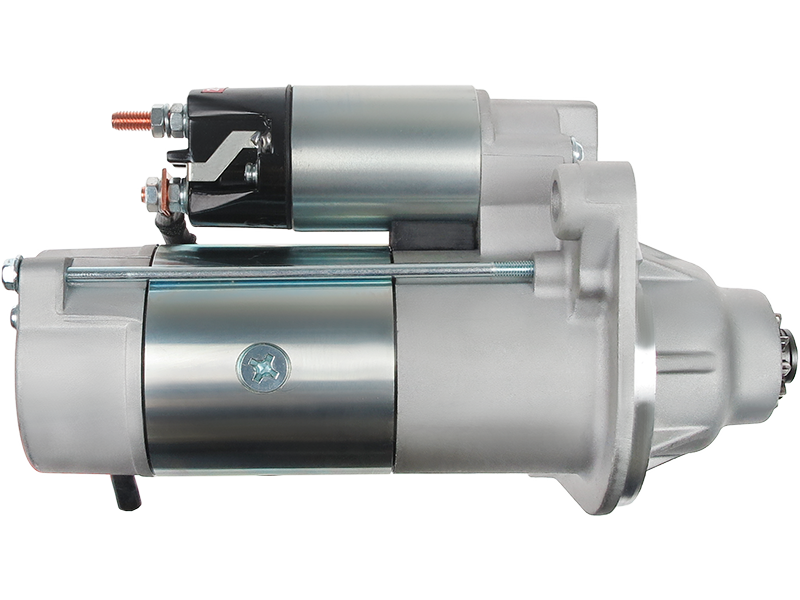

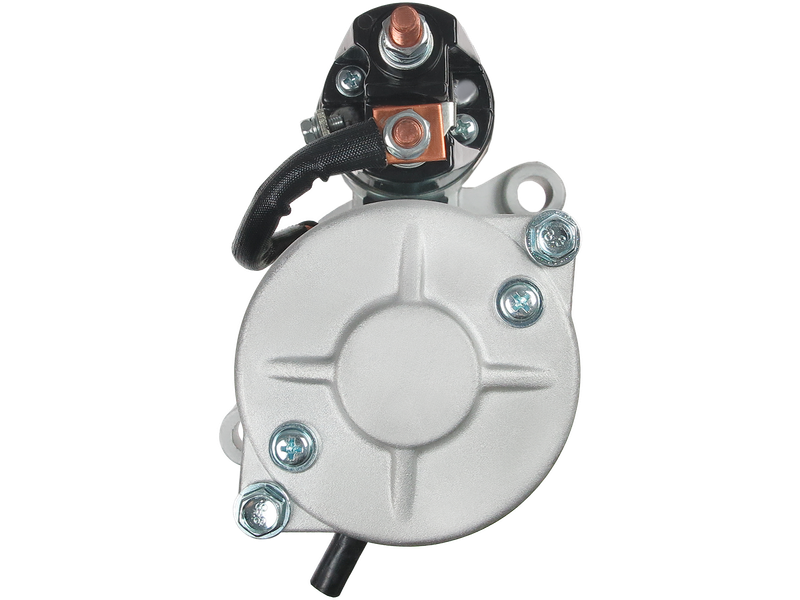

S5107 - Brand new AS-PL Starter motor

Specifications

Kilowatt	5 kW
Length (L.1)	288 mm
Mount Hole Center - Center (O.1)	151 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	67 mm
Rotation	CW
Spigot Diameter (A)	110 mm
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	315
CATERPILLAR	315B
CATERPILLAR	315C
CATERPILLAR	315CL
CATERPILLAR	315L
CATERPILLAR	317B
CATERPILLAR	317BLN
CATERPILLAR	318BL
CATERPILLAR	318BLN
CATERPILLAR	DP100
CATERPILLAR	DP115
CATERPILLAR	FK618 8.2	[6D17]	01.1994-
CATERPILLAR	Various Models
KOBELCO	SK290LC
KOBELCO	SK290LC-6
KOBELCO	SK330LC
KOBELCO	SK330LC-6
KOBELCO	SK370-IV
MITSUBISHI	Engine 7.5	[6D16]
TADANO	TR600XL-3
VOLVO	EC70

Reference Information

M003T56084 88213471 M004T50073 ME037636 M003T56082 M3T56071 ME037150 ME077970 CST35603AS M3T56074 M3T56073 336226 M3T56072 151.504.112.360 MITM8T60071 ME077407 STR-7107 M008T60071AM STR5012 ME077408 130-80110NOE M006T10673 M003T56076 STRS813 M008T60071 PRSS813 1347023 6035603.1 18542N 20437306BN M008T60072 STR71202 20437306OE S24MH0137A2 130-80110N LRS2364 MAV376030A 151.504.112.136 M008T60071A 151.504.112.139 151.504.112.138 M008T60071C ME077796 ME037330 130-80110 M4T50073 STM3669З M2T56082 M8T60071A M8T60071AM S5107 M8T60071C 113669 M003T56072 M6T10673 M003T56071 M3T56082 STR7107 45-4036 M002T56082 ME077048 STM3669З M3T56084 ME037465 151.504.112.370 M3T56076 151.504.112.131 LRS02364 151.504.112.130 CST35603GS M8T60072 254278 M8T60071 8119 MAV376030 6035603 3610093010

Video/Publications

S5107 113669 18542N 20540104 254278 45-4036 DRS0337 LRS02364 LRS2364 M008T60071 M008T60071A M8T60071 M8T60071A MAV376030 ME077796 STR71202 STRF333 STRS813
