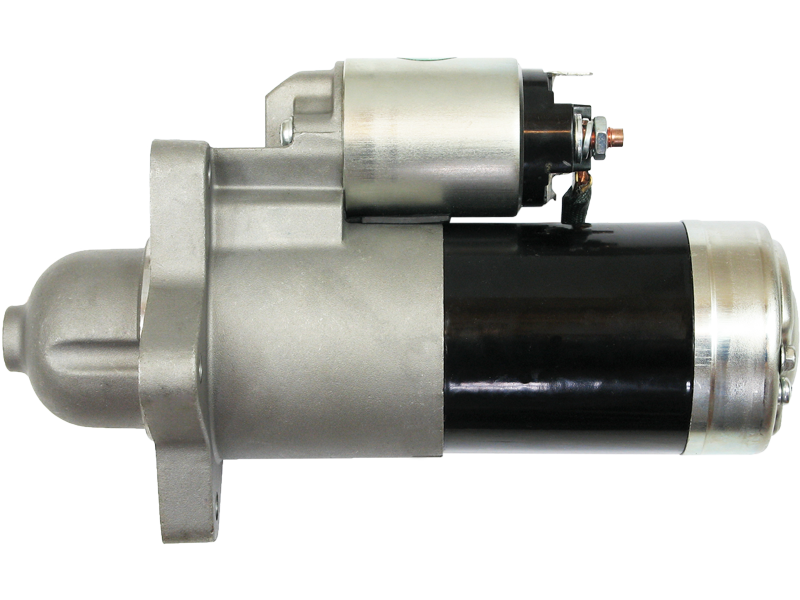

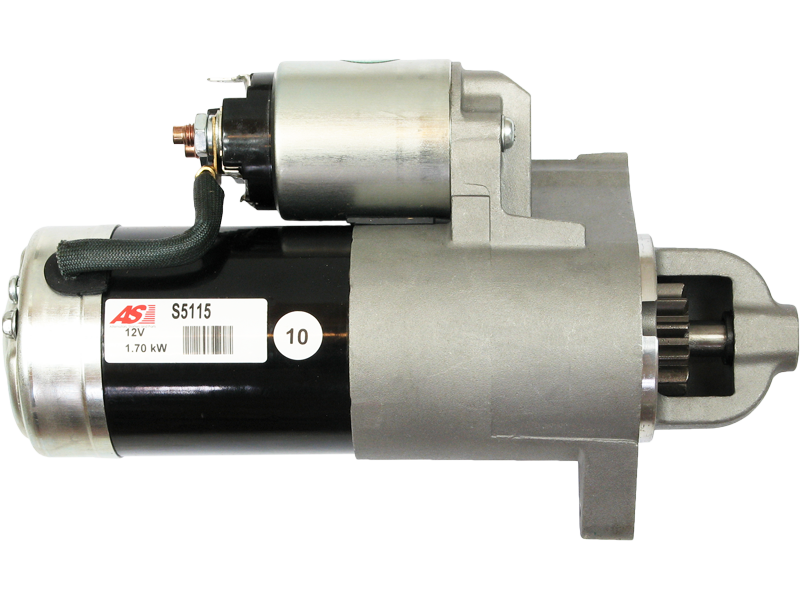

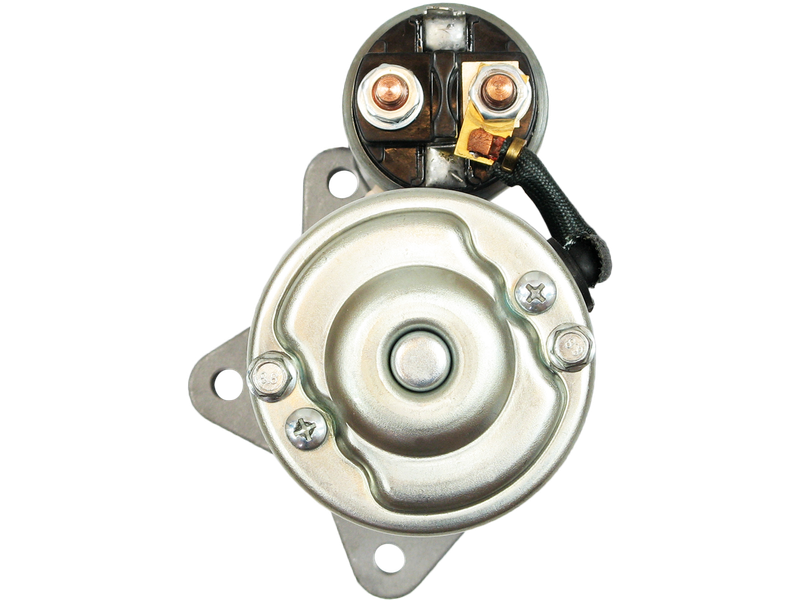

S5115 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	256 mm
Mount Hole Center - Center (O.1)	66 mm
Mount Hole Center - Center (O.2)	68 mm
Mount Hole Center - Center (O.3)	108 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
Mount Hole Diameter (C.3)	M10x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	12 qty
No./Teeth (Replaces)	12 qty
Pinion at Rest (B)	17 mm
Rotation	CW
Spigot Diameter (A)	67 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	929 3.0 V6	[JE]	01.1986-12.1992
MAZDA	929 3.0 V6	[JE3]	01.1986-12.1992
MAZDA	MPV 3.0	[JE]	01.1995-12.1999
MAZDA	Xedos 6 2.0 V6	[KF1]	01.1992-12.1999

Reference Information

JE01-18-400C STRF313 LRS1166 JE16-18-400B UD00471S JE01-18-400A JE01-18-400B M1T71781 MP117044 20635 M001T75181 M1T75181A LRS01166 S1221M M0T81081 M1T74381 STR71055 M001T75181A STRF368 MTM197 UD00472S 3M197 JE01-18-400 JF01-18-400A TM000A04801 20768 JF01-18-400C M001T71781 JF01-18-400B M000T81081 AET0635 STR5140 M001T74381 003-M197 25-1159 17133N DRS3157 M1T75181

Video/Publications

003-M197 20635 20768 25-1159 3M197 AET0635 DRS3157 JE01-18-400 JE01-18-400A JE01-18-400B JE01-18-400C JE16-18-400B JF01-18-400A JF01-18-400B JF01-18-400C LRS01166 LRS1166 M000T81081 M001T71781 M001T74381 M001T75181 M001T75181A M0T81081 M1T71781 M1T74381 M1T75181 M1T75181A MP117044 MTM197 S1221M STR71055 STRF313 STRF368 TM000A04801 UD00471S UD00472S
