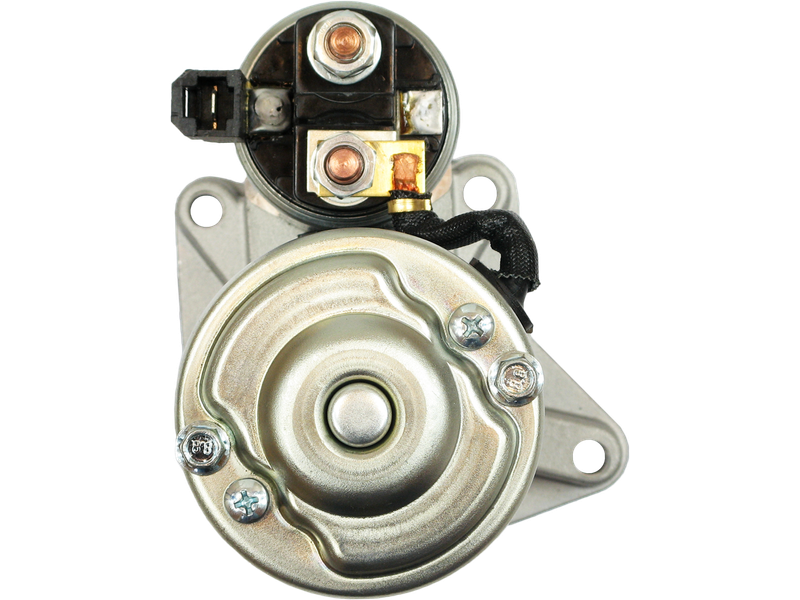

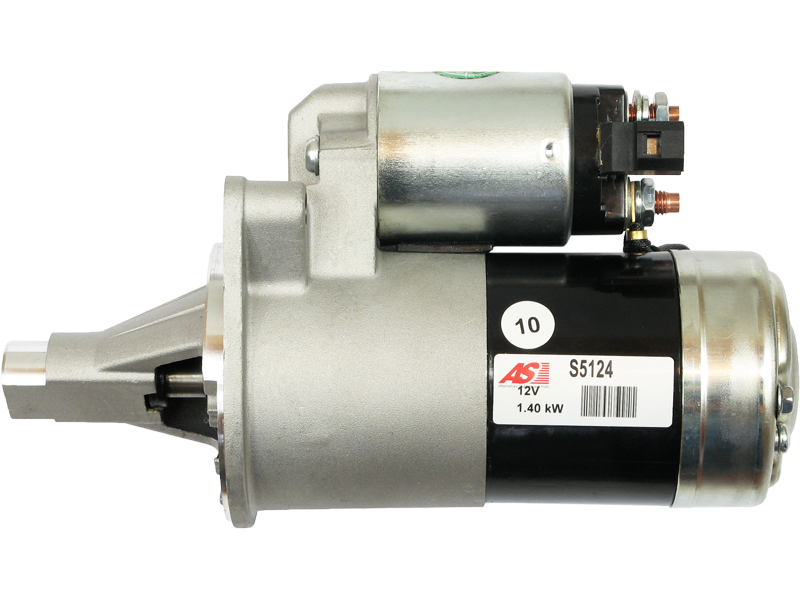

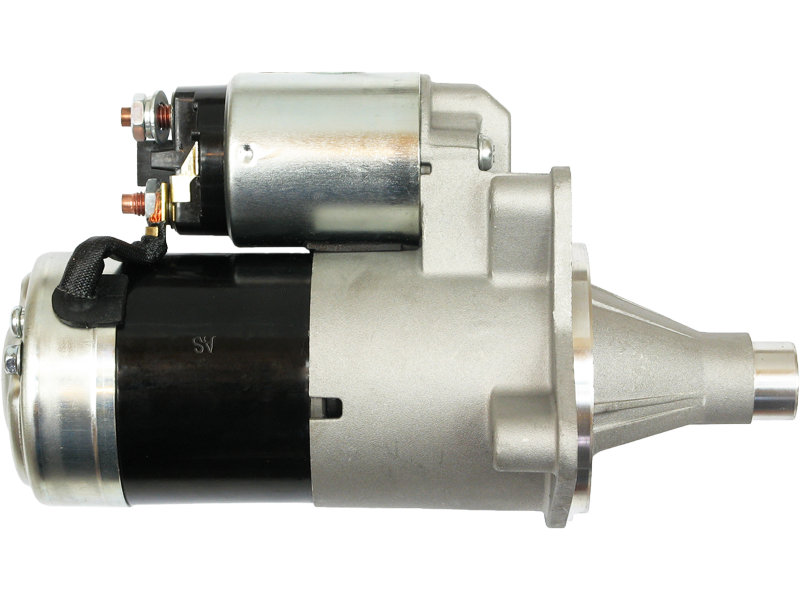

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 279.67 including GST
NZ$ 243.19 excluding GST
or four payments of $69.92
with
Learn More
each
S5124
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M1T78581Associated Numbers
112846 17559N 20437422BN 22.3162 25-2443 255068 4609058 6035224 CST35224 CST35224AS CST35224ES CST35224GS CST35224OS CST35224RS DRZ5184 EAA-121662 LRS01495 M001T78581 M001T78581ZC M1T78581 M1T78581ZCSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 231 mm |
| Mount Hole Center - Center (O.1) | 113 mm |
| Mount Hole Center - Center (O.2) | 71 mm |
| Mount Hole Center - Center (O.3) | 68 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | CiRus 2.5 | [EEB] | 01.1998-01.1998 |
| CHRYSLER | CiRus 2.5 | 01.1999-01.2000 | |
| CHRYSLER | CiRus 2.5 LX | [EEB] | 01.1995-01.1997 |
| CHRYSLER | CiRus 2.5 LX | [EEB] | 10.1994-09.2000 |
| CHRYSLER | CiRus 2.5 LXI | [EEB] | 01.1995-01.1997 |
| CHRYSLER | Sebring 2.5 JX | [EEB] | 01.1996-01.1997 |
| CHRYSLER | Sebring 2.5 JX | [EEB] | 01.1998-01.1998 |
| CHRYSLER | Sebring 2.5 JX | 01.1999-01.2000 | |
| CHRYSLER | Sebring 2.5 JXI | [EEB] | 01.1996-01.1997 |
| CHRYSLER | Sebring 2.5 JXI | [EEB] | 01.1998-01.1998 |
| CHRYSLER | Sebring 2.5 JXI | 01.1999-01.2000 | |
| CHRYSLER | Sebring 2.5 LE | [EEB] | 05.1995-09.2000 |
| CHRYSLER | Sebring 2.5 LX | [EEB] | 01.1996- |
| CHRYSLER | Sebring 2.5 LX | 01.1999-01.1999 | |
| CHRYSLER | Sebring 2.5 LXI | [EEB] | 01.1996-01.1997 |
| CHRYSLER | Sebring 2.5 LXI | [EEB] | 01.1998-01.1998 |
| CHRYSLER | Sebring 2.5 LXI | 01.1999-01.1999 | |
| DODGE | Stratus 2.5 | 01.1999-01.2000 | |
| DODGE | Stratus 2.5 ES | [EEB] | 01.1995-01.1997 |
| DODGE | Stratus 2.5 ES | [EEB] | 01.1998-01.1998 |
| DODGE | Stratus 2.5 V6 | [EEB] | 12.1995-04.2001 |
Reference Information
| 112846 | CARGO |
| 17559N | WAI / TRANSPO |
| 20437422BN | REAL |
| 22.3162 | LAUBER |
| 25-2443 | ELSTOCK |
| 255068 | KUHNER |
| 336237 | LOGISTIK |
| 4609058 | CHRYSLER |
| 4671101 | CHRYSLER |
| 6035224 | SANDO |
| ANM97404X | ANDEL |
| CGB-28581 | AINDE |
| CST35224 | CASCO |
| CST35224AS | CASCO |
| CST35224ES | CASCO |
| CST35224GS | CASCO |
| CST35224OS | CASCO |
| CST35224RS | CASCO |
| DRZ5184 | DELCO |
| F032112846 | CARGO |
| LRS01495 | LUCAS |
| LRS1495 | LUCAS |
| M000T80481 | MITSUBISHI |
| M001T78581 | MITSUBISHI |
| M001T78581ZC | MITSUBISHI |
| M0T80481 | MITSUBISHI |
| M1T78581 | MITSUBISHI |
| M1T78581ZC | MITSUBISHI |
| R4609058 | CHRYSLER |
| STR5144 | ELECTROLOG |
| STRF671 | 3EFFE |
| STX201191 | STARDAX |
Video/Publications
