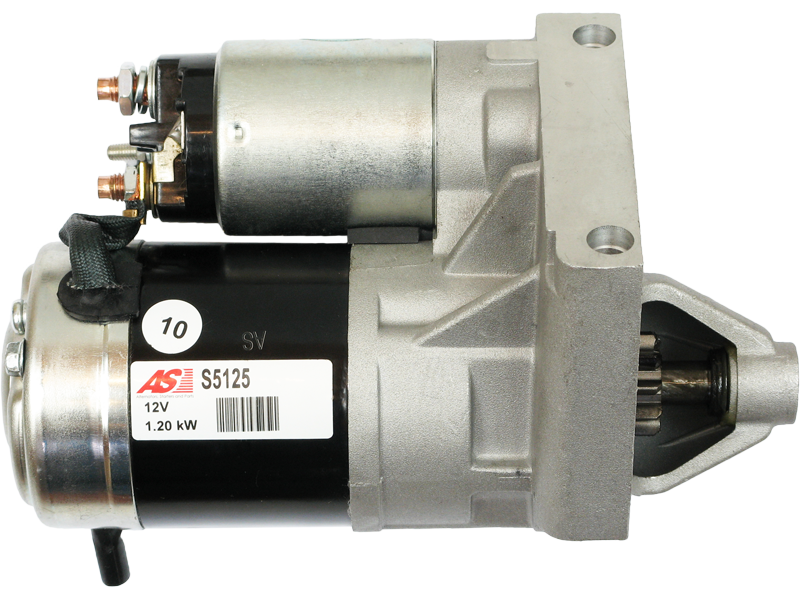

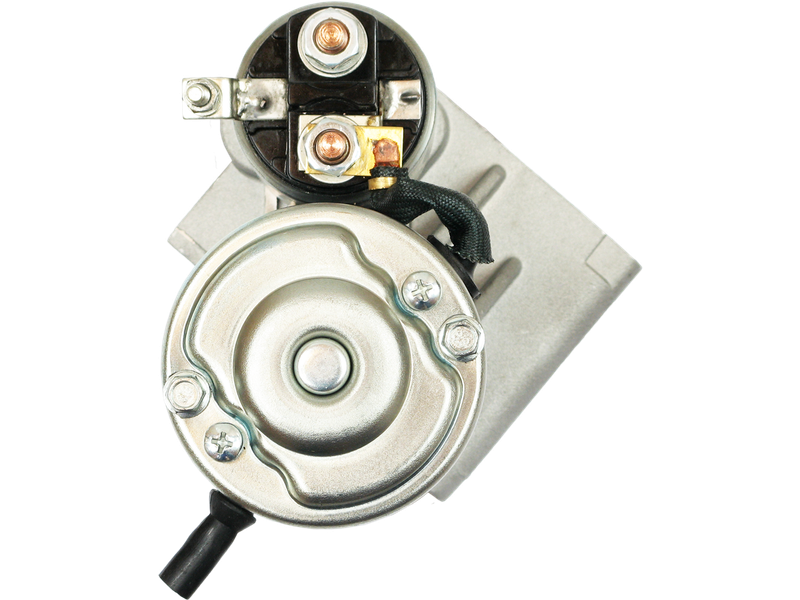

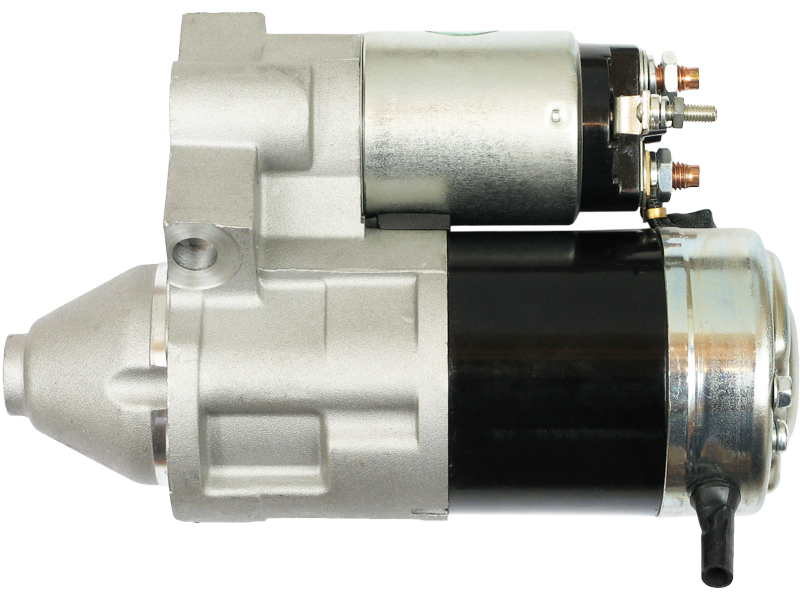

S5125 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.2 kW
Length (L.1)	206 mm
Mount Hole Center - Center (O.1)	86 mm
Mount Hole Diameter (C.1)	9.5 mm
Mount Hole Diameter (C.2)	9.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	18 mm
Rotation	CW
Spigot Diameter (A)	59 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
DODGE	Dakota 2.5		01.1996-01.1996
DODGE	Dakota 2.5		01.1997-01.1997
DODGE	Dakota 2.5		01.1998-01.1998
JEEP	Cherokee 2.5		01.1998-01.1998
JEEP	Cherokee 2.5 i	[EPE]	11.1996-
JEEP	Cherokee 2.5 i	[EPE]	12.1991-
JEEP	Cherokee 2.5 i	[HX]	12.1991-
JEEP	Cherokee 2.5 SE		01.1994-01.1997
JEEP	Wagoneer 2.5 Rio Grande		01.1995-01.1995
JEEP	Wagoneer 2.5 SE		01.1994-01.1997
JEEP	Wrangler 2.5	[4L]	12.1991-08.1996
JEEP	Wrangler 2.5	[P00]	08.1996-
JEEP	Wrangler 2.5		01.1998-01.1998

Reference Information

CST35204RS 101175 112301 STRW333 4796981 AES1202 LRT00102 M001T79482 CS1175 CST35204AS M001T79481 S5125 4796981AE 17564N 25-3242 DRZ5172 CST35204 K04796981AE CST35204OS CGB-23030 56041013 CST35204GS CST35204ES K56041013AF 56041013AF ANM97392X 56027904 M1T79482 6035204 S1169M 20437402BN M1T79481 STRS902 STR5061

Video/Publications

101175 112301 17564N 20437402BN 25-3242 4796981 56027904 56041013 6035204 AES1202 CGB-23030 CS1175 CST35204 CST35204AS CST35204ES CST35204GS CST35204OS CST35204RS DRZ5172 LRT00102 M001T79481 M001T79482 M1T79481 M1T79482 S1169M S5125 STRS902 STRW333
