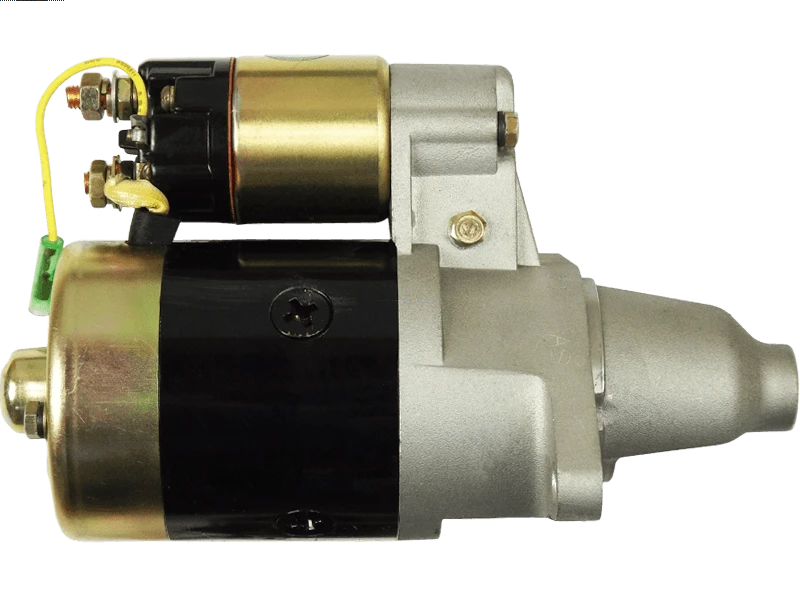

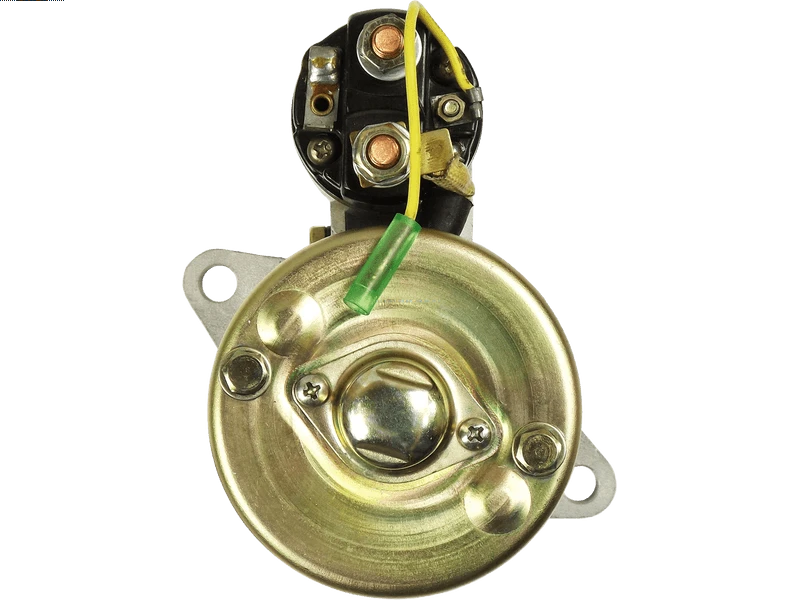

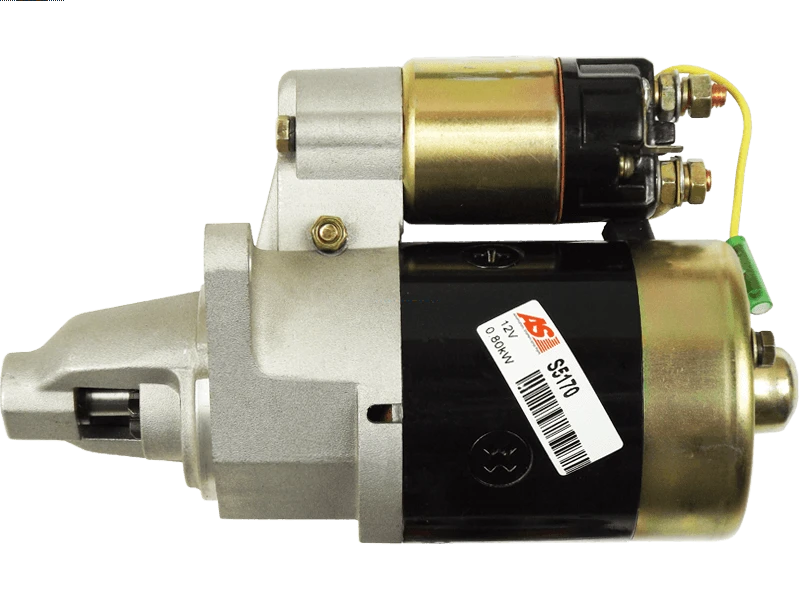

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 201.30 including GST
NZ$ 175.04 excluding GST
or four payments of $50.33
with
Learn More
each
S5170
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
028000-1861 028000-3730 028000-6510 028000-6511 028000-8387 028000-8730 028000-9090 028000-9091 110402 11782 128000-1861 128000-1862 128000-1863 128000-3641 180.008.092 20387 20500514 20758 26-1125 30514R 31100-78611 31100-79610 31100-79611 31100-79650 31100-79660 31100-79661 31100-79680 31100-79X50 31100-85291 455902 6040102 88212835 9751 AES5114 CST40102 CST40102AS CST40102ES CST40102GS CST40102OS CST40102RS DRS3098 DS4208 J5218002 JS387 LRS00514 LRS514 S5170 STN2387 STR70008 UD02212SSpecifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 65 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Carry 0.8 | [F8A] | 11.1980-10.1985 |
| SUZUKI | Super Carry 1.0 | [F10A] | 10.1985-03.1999 |
| SUZUKI | Super Carry 1.0 | [F10A] | 10.1992-03.1999 |
Reference Information
| 003-Z216 | ASHIKA |
| 028000-1861 | DENSO |
| 028000-3730 | DENSO |
| 028000-6510 | DENSO |
| 028000-6511 | DENSO |
| 028000-8387 | DENSO |
| 028000-8730 | DENSO |
| 028000-9090 | DENSO |
| 028000-9091 | DENSO |
| 110402 | CARGO |
| 11782 | EAI |
| 128000-1861 | DENSO |
| 128000-1862 | DENSO |
| 128000-1863 | DENSO |
| 128000-3641 | DENSO |
| 180.008.092 | PSH |
| 20387 | KUHNER |
| 20500514 | PRESTOLITE |
| 20758 | KUHNER |
| 26-1125 | ELSTOCK |
| 30514R | WAI / TRANSPO |
| 31100-78611 | SUZUKI |
| 31100-79610 | SUZUKI |
| 3110079610L | SUZUKI |
| 31100-79611 | SUZUKI |
| 3110079620 | SUZUKI |
| 31100-79620 | SUZUKI |
| 3110079621 | SUZUKI |
| 31100-79621 | SUZUKI |
| 3110079628 | SUZUKI |
| 3110079630 | SUZUKI |
| 31100-79630 | SUZUKI |
| 31100-79631 | SUZUKI |
| 31100-79650 | SUZUKI |
| 311007966 | SUZUKI |
| 31100-7966 | SUZUKI |
| 31100-79660 | SUZUKI |
| 31100-79661 | SUZUKI |
| 31100-79680 | SUZUKI |
| 31100-79X50 | SUZUKI |
| 3110079X50000 | SUZUKI |
| 3110085010 | SUZUKI |
| 31100-85010 | SUZUKI |
| 31100-85020 | SUZUKI |
| 3110085021 | SUZUKI |
| 31100-85291 | SUZUKI |
| 335237 | LOGISTIK |
| 370801010401 | DONGFENG |
| 3Z216 | JAPKO |
| 455902 | VALEO |
| 6040102 | SANDO |
| 88212835 | POWERMAX |
| 9751 | CEVAM |
| AES5114 | AUTOELECTRO |
| ALT131110 | SIOM |
| ANM15318X | ANDEL |
| CGB-23098 | AINDE |
| CST40102 | CASCO |
| CST40102AS | CASCO |
| CST40102ES | CASCO |
| CST40102GS | CASCO |
| CST40102OS | CASCO |
| CST40102RS | CASCO |
| DRS3098 | DELCO |
| DS4208 | DELCO |
| F032110402 | CARGO |
| J5218002 | HERTH+BUSS |
| JS387 | HC PARTS |
| LRS00514 | LUCAS |
| LRS514 | LUCAS |
| M002T40271 | MITSUBISHI |
| M2T40271 | MITSUBISHI |
| MAV5900 | SIOM |
| MTZ216 | JAPANPARTS |
| PRSS070 | 3EFFE |
| QD1226CG | DONGFENG |
| S5170 | AS-PL |
| STN2387 | KRAUF |
| STR70008 | WOODAUTO |
| STRS070 | 3EFFE |
| UD02212S | AS-PL |
