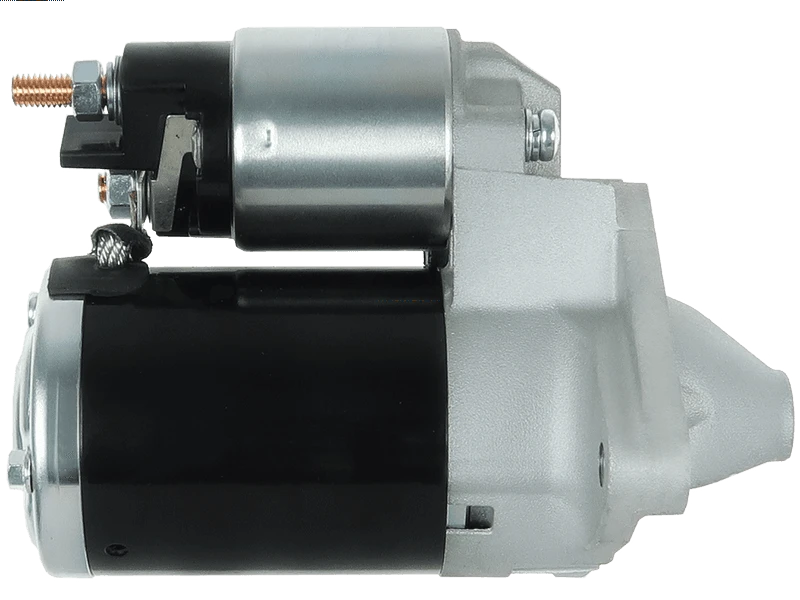

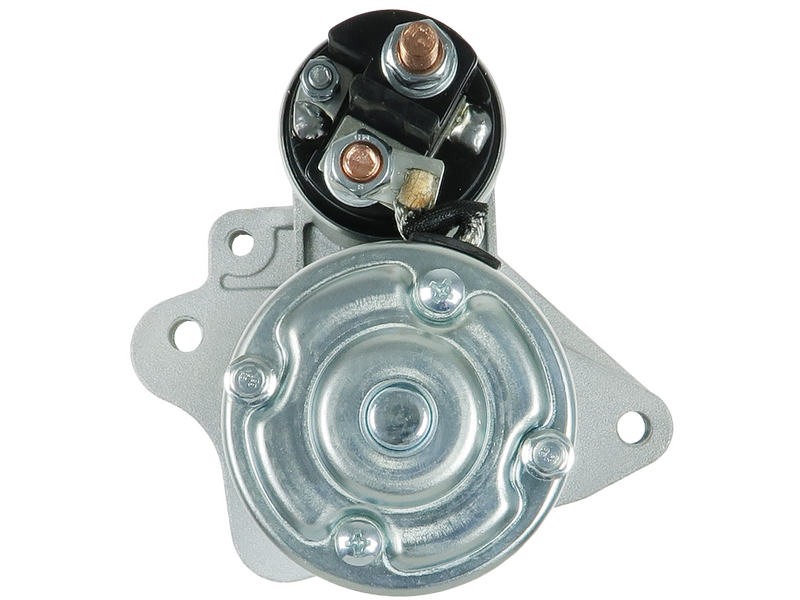

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 235.96 including GST
NZ$ 205.18 excluding GST
or four payments of $58.99
with
Learn More
each
S5176
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T45971Associated Numbers
20437872OE 25-4220 255149 255149M 33353N 6035278 8200538751 8200665518 AEY2548 CST35278 CST35278AS CST35278ES CST35278GS CST35278OS CST35278RS DRS0987 LRS02548 M000T45971 M000T45971ZT M0T45971 M0T45971ZT UD30048SSpecifications
| Kilowatt | 0.85 kW |
| Length (L.1) | 177 mm |
| Mount Hole Center - Center (O.1) | 28 mm |
| Mount Hole Center - Center (O.2) | 119 mm |
| Mount Hole Center - Center (O.3) | 113 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | -1.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DACIA | Duster 1.6 16V | [K4M?] | 01.2010- |
| DACIA | Duster 1.6 16V | [K4M690] | 04.2010-01.2018 |
| DACIA | Duster 1.6 16V | [K4M694] | 04.2010-01.2018 |
| DACIA | Duster 1.6 16V | [K4M696] | 04.2010-01.2018 |
| DACIA | Duster 1.6 16V | [K4M842] | 04.2010-01.2018 |
| DACIA | Duster 1.6 16V | [K4M896] | 04.2010-01.2018 |
| DACIA | Duster 1.6 16V 4x4 | [K4M606] | 06.2010-01.2018 |
| DACIA | Duster 1.6 16V Hi-Flex | [K4M696] | 08.2010-01.2018 |
| RENAULT | Grand Scenic 1.6 | [K4M] | 01.2004-12.2009 |
| RENAULT | Grand Scenic 1.6 | [K4M761] | 04.2004-08.2006 |
| RENAULT | Grand Scenic 1.6 | [K4M782] | 04.2004-08.2006 |
| RENAULT | Grand Scenic 1.6 16V Bifuel | [K4M866] | 04.2012- |
| RENAULT | Grand Scenic 1.6 E85 | [K4M866] | 02.2009- |
| RENAULT | Grand Scenic 1.6 Flex | [K4M766] | 06.2006-06.2009 |
| RENAULT | Scenic 1.6 16V | [K4M] | 01.2004-12.2009 |
| RENAULT | Scenic 1.6 Bifuel | [K4M764] | 08.2003-05.2006 |
| RENAULT | Scenic 1.6 E85 | [K4M866] | 02.2009- |
| RENAULT | Scenic 1.6 Hi-Flex | [K4M766] | 03.2005-07.2010 |
Reference Information
| 115842 | CARGO |
| 20437872OE | REAL |
| 25-4220 | ELSTOCK |
| 255149 | KUHNER |
| 255149M | KUHNER |
| 332144 | LOGISTIK |
| 33353N | WAI / TRANSPO |
| 33355N | WAI / TRANSPO |
| 42028090 | HERTH+BUSS |
| 570.577.083.130 | PSH |
| 570.577.083.265 | PSH |
| 570.577.083.370 | PSH |
| 6035278.1 | SANDO |
| 8200538751 | RENAULT |
| 8200665518 | RENAULT |
| 88213238 | POWERMAX |
| AEY2548 | AUTOELECTRO |
| ANM13207X | ANDEL |
| CGB-54220 | AINDE |
| CST35278GS | CASCO |
| DRS0987 | DELCO |
| F032115842 | CARGO |
| LRS02548 | LUCAS |
| LRS2548 | LUCAS |
| M000T45971 | MITSUBISHI |
| M000T45971AM | MITSUBISHI |
| M000T45971ZT | MITSUBISHI |
| M0T45971 | MITSUBISHI |
| M0T45971AM | MITSUBISHI |
| M0T45971ZT | MITSUBISHI |
| MAV372780 | SIOM |
| PRSL759 | 3EFFE |
| RNLM0T45971 | RNL |
| S133.605 | PSH |
| S144.912 | PSH |
| S5176 | AS-PL |
| STR5377 | ELECTROLOG |
| STRL759 | 3EFFE |
| STX201378 | STARDAX |
| UD30048S | AS-PL |
Video/Publications
