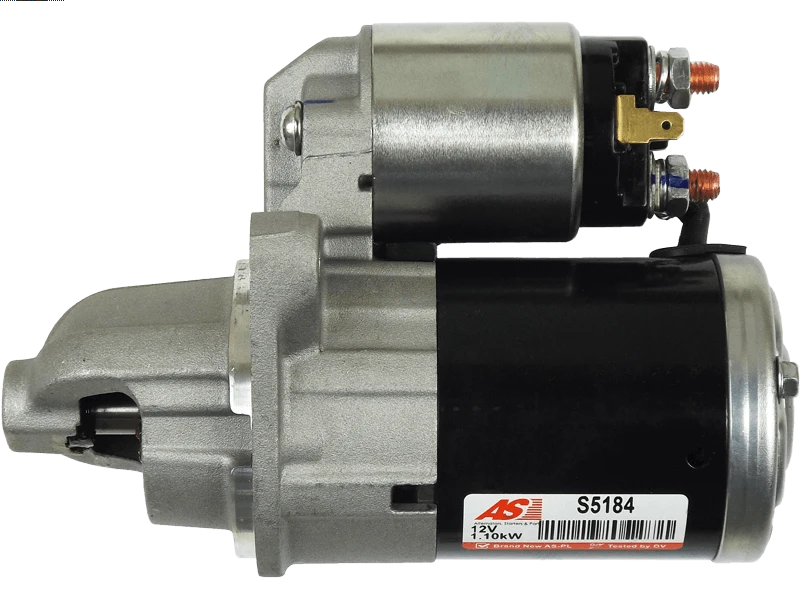

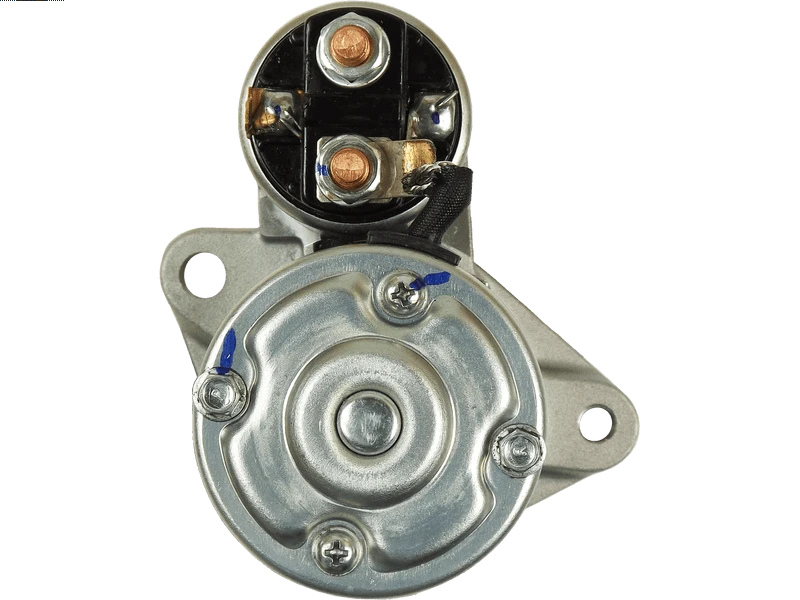

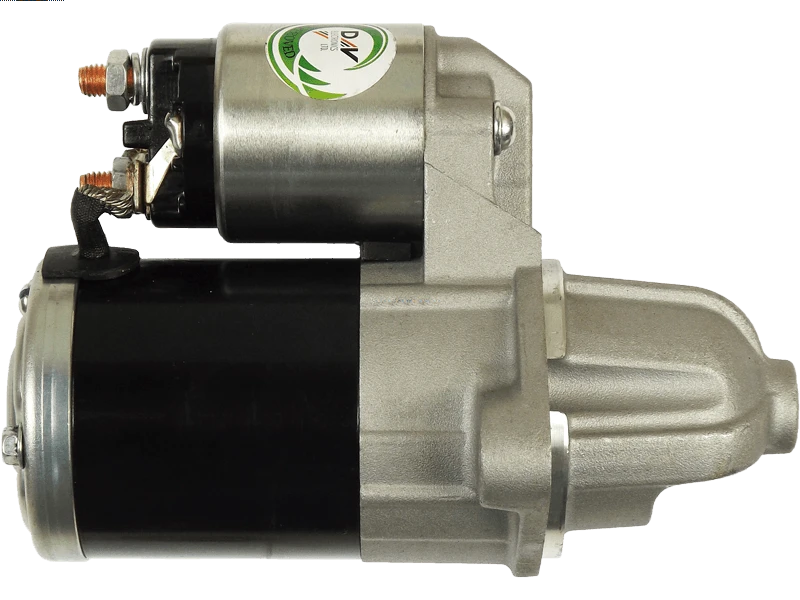

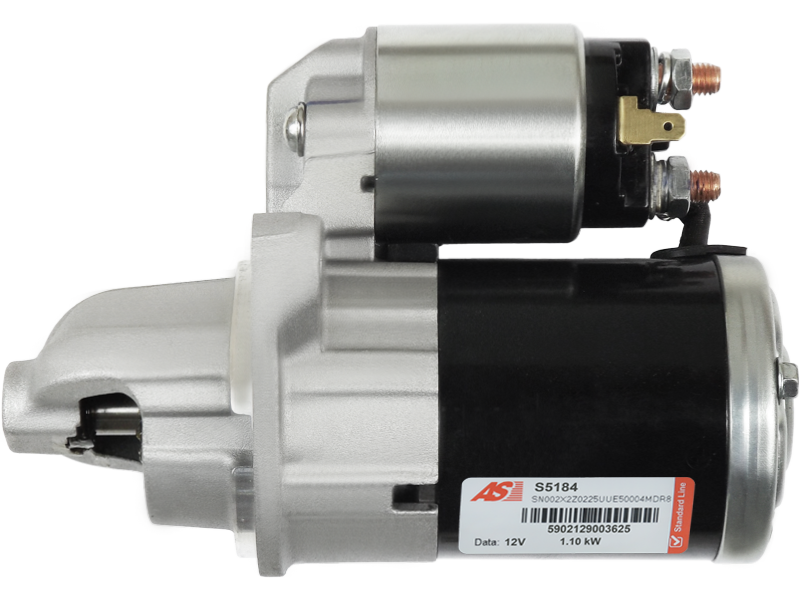

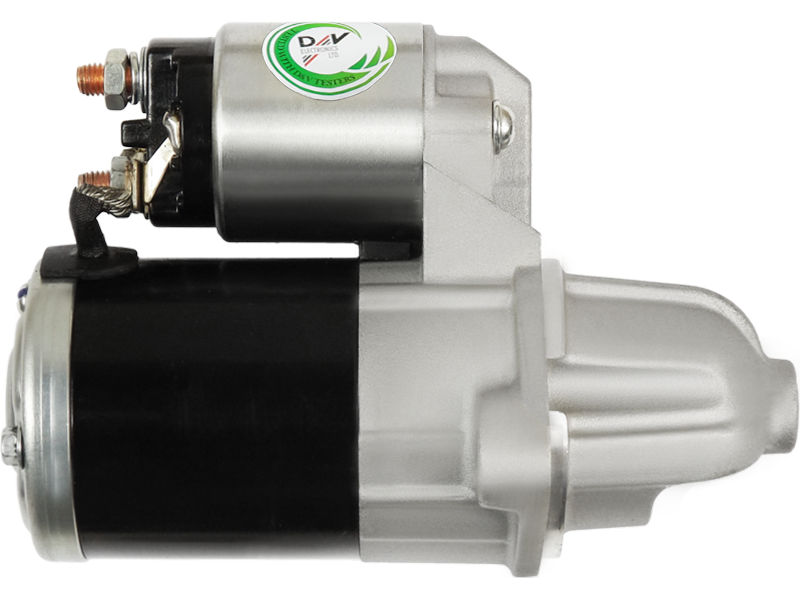

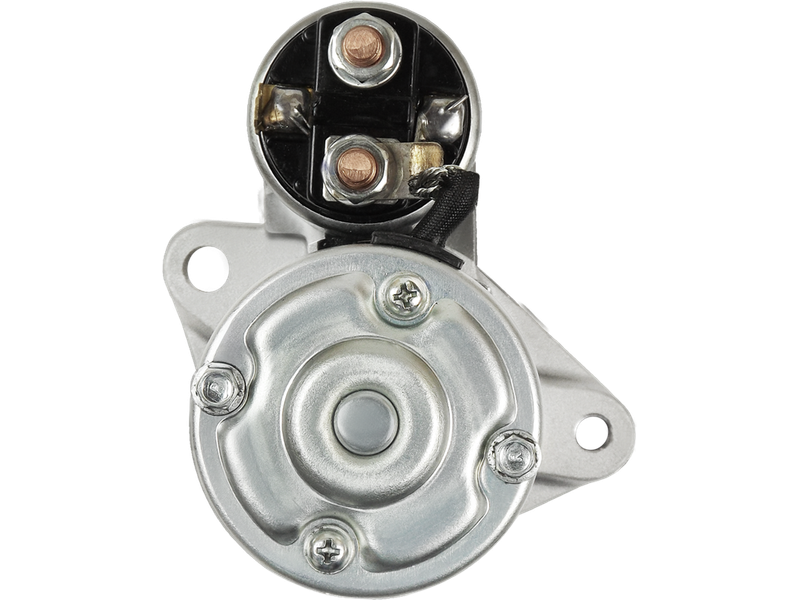

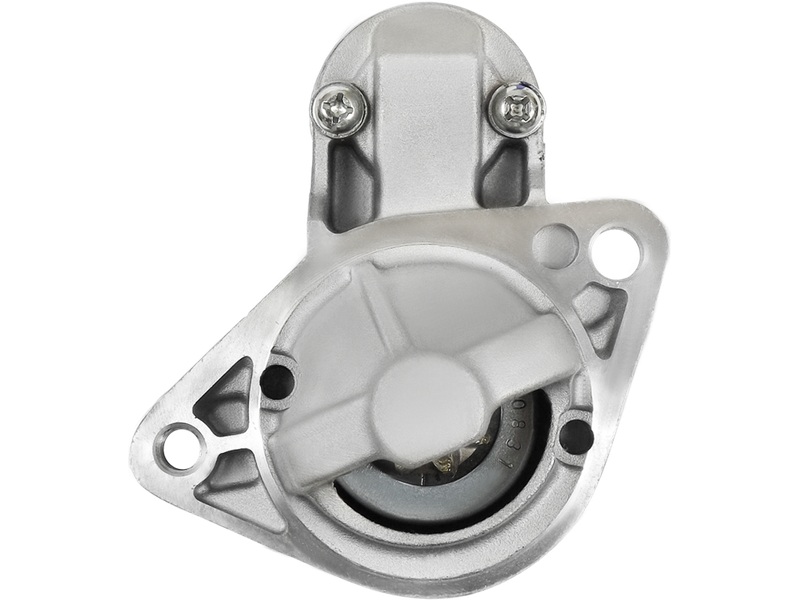

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 293.00 including GST
NZ$ 254.78 excluding GST
or four payments of $73.25
with
Learn More
each
S5228
S5184
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T36971Associated Numbers
0986025760 20437242OE 25-4254 254676 31100-51K00 31100-73K00 3147 4709919 6035242 8080358 8214184 88214184 93134147 AEY2561 CS1528 CST35242 CST35242AS CST35242ES CST35242GS CST35242OS CST35242RS DRS0642 LRS02582 M000T36971 M000T36971ZE M0T36971 M0T36971ZE UD30040SSpecifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 183 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Agila B 1.0 | [K10B] | 04.2008- |
| OPEL | Agila B 1.0 LPG | [K10B] | 01.2010- |
| OPEL | Agila B 1.2 | [K12B] | 04.2008- |
| SUZUKI | Splash 1.0 | [K10B] | 04.2008- |
| SUZUKI | Splash 1.2 | [K12B] | 04.2008- |
| VAUXHALL | Agila B 1.0 | [K10B] | 04.2008- |
| VAUXHALL | Agila B 1.2 | [K12B] | 04.2008- |
Reference Information
| 0986025760 | BOSCH |
| 114871 | CARGO |
| 1202497 | OPEL |
| 20437242OE | REAL |
| 25-4254 | ELSTOCK |
| 254676 | KUHNER |
| 31100-51K00 | SUZUKI |
| 3110051K21 | SUZUKI |
| 31100-51K21 | SUZUKI |
| 31100-73K00 | SUZUKI |
| 3110086G20 | SUZUKI |
| 31100M68K10000 | SUZUKI |
| 31243N | WAI / TRANSPO |
| 3147 | CEVAM |
| 336177 | LOGISTIK |
| 4709919 | OPEL |
| 5035224 | MEAT & DORIA |
| 6035242 | SANDO |
| 8080358 | FRIESEN |
| 8214184 | POWERMAX |
| 88214184 | POWERMAX |
| 93134147 | OPEL |
| 93194147 | GM |
| 93194147 | VAUXHALL |
| 93194147 | OPEL |
| 95514185 | OPEL |
| 95520330 | GM |
| AEY2561 | AUTOELECTRO |
| ANM12862X | ANDEL |
| CS1528 | HC PARTS |
| CST35242 | CASCO |
| CST35242AS | CASCO |
| CST35242ES | CASCO |
| CST35242GS | CASCO |
| CST35242OS | CASCO |
| CST35242RS | CASCO |
| DRS0642 | DELCO |
| F032114871 | CARGO |
| LRS02582 | LUCAS |
| LRS2582 | LUCAS |
| M000T36971 | MITSUBISHI |
| M000T36971ZE | MITSUBISHI |
| M002T46981ZE | MITSUBISHI |
| M0T36971 | MITSUBISHI |
| M0T36971ZE | MITSUBISHI |
| M2T46981ZE | MITSUBISHI |
| PRSL171 | 3EFFE |
| S12MH0541 | SIDAT |
| S12MH0541A2 | SIDAT |
| S5184 | AS-PL |
| STR5295 | ELECTROLOG |
| STRL171 | 3EFFE |
| STX200489 | STARDAX |
| UD102820S | AS-PL |
| UD30040S | AS-PL |
Video/Publications
