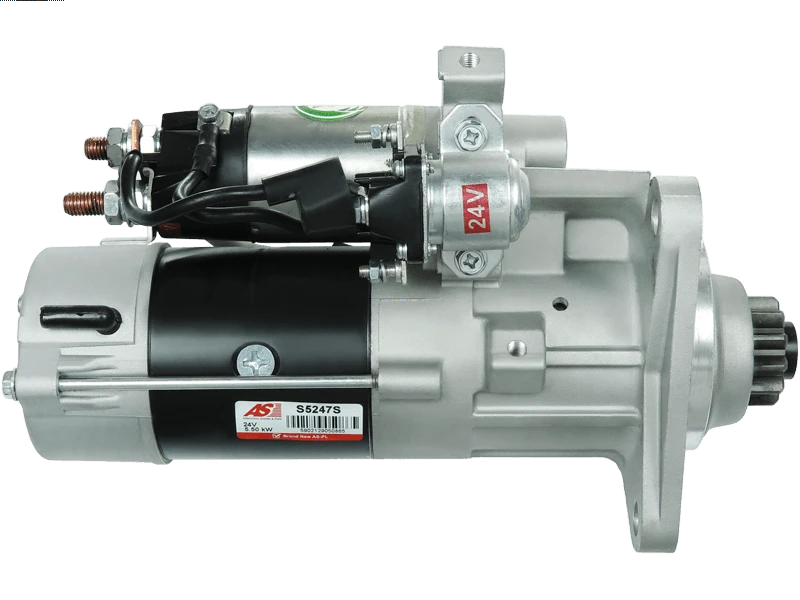

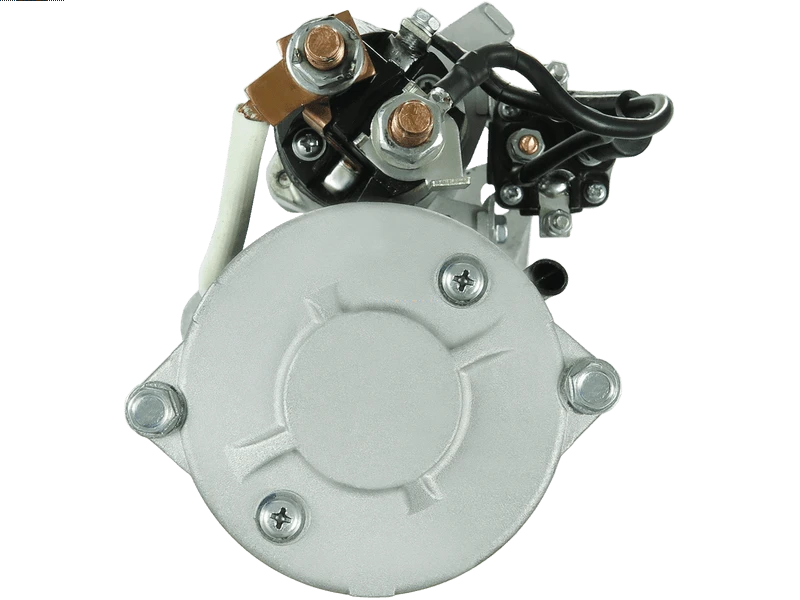

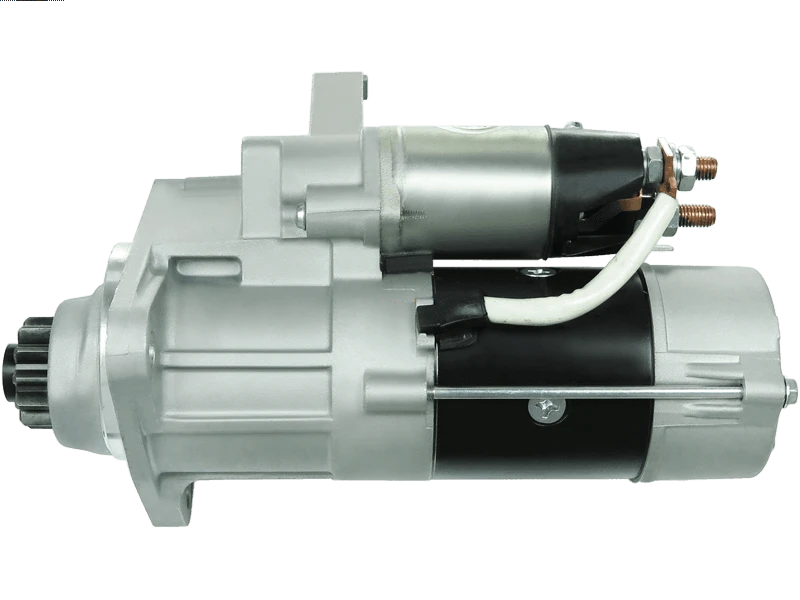

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 691.15 including GST
NZ$ 601.00 excluding GST
or four payments of $172.79
with
Learn More
each
S5247S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M9T68871Associated Numbers
11.139.622 130-90128 19081035 20851685 21632129 21934636 22355966 254075 254075M 255337I 255337M 6035675 811.518.123 8272 85000806 85013090 85013530 88213891 AZE4694 CST35675 CST35675AS CST35675ES CST35675GS CST35675OS CST35675RS DRS0636 IS9474 M009T64071 M009T64071ZT M009T66471 M009T66471ZT M009T67671 M009T68871 M90R3554SE M9T64071 M9T64071ZT M9T66471 M9T66471ZT M9T67671 M9T68871 MITM9T68871 MS783 S-80415 STM7071 STM8071 UD13795SSpecifications
| Kilowatt | 5.50 kW |
| Length (L.1) | 320 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 400 T 41 12.9 | [F3BE3681D] | 03.2006- |
| IVECO | 400 T 42 12.9 | [F3BE0681V] | 06.2005- |
| IVECO | 400 T 45 12.9 | [F3BE3681C] | 03.2006- |
| IVECO | 400 T 50 12.9 | [F3BE3681B] | 03.2006- |
| IVECO | 410 E 38 12.9 | [F3BE0681G] | 01.2001-11.2004 |
| IVECO | 410 E 44 12.9 | [F3BE0681C] | 01.2001-11.2004 |
| IVECO | 410 T 41 12.9 | [F3B3681D] | 06.2006- |
| IVECO | 410 T 41 12.9 | [F3BE3681D] | 03.2006- |
| IVECO | 410 T 44 12.8 | [F3BE0681C] | 06.2005- |
| IVECO | 410 T 45 12.9 | [F3B3681C] | 06.2006- |
| IVECO | 410 T 45 12.9 | [F3B3681C] | 07.2007- |
| IVECO | 410 T 45 12.9 | [F3BE3681C] | 03.2006- |
| IVECO | 410 T 50 12.9 | [F3BE0681B] | 06.2006- |
| IVECO | 410 T 50 12.9 | [F3BE3681B] | 03.2006- |
| IVECO | 440 E 39 10.3 | [F3AE0681E] | 11.1999- |
| IVECO | 440 E 43 10.3 | [F3AE0681D] | 11.1999- |
| IVECO | 440 E 43 10.3 | [F3AE0681D] | 11.1999-02.2002 |
| IVECO | 440 E 48 12.9 | [F3BE0681E] | 01.2001-02.2002 |
| IVECO | 440 S 40 10.3 | [F3AE0681B] | 02.2002- |
| IVECO | 440 S 40 10.3 | [F3AE0681B] | 06.2003- |
| IVECO | 440 S 42 10.3 | [F3A3681B] | 07.2006- |
| IVECO | 440 S 42 10.3 | [F3A3681B] | 12.2006- |
| IVECO | 440 S 43 10.3 | [F3AE0681D] | 02.2002- |
| IVECO | 440 S 43 10.3 | [F3AE0681D] | 06.2003- |
| IVECO | 440 S 45 10.3 | [F3A3681A] | 07.2006- |
| IVECO | 440 S 45 10.3 | [F3A3681A] | 12.2006- |
| IVECO | 440 S 48 12.9 | [F3BE0681E] | 02.2002- |
| IVECO | 440 S 50 12.9 | [F3B3681B] | 07.2006- |
| IVECO | 440 S 50 12.9 | [F3B3681B] | 12.2006- |
| IVECO | 440 S 54 12.9 | [F3BE0681A] | 02.2002- |
| IVECO | 440 S 56 12.9 | [F3B3681A] | 07.2006- |
| IVECO | 440 S 56 12.9 | [F3B3681A] | 12.2006- |
| IVECO | 440 T 41 12.9 | [F3BE3681D] | 03.2006- |
| IVECO | 440 T 45 12.9 | [F3BE3681C] | 03.2006- |
| IVECO | 440 T 50 12.9 | [F3BE3681B] | 03.2006- |
| IVECO | 720 T 41 12.9 | [F3BE3681D] | 03.2006- |
| IVECO | 720 T 42 12.9 | [F3BE0681V] | 04.2005- |
| IVECO | 720 T 42 12.9 | [F3BE0681V] | 06.2005- |
| IVECO | 720 T 45 12.9 | [F3BE3681C] | 03.2006- |
| IVECO | 720 T 50 12.9 | [F3BE3681B] | 03.2006- |
Reference Information
| 11.139.622 | ISKRA / LETRIKA |
| 130-90128 | ROBERT'S |
| 19081035 | DELCO |
| 20851685 | VOLVO |
| 21632129 | VOLVO |
| 21934636 | VOLVO |
| 22355966 | VOLVO |
| 254075 | KUHNER |
| 254075M | KUHNER |
| 255337I | KUHNER |
| 255337M | KUHNER |
| 6035675 | SANDO |
| 811.518.123 | PSH |
| 8272 | CEVAM |
| 85000806 | VOLVO |
| 85013090 | VOLVO |
| 85013530 | VOLVO |
| 85020306 | VOLVO |
| 88213891 | POWERMAX |
| AZE4694 | ISKRA / LETRIKA |
| CST35675 | CASCO |
| CST35675AS | CASCO |
| CST35675ES | CASCO |
| CST35675GS | CASCO |
| CST35675OS | CASCO |
| CST35675RS | CASCO |
| DRS0636 | DELCO |
| IS9474 | ISKRA / LETRIKA |
| M009T64071 | MITSUBISHI |
| M009T64071ZT | MITSUBISHI |
| M009T66471 | MITSUBISHI |
| M009T66471ZT | MITSUBISHI |
| M009T67671 | MITSUBISHI |
| M009T68871 | MITSUBISHI |
| M90R3554SE | PRESTOLITE |
| M9T64071 | MITSUBISHI |
| M9T64071ZT | MITSUBISHI |
| M9T66471 | MITSUBISHI |
| M9T66471ZT | MITSUBISHI |
| M9T67671 | MITSUBISHI |
| M9T68871 | MITSUBISHI |
| M9T68871AM | MITSUBISHI |
| M9T68871ZZ9 | MITSUBISHI |
| MITM9T68871 | WOODAUTO |
| MS783 | MAHLE |
| S-80415 | DIXIE |
| STM7071 | KRAUF |
| STM8071 | KRAUF |
| STR5395 | ELECTROLOG |
| STRE492 | 3EFFE |
| UD13795S | AS-PL |
Video/Publications
