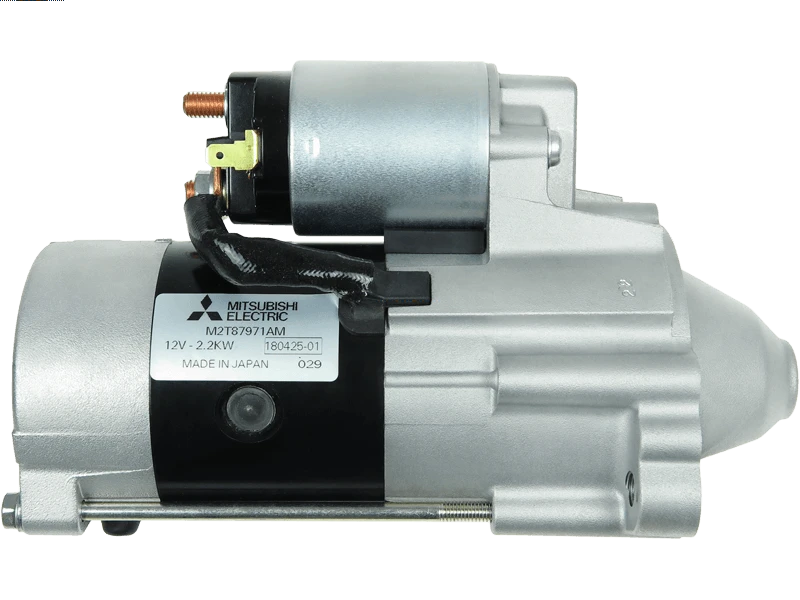

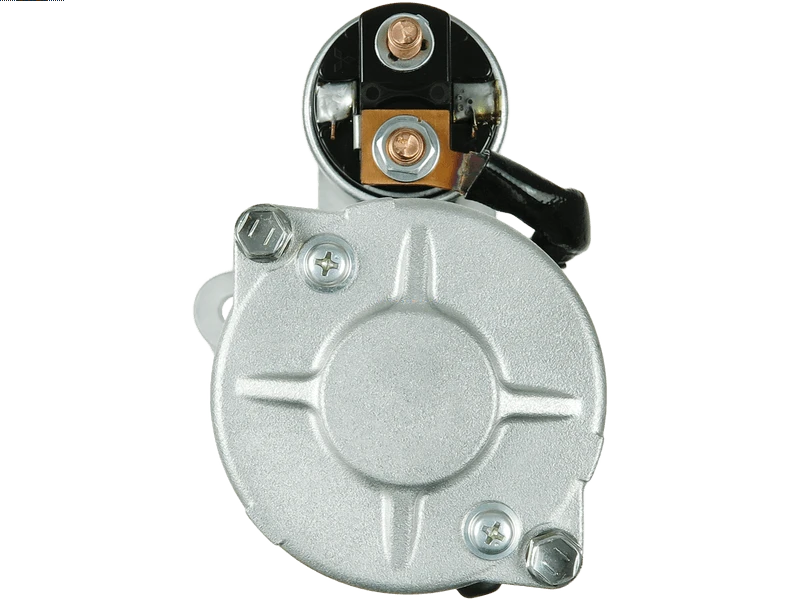

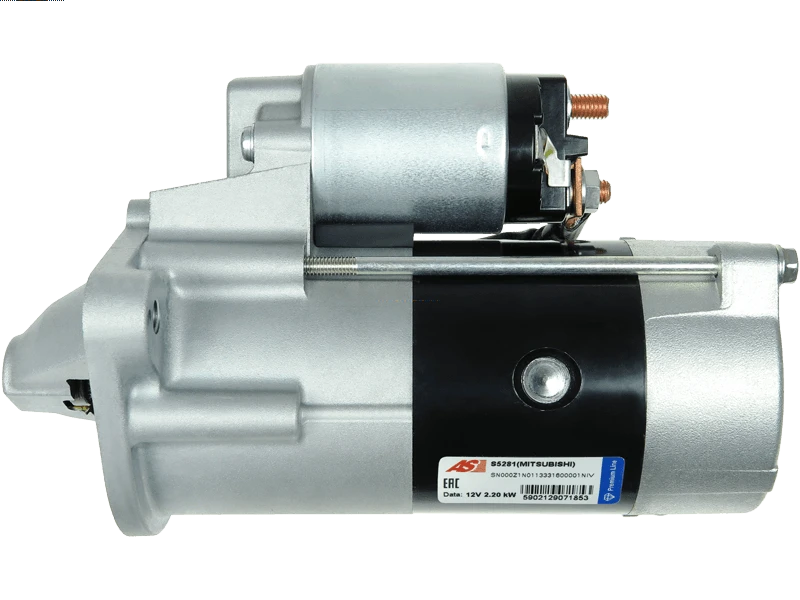

S5281(MITSUBISHI) - Brand new OEM MITSUBISHI Starter motor

Associated Numbers

0986022720 11876 1810A053 201140 201140V 20513019 25-2211 32367N 36100-42200 36100-42300 6035137 8EA737594-001 AET1140 CST35137 CST35137AS CST35137ES CST35137GS CST35137OS CST35137RS DRS3853 DRS3853N DS4963 DS4963N JS1140 LRS01367 LRS1367 M002T84071 M002T84071ZT M002T87071 M002T87071ZT M002T87072 M002T87072ZT M002T87971 M002T88271 M2T84071 M2T84071ZT M2T87071 M2T87071ZT M2T87072 M2T87072ZT M2T87971 M2T88271 MD312857 MD312858 MD344182 MD348221 MITM2T87971 RAS34964 S-80155 TM000A30801 TM000A36001 UD14595(MITSUBISHI)S

Specifications

Kilowatt	2.20 kW
Length (L.1)	226 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	12 qty
OEM Product	Yes
Pinion at Rest (B)	3 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	77 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	Galloper 2.5 D Intercooler	[D4BH]	08.1998-
HYUNDAI	H100 2.5 D	[D4BA]	07.1993-12.1994
HYUNDAI	H100 2.5 D	[D4BA]	12.1994-03.2000
HYUNDAI	H100 2.5 D	[D4BB]	12.1994-03.2000
HYUNDAI	H100 2.5 D	[D4BX]	07.1993-12.1994
HYUNDAI	H100 2.5 TD	[D4BF]	07.1993-03.2000
HYUNDAI	H100 P 2.5 D	[D4BA]	07.1993-12.1994
HYUNDAI	H100 P 2.5 D	[D4BX]	07.1993-12.1994
HYUNDAI	H-1 2.5 TD	[D4BF]	03.2000-09.2000
HYUNDAI	H-1 2.5 TD	[D4BH]	03.2000-
HYUNDAI	H-1 2.5 TD	[D4BH]	10.2001-
HYUNDAI	H-1 Platform/Chassis 2.5 D	D4BH	06.2000-10.2006
MITSUBISHI	Colt 1.8 D	[4D65]	04.1988-05.1992
MITSUBISHI	Delica	[4D6]	01.1997-
MITSUBISHI	Galant 2.0 TD	[4D68]	11.1992-08.1996
MITSUBISHI	Galant 2.3 TD	[4D55T]	07.1983-05.1984
MITSUBISHI	Galant 2.3 TD	[4D55T]	09.1980-05.1984
MITSUBISHI	L 200 2.5 D	[4D56]	06.1996-12.2007
MITSUBISHI	L 200 2.5 Di-D	[4D56]	05.2006-
MITSUBISHI	L 200 2.5 Di-D	[4D56HP]	10.2007-
MITSUBISHI	L 200 2.5 TD 4WD	[4D56]	11.2001-12.2007
MITSUBISHI	L 200 2.5 TD 4WD	[4D56TD]	06.1996-12.2007
MITSUBISHI	L200 (K7_T, K6_T, K5_T) 2.5 D (K64T)	4D56(8V)	06.1996-12.2007
MITSUBISHI	L200 (K7_T, K6_T, K5_T) 2.5 TD 4WD (K74T)	4D56-T	08.2001-12.2007
MITSUBISHI	L200 (K7_T, K6_T, K5_T) 2.5 TD 4WD (K74T)	4D56-T	09.2001-12.2007
MITSUBISHI	L200 (K7_T, K6_T, K5_T) 2.5 TD 4WD (K74T)	4D56-TD	06.1996-12.2007
MITSUBISHI	L200 (K7_T, K6_T, K5_T) 2.5 TD (K64T)	4D56-T	08.2001-11.2005
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D 16V 4WD	4D56(16V)	04.2007-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D 4WD (KB4T)	4D56-HP	04.2010-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D 4WD (KB4T)	4D56-HP	10.2007-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D 4WD (KB4T)	4D56-HP	11.2005-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D (KA4T)	4D56(16V)	01.2010-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D (KA4T)	4D56(16V)	04.2010-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D (KA4T)	4D56-HP	04.2010-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D (KA4T)	4D56-HP	08.2007-12.2015
MITSUBISHI	L200 / TRITON (KA_T, KB_T) 2.5 DI-D (KA4T)	4D56-HP	11.2005-12.2015
MITSUBISHI	L200 / TRITON Platform/Chassis (KA_T, KB_T) 2.5 DI-D 4WD (KB4T)	4D56-HP	09.2009-12.2015
MITSUBISHI	L200 / TRITON Platform/Chassis (KA_T, KB_T) 2.5 DI-D (KA4T)	4D56(16V)	08.2007-12.2015
MITSUBISHI	L 300 2.5 D	[4D56]	11.1986-
MITSUBISHI	L 300 2.5 D	[4D56]	11.1986-02.2006
MITSUBISHI	L 300 2.5 D	[4D56]	11.1986-04.1994
MITSUBISHI	L 300 2.5 D	[4D56T]	11.1994-
MITSUBISHI	L 300 2.5 TD 4WD	[4D56T]	11.1988-
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W)	4D56(8V)	09.1991-09.2003
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W, P25W)	4D56(8V)	11.1986-05.2004
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 TD 4WD (P25W, P35W)	4D56-T	12.1987-05.2004
MITSUBISHI	L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 TD (P05W)	4D56-T	02.1987-05.2003
MITSUBISHI	L 300 III Platform/Chassis (P1_T ) 2.5 TD (P15T)	4D56-T	11.1994-04.2000
MITSUBISHI	L 300 III Van (P0_V, P1_V, P2_V) 2.5 D (P05V, P05W, P15V)	4D56(8V)	11.1986-02.2006
MITSUBISHI	L 300 III Van (P0_V, P1_V, P2_V) 2.5 D (P05V, P15V)	4D56(8V)	09.1991-09.2003
MITSUBISHI	L 300 III Van (P0_V, P1_V, P2_V) 2.5 TD 4WD (P25V)	4D56-T	11.1991-05.2003
MITSUBISHI	L 400 2.5 TD 2500	[4D56T]	06.1996-
MITSUBISHI	L 400 2.5 TD 2500	[4D56T]	09.1996-
MITSUBISHI	L 400 2.5 TD 2500 4WD	[4D56T]	09.1996-
MITSUBISHI	L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2500 TD (PA5W)	4D56-T	05.1995-06.2005
MITSUBISHI	L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.5 TD 4WD (PD5V/W)	4D56-TD	05.1995-05.2000
MITSUBISHI	L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.5 TD (PA5V/W, PB5V)	4D56-TD	05.1995-05.2000
MITSUBISHI	L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) 2500 TD 4WD (PD5W, PD5V, PA5W, PA5V)	4D56-T	09.1996-06.2005
MITSUBISHI	L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) 2500 TD (PD5W, PD5V, PA5W, PA5V)	4D56-T	09.1996-06.2005
MITSUBISHI	Lancer 1.8 D	[4D65]	04.1988-05.1992
MITSUBISHI	Lancer 1.8 D	[4D65]	08.1986-06.1992
MITSUBISHI	Libero	[4D5]	01.1997-
MITSUBISHI	Pajero 2.3 TD	[4D55T]	12.1982-04.1986
MITSUBISHI	Pajero 2.5 TD	[4D56T]	05.1986-10.1989
MITSUBISHI	Pajero 2.5 TD	[4D56T]	11.1989-11.1990
MITSUBISHI	PAJERO II Canvas Top (V2_C, V4_C) 2.5 TD 4WD (V24C)	4D56-TD	12.1990-04.2000
MITSUBISHI	PAJERO II (V3_W, V2_W, V4_W, V5_W) 2.5 TD 4WD (V24W)	4D56-TD	12.1990-10.1999
MITSUBISHI	PAJERO II (V3_W, V2_W, V4_W, V5_W) 2.5 TDiC (V44W, V24W)	4D56-T	03.1991-08.1999
MITSUBISHI	Space Gear 2.5 TD	[4D56TD]	05.1995-05.2000
MITSUBISHI	Space Gear 2.5 TD 4WD	[4D56TD]	05.1995-
MITSUBISHI	Space Runner 2.0 TD GLX	[4D68T]	10.1992-08.1999
MITSUBISHI	Space Wagon 1.8 TD	[4D65T]	10.1991-10.1998
MITSUBISHI	Space Wagon 2.0 TD	[4D68T]	10.1992-10.1998
PROTON	Persona 420 2.0 D	[4D68]	09.1996-
PROTON	Persona 420 2.0 D GLS	[4D68]	05.1996-

Reference Information

10035137OV	ITAB AUTOMOTIVE
11040111	EUROTEC
150.511.122.370	WAI
20437731OE	REAL
25-2211	ELSTOCK
3111847	HENKEL PARTS
326024102	DRI
6035137.1	SANDO
8080106	FRIESEN
CST35137GS	CASCO
LRS01367	LUCAS
LRS1367	LUCAS
M002T87971	MITSUBISHI
M002T87971AM	MITSUBISHI
M2T87971	MITSUBISHI
M2T87971AM	MITSUBISHI
MD344182	MITSUBISHI
SMI137	AUTOTEAM
SMI137A	AUTOTEAM
ST00863	TMI
STM687	ROLLCO
STR5105	ELECTROLOG
STX200252	STARDAX
STX200252R	STARDAX
UD14595(MITSUBISHI)S	AS-PL
