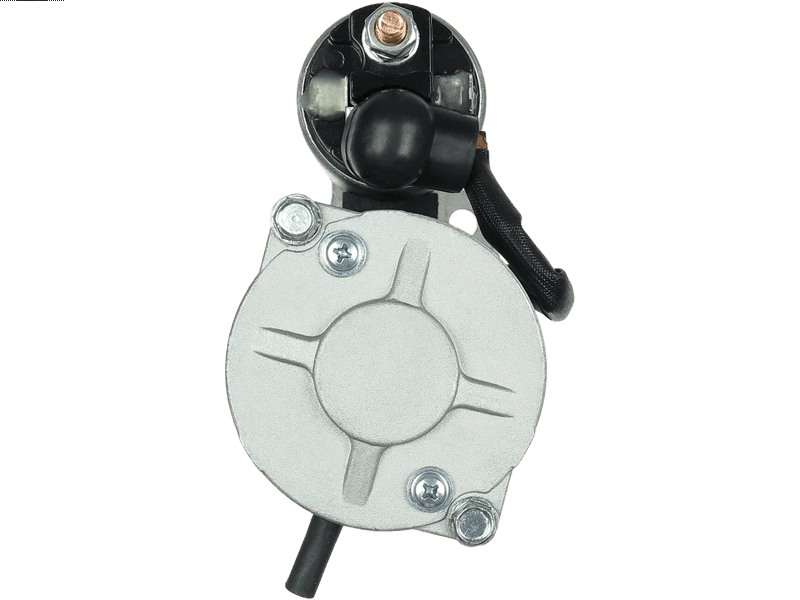

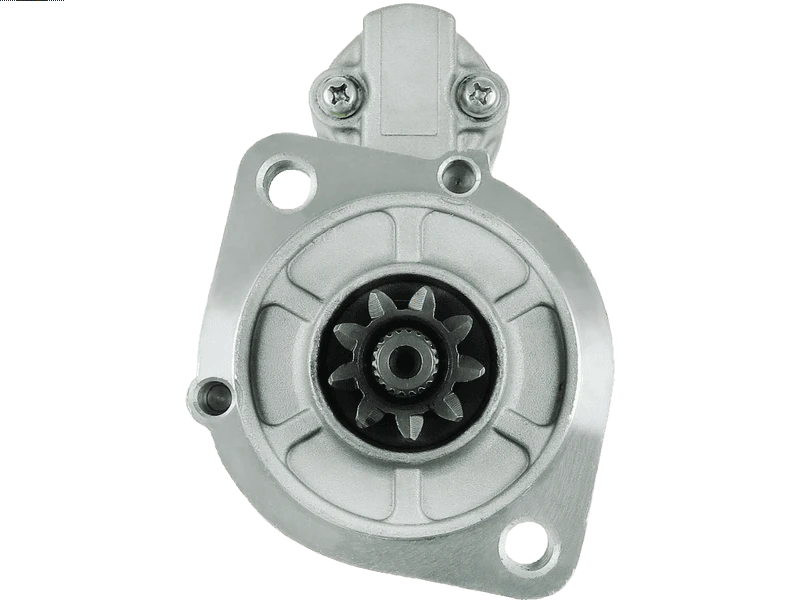

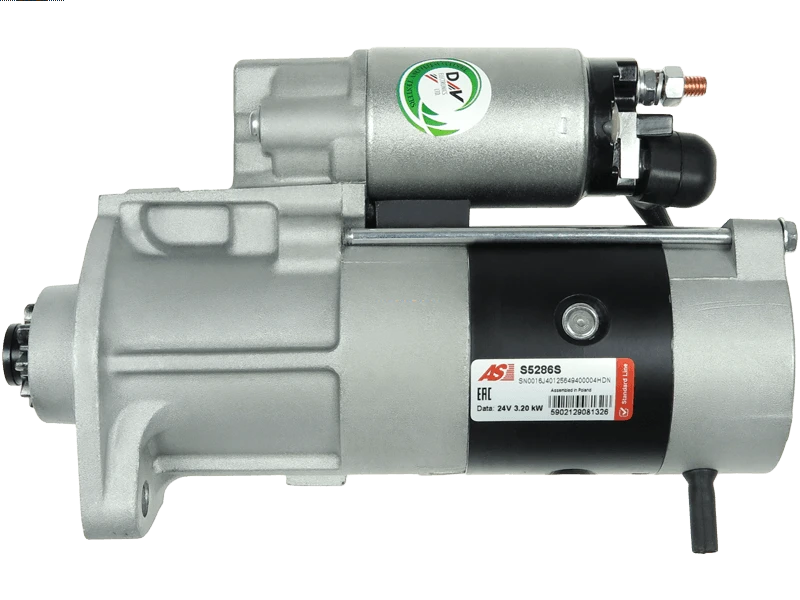

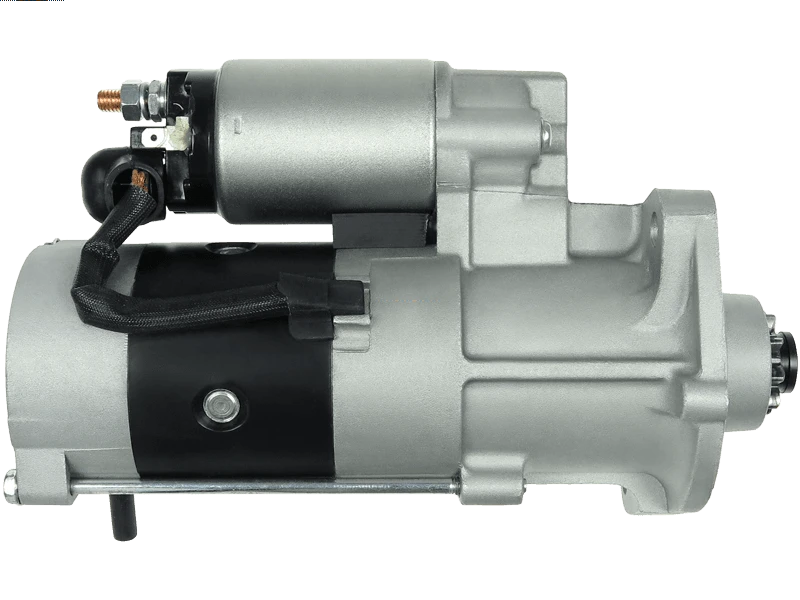

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 515.68 including GST
NZ$ 448.42 excluding GST
or four payments of $128.92
with
Learn More
each
S5286S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M8T80871Associated Numbers
1K011-63010 1K011-63011 1K011-63012 243-22212 255993 6035687 691.508.092 CST35687 CST35687AS CST35687ES CST35687GS CST35687OS CST35687RS EAA-121169 M008T80871 M8T80871 STM8871 STM9871 UD14929S UNIT BOM 103-461
18965 Lester
1K01163010 Kubota
1K01163011 VW
1K01163013 Kubota
691508092 PSH
M008T80871 Mitsubishi
M008T80872 Mitsubishi
M008T80872AM Mitsubishi
M008T80874 Mitsubishi
M008T80874AM Mitsubishi
M8T80871 Mitsubishi
M8T80871SEL +line
M8T80872 Mitsubishi
M8T80872AM Mitsubishi
M8T80874 Mitsubishi
M8T80874AM Mitsubishi
Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 260 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KUBOTA | Engine | [V3000] | |
| KUBOTA | Engine 3.3 | [V3300] | |
| KUBOTA | Various Models | [V3000] |
Reference Information
| 18965N | WAI / TRANSPO |
| 1K011-63010 | KUBOTA |
| 1K011-63011 | KUBOTA |
| 1K011-63012 | KUBOTA |
| 1K011-63013 | KUBOTA |
| 20437786OE | REAL |
| 243-22212 | DIXIE |
| 255993 | KUHNER |
| 255993M | KUHNER |
| 336414 | LOGISTIK |
| 6035687.1 | SANDO |
| 691.508.092.130 | PSH |
| 691.508.092.265 | PSH |
| 691.508.092.370 | PSH |
| CST35687GS | CASCO |
| M008T80871 | MITSUBISHI |
| M008T80872 | MITSUBISHI |
| M008T80872AM | MITSUBISHI |
| M008T80874 | MITSUBISHI |
| M008T80874AM | MITSUBISHI |
| M8T80871 | MITSUBISHI |
| M8T80872 | MITSUBISHI |
| M8T80872AM | MITSUBISHI |
| M8T80874 | MITSUBISHI |
| M8T80874AM | MITSUBISHI |
| MAV376870 | SIOM |
| MITM8T80874 | WOODAUTO |
| PRSF645 | 3EFFE |
| S134.727 | PSH |
| S144.386 | PSH |
| STM8871 | KRAUF |
| STR5408 | ELECTROLOG |
| STR71103 | WOODAUTO |
| STRF645 | 3EFFE |
| UD14929S | AS-PL |
