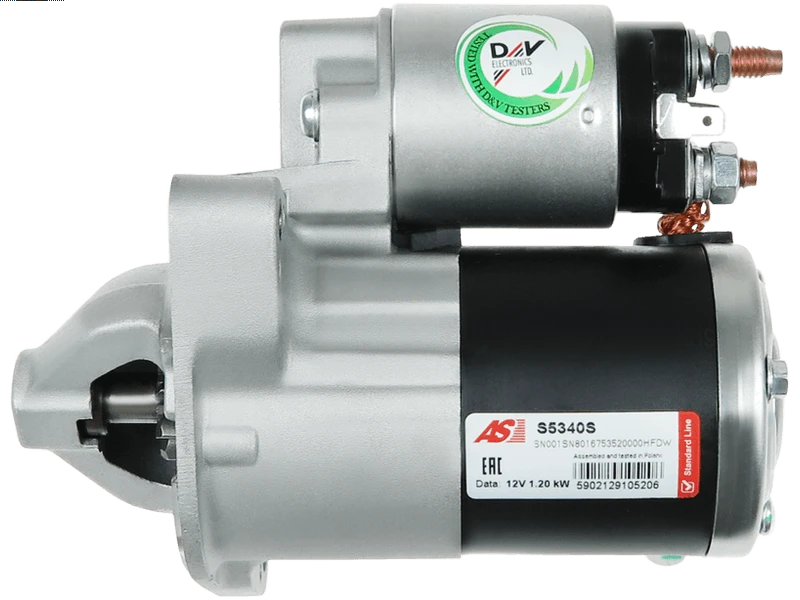

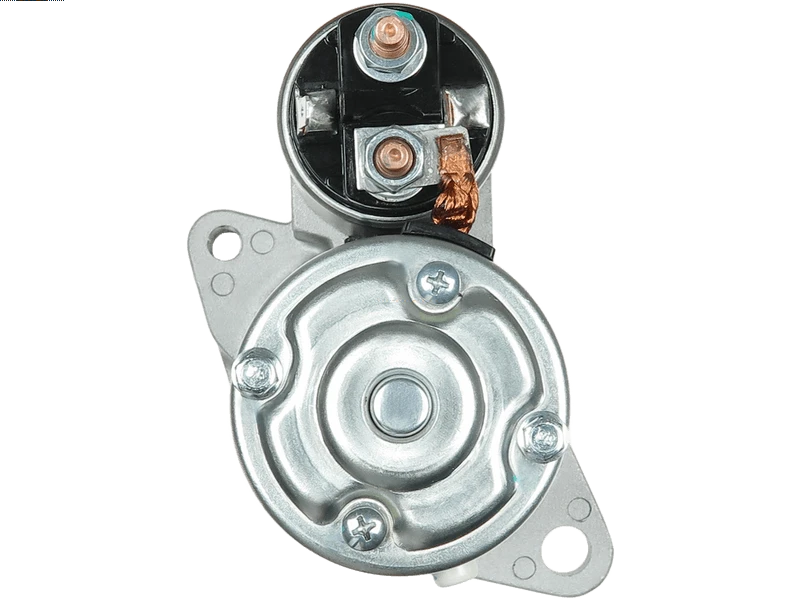

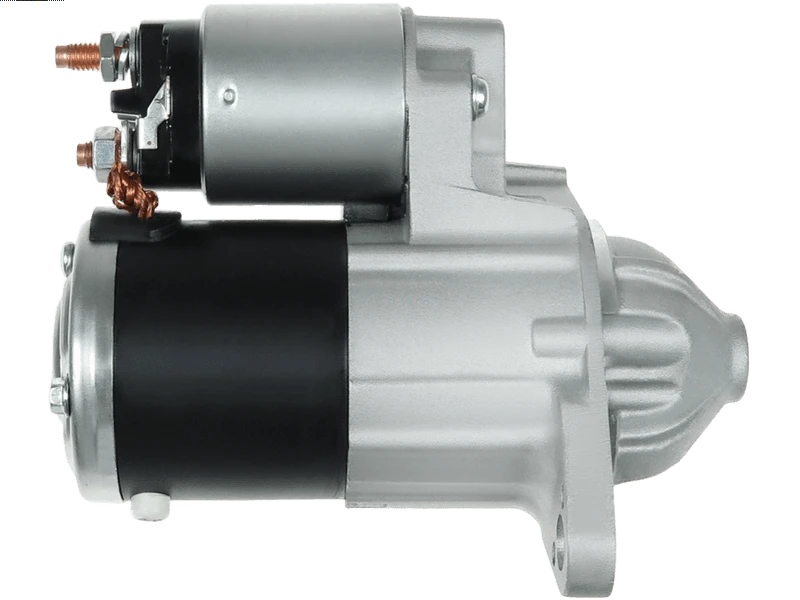

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 245.23 including GST
NZ$ 213.24 excluding GST
or four payments of $61.31
with
Learn More
each
S5340S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T30672Associated Numbers
05033141AB 17873N 17873R 25-3442 254616 5033141AB 830.589.082 91-27-3382 DRS0404 DS1514 LRS02271 M000T30672 M000T30672ZC M0T30672 M0T30672ZC S-80009 STM1214 STM3672 UD20387S 50-012
Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 174 mm |
| Mount Hole Center - Center (O.1) | 119.50 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | PT Cruiser 2.4 GT | [EDV] | 03.2004-03.2008 |
| CHRYSLER | PT Cruiser 2.4 GT | [EDV] | 08.2003-12.2010 |
Reference Information
| 05033141AB | CHRYSLER |
| 17873N | WAI / TRANSPO |
| 17873R | WAI / TRANSPO |
| 25-3442 | ELSTOCK |
| 254616 | KUHNER |
| 336559 | LOGISTIK |
| 5033141AB | CHRYSLER |
| 830.589.082 | PSH |
| 91-27-3382 | WILSON |
| ANM12624X | ANDEL |
| DRS0404 | DELCO |
| DS1514 | DELCO |
| LRS02271 | LUCAS |
| LRS2271 | LUCAS |
| M000T30672 | MITSUBISHI |
| M000T30672ZC | MITSUBISHI |
| M0T30672 | MITSUBISHI |
| M0T30672ZC | MITSUBISHI |
| S135.669 | PSH |
| S-80009 | DIXIE |
| STM1214 | ROLLCO |
| STM3672 | KRAUF |
| STR5200 | ELECTROLOG |
| STRF546 | 3EFFE |
| STX210332 | STARDAX |
| STX210332R | STARDAX |
| UD20387S | AS-PL |
Video/Publications
S5340SView your shopping basket or Browse other items in Starter Motors.
