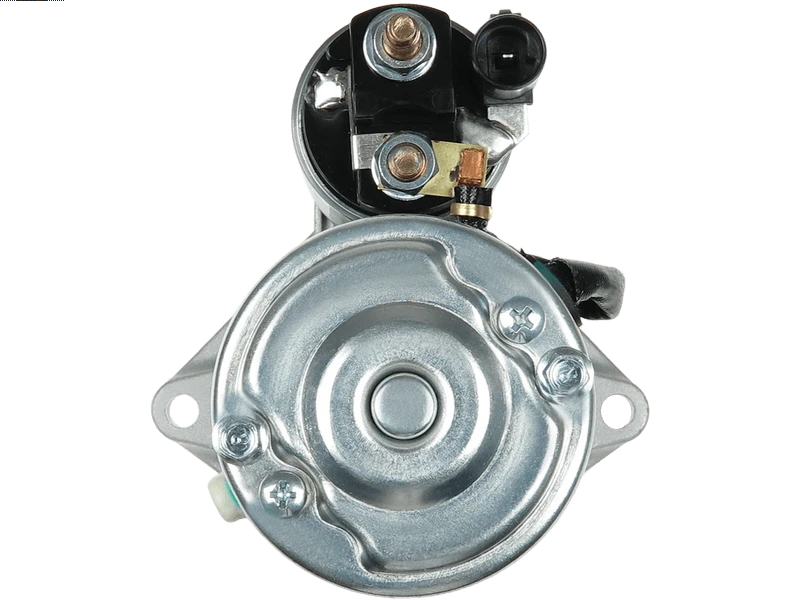

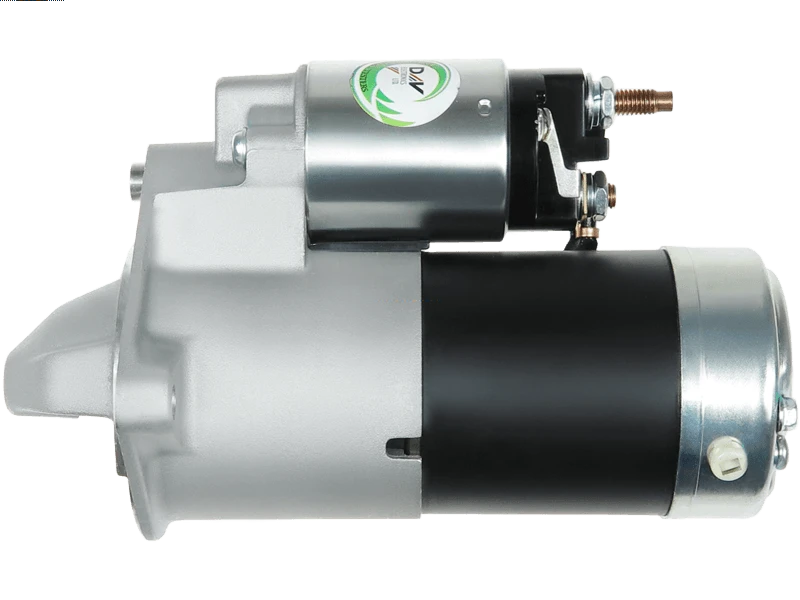

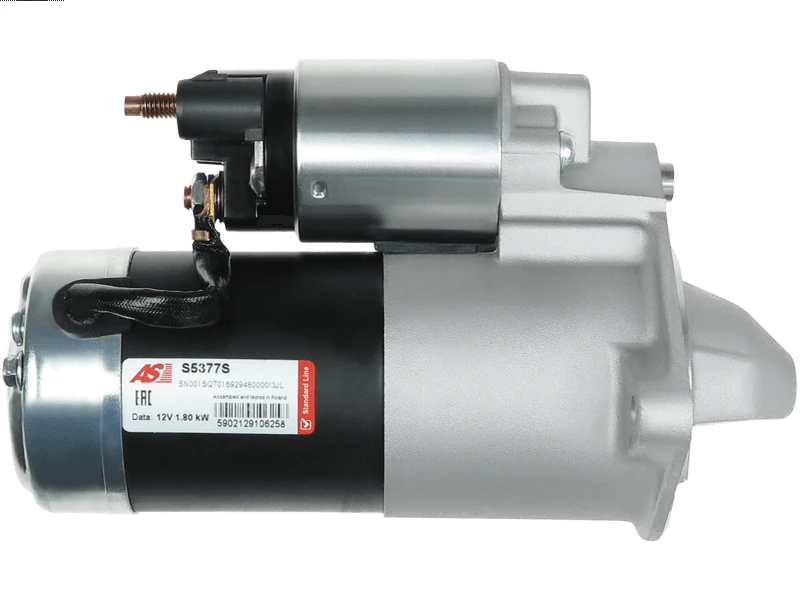

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 244.62 including GST
NZ$ 212.71 excluding GST
or four payments of $61.16
with
Learn More
each
S5377S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M1T31171Associated Numbers
12352 20437982 220855 25-4380 255211 56029591AB 6035289 830.937.102 88214624 CST35289 CST35289AS CST35289ES CST35289GS CST35289OS CST35289RS DRS0926 DRS0926N DS2036 DS2036N K56029591AB LRS02708 M001T31171 M001T31171ZC M1T31171 M1T31171ZC MITM1T31171 RAS31037 STM7113 STR71319 UD20470SSpecifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 220.50 mm |
| Mount Hole Center - Center (O.1) | 82 mm |
| Mount Hole Center - Center (O.2) | 116 mm |
| Mount Hole Center - Center (O.3) | 82 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| Mount Hole Diameter (C.3) | 8.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 4.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Freemont 2.0 JTD | [939B5.000] | 08.2011- |
| FIAT | Freemont 2.0 JTD | [940A5.000] | 08.2011- |
| FIAT | Freemont 2.0 JTD 4x4 | [939B5.000] | 08.2011- |
| FIAT | Freemont 2.0 JTD 4x4 | [940A5.000] | 08.2011- |
| LANCIA | Delta 2.0 D Multijet | [198A5.000] | 09.2008-08.2014 |
| LANCIA | Delta 2.0 D Multijet | [198A8.000] | 09.2008-08.2014 |
Reference Information
| 12352 | EAI |
| 20437982 | REAL |
| 220855 | ERA |
| 25-4380 | ELSTOCK |
| 255211 | KUHNER |
| 336585 | LOGISTIK |
| 56029591AB | CHRYSLER |
| 6035289 | SANDO |
| 830.937.102 | PSH |
| 88214624 | POWERMAX |
| CST35289 | CASCO |
| CST35289AS | CASCO |
| CST35289ES | CASCO |
| CST35289GS | CASCO |
| CST35289OS | CASCO |
| CST35289RS | CASCO |
| DRS0926 | DELCO |
| DRS0926N | DELCO |
| DS2036 | DELCO |
| DS2036N | DELCO |
| K56029591AB | CHRYSLER |
| LRS02708 | LUCAS |
| LRS2708 | LUCAS |
| M001T31171 | MITSUBISHI |
| M001T31171ZC | MITSUBISHI |
| M1T31171 | MITSUBISHI |
| M1T31171ZC | MITSUBISHI |
| MITM1T31171 | WOODAUTO |
| RAS31037 | DELCO |
| RNLM1T31171 | RNL |
| S12MH0827A2 | SIDAT |
| S5377S | AS-PL |
| STM7113 | KRAUF |
| STR71319 | WOODAUTO |
| STRE101 | 3EFFE |
| UD20470S | AS-PL |
Video/Publications
