Associated Numbers
04606875AA 04606875AB 04606875AC 17832N 25-4338 255101 4606875AA 4606875AB 4606875AC 830.967.103 91-27-3375 EAA-121446 K04606875AC LRS02666 M001T86281 M001T86281ZC M001T86282 M001T86282ZC M1T86281 M1T86281ZC M1T86282 M1T86282ZC STM6875 UD20453SSpecifications

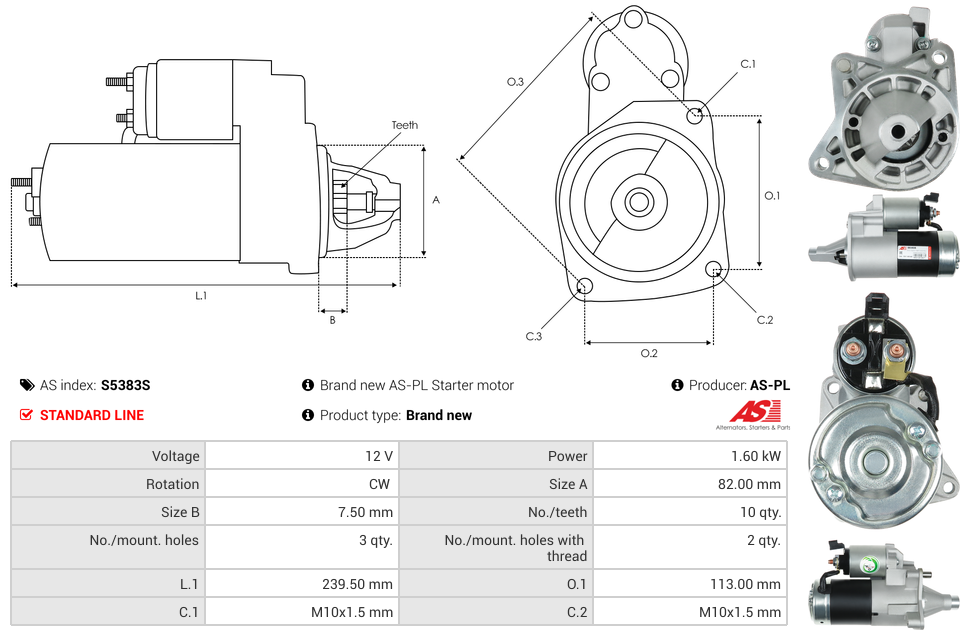

Kilowatt | 1.6 kW |
Length (L.1) | 239.5 mm |
Mount Hole Center - Center (O.1) | 113 mm |
Mount Hole Diameter (C.1) | M10x1.5 mm |
Mount Hole Diameter (C.2) | M10x1.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 7.5 mm |
Rotation | CW |
Spigot Diameter (A) | 82 mm |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CHRYSLER | Sebring 2.7 V6 24V | [EER] | 01.2001-12.2007 |
CHRYSLER | Sebring 2.7 V6 24V | [EES] | 01.2001-12.2007 |
DODGE | Stratus 2.7 V6 | 01.2001-12.2002 |
Reference Information
17832N STRJ519 4606875AB 4606875AA M1T86281 M1T86282 04606875AA 25-4338 04606875AB 4606875AC 830.967.103 K04606875AC LRS2666 M001T86282 M001T86281 M001T86281ZC M001T86282ZC 04606875AC EAA-121446 046096875AB LRS02666 046096875AC UD20453S 255101 M1T86281ZC M1T86282ZC 91-27-3375 STM6875Video/Publications
04606875AA 04606875AB 04606875AC 17832N 25-4338 255101 830.967.103 91-27-3375 EAA-121446 K04606875AC LRS02666 LRS2666 M001T86281 M001T86281ZC M001T86282 M001T86282ZC M1T86281 M1T86281ZC M1T86282 M1T86282ZC STM6875 STRJ519 UD20453SAdd Your Number
