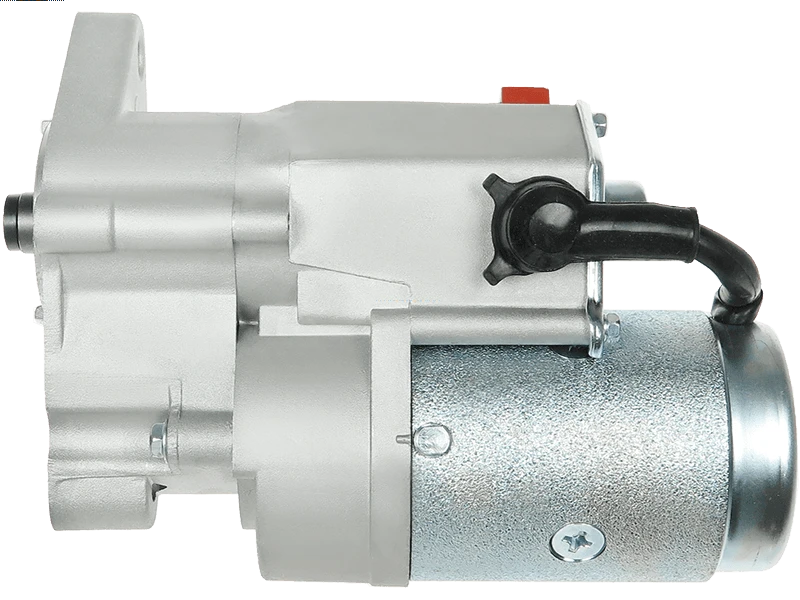

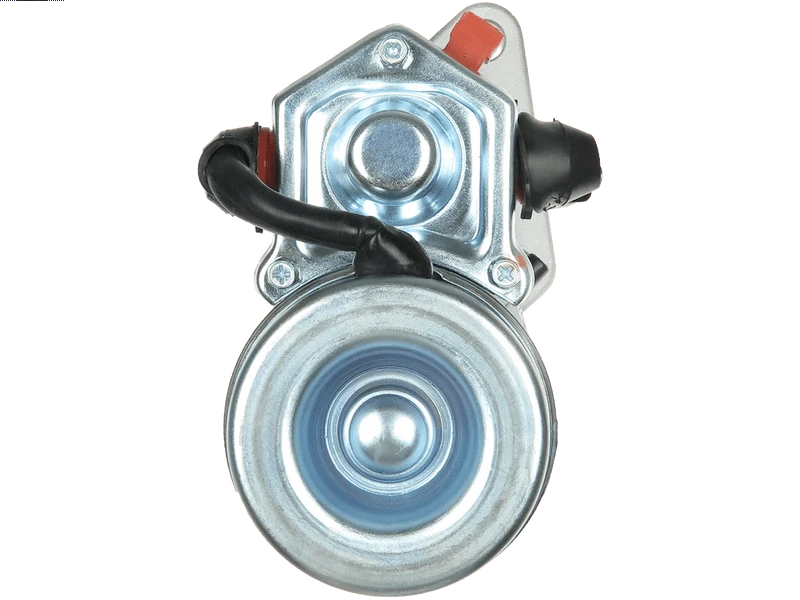

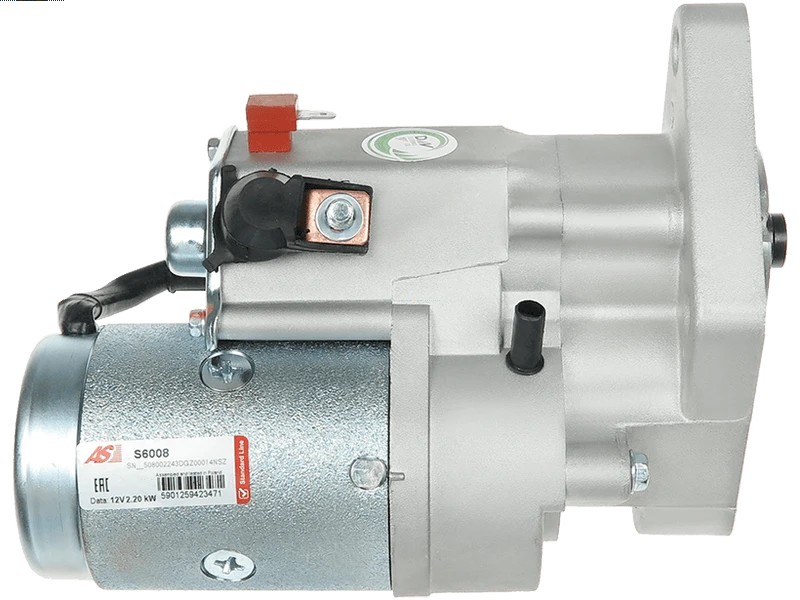

S6008 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S6008
Price: 379.63 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DENSO

Price:

NZ$ 379.63 including GST

NZ$ 330.12 excluding GST

UOM:

each

Product Code:

S6008

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

03111-4140 0986022770 0K55218400 0K55218400A 113327 12013 201298 20428101OE 20428101RE 20513020 22.1298 22.1298M 25-3150 32623N 6041101 8070300 8212931 88212931 8EA011610-731 8EA738042-001 9785 AET1298 CST41101GS CST41101OS DRS3924 DRS3924N EAA-121017 JS1298 LRS01623 OK552-18-400 OK552-18-400A OK55218400A SS525 STR75000 32623R

Kilowatt	2.2 kW
Length (L.1)	236 mm
Mount Hole Center - Center (O.1)	75 mm
Mount Hole Center - Center (O.2)	83 mm
Mount Hole Center - Center (O.3)	140 mm
Mount Hole Diameter (C.1)	M12x1.5 mm
Mount Hole Diameter (C.2)	M12x1.5 mm
Mount Hole Diameter (C.3)	13.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	5 mm
Rotation	CW
Spigot Diameter (A)	64 mm
Unit Type	DENSO
Voltage	12 V

Make	Model	Type	Year
KIA	Carnival 2.9 CRDi	[J3]	10.2001-
KIA	Carnival 2.9 HPDi		10.2001-
KIA	Carnival 2.9 TD	[J3]	06.1998-

RNL1298JS 9785 MAV431010 OK55318400 ANM16144X 22.1298 220352 EAA-121017 8EA738042-001 STR6902 20428101RE DRS3924 5040170 MTM943 361004X100 8EA011610-731 88212931 LRS01623 113327 000986022770 22.1298M 8212931 JS1298 OK553-18-400 336148 201298 6041101 36100-4X100 25-3150 03111-4140 STR75000 S6008 OK55218400A 3M943 0K55218400 STRL085 20513020 12013 986022770 AET1298 DRS3924N LRS1623 CST41101OS SS525 8070300 CGB-23250 CST41101GS OK552-18-400 003-M943 OK552-18-400A 20428101OE 32623N 0K55218400A 32623R 0K5531-8-400 0K55318400

003-M943 03111-4140 0986022770 0K55218400 0K55218400A 113327 12013 201298 20428101OE 20428101RE 20513020 22.1298 22.1298M 25-3150 32623N 32623R 3M943 6041101 8070300 8212931 88212931 8EA011610-731 8EA738042-001 9785 AET1298 CGB-23250 CST41101GS CST41101OS DRS3924 DRS3924N EAA-121017 JS1298 LRS01623 LRS1623 MAV431010 MTM943 OK552-18-400 OK552-18-400A OK55218400A RNL1298JS S6008 SS525 STR75000 STRL085 220352
