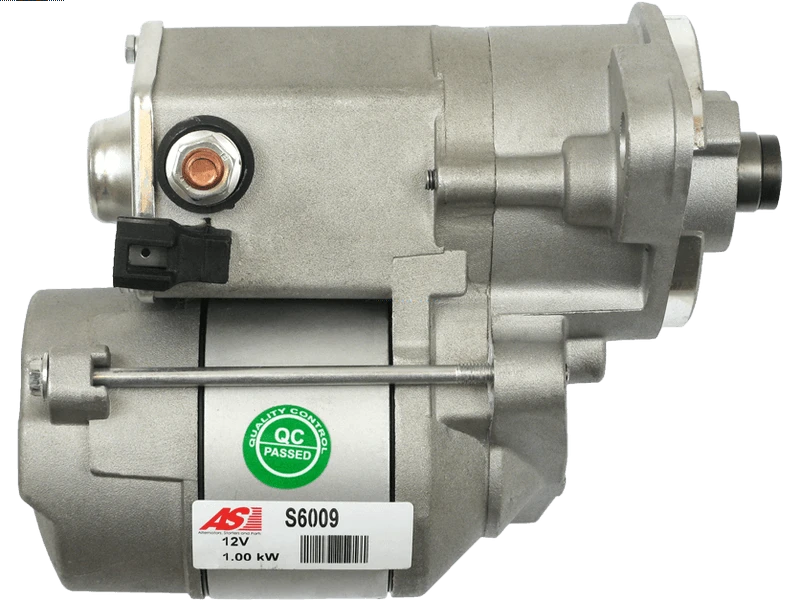

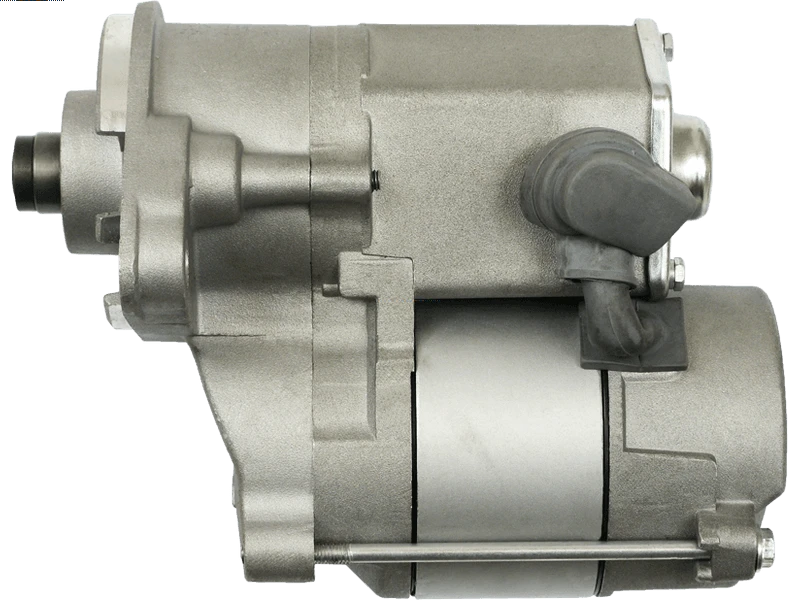

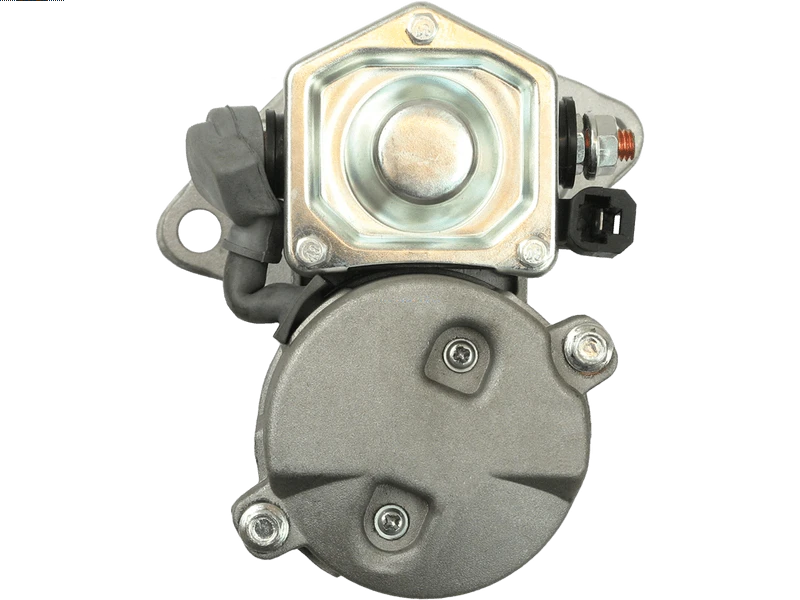

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 319.44 including GST
NZ$ 277.77 excluding GST
or four payments of $79.86
with
Learn More
each
S6009
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0280007560Associated Numbers
028000-0510 028000-5900 028000-7560 028000-9270 0986012821 110260 11503 128000-1240 128000-1241 128000-8240 128000-8241 16737N 20316 20432041BN 20432071BN 20669 22.5316 25-1253 28100-23810-71 28100-34060 28100-34080 28100-34100 28100-35020 28100-35030 455604 458621 6040140 6040170 8052223 8212506 8EA726413-001 AES6107 CST40140AS CST40170AS DRS4461 JS316 LRS00607 RNL316JS S6009 STR70038Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 180 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Celica 2.0 | (RA40)[18] | 08.1981-07.1985 |
| TOYOTA | Celica 2.0 | (RA61)[21-C] | 02.1982-08.1985 |
| TOYOTA | Celica 2.0 | (RA6)[18-G] | 01.1982-08.1985 |
| TOYOTA | Celica 2.0 | (RA6)[21-U] | 01.1982-08.1985 |
| TOYOTA | Celica 2.0 | (RA63)[18-G] | 08.1981-08.1983 |
| TOYOTA | Cressida 2.0 | [21] | 08.1982-03.1985 |
| TOYOTA | Hilux 2.4 | [22] | 06.1989-08.1997 |
| TOYOTA | Hilux 2.4 4WD | [22] | 08.1988-08.1997 |
| TOYOTA | Land Cruiser 2.4 | [22E] | 01.1990-05.1993 |
| TOYOTA | Land Cruiser 2.4 | (RJ70,73)[22] | 11.1984-12.1989 |
| VW | Taro 2.4 | [22] | 06.1989-12.1993 |
Reference Information
| 003-T194 | ASHIKA |
| 028000-0510 | DENSO |
| 028000-5900 | DENSO |
| 028000-7560 | DENSO |
| 028000-9270 | DENSO |
| 0986012821 | BOSCH |
| 110260 | CARGO |
| 11503 | EAI |
| 128000-1240 | DENSO |
| 128000-1241 | DENSO |
| 128000-8240 | DENSO |
| 128000-8241 | DENSO |
| 1516941R | DAF |
| 16737N | WAI / TRANSPO |
| 20316 | KUHNER |
| 20432071BN | REAL |
| 22.5316 | LAUBER |
| 25-1253 | ELSTOCK |
| 281002055071 | TOYOTA |
| 28100-20550-71 | TOYOTA |
| 2810020557 | TOYOTA |
| 2810020571 | TOYOTA |
| 28100-23810-71 | TOYOTA |
| 2810034030 | TOYOTA |
| 2810034040 | TOYOTA |
| 2810034041 | TOYOTA |
| 2810034042 | TOYOTA |
| 28100-34042 | TOYOTA |
| 2810034043 | TOYOTA |
| 28100-34043 | TOYOTA |
| 2810034044 | TOYOTA |
| 28100-34044 | TOYOTA |
| 2810034051 | TOYOTA |
| 2810034052 | TOYOTA |
| 28100-34052 | TOYOTA |
| 2810034053 | TOYOTA |
| 28100-34053 | TOYOTA |
| 28100-34060 | TOYOTA |
| 28100-34080 | TOYOTA |
| 2810034080R | TOYOTA |
| 28100-34100 | TOYOTA |
| 28100-35020 | TOYOTA |
| 28100-35030 | TOYOTA |
| 2810035040 | TOYOTA |
| 2810035100 | TOYOTA |
| 28100-35100 | TOYOTA |
| 3T194 | JAPKO |
| 455604 | VALEO |
| 458621 | VALEO |
| 6040140 | SANDO |
| 6040170 | SANDO |
| 8052223 | FRIESEN |
| 8212506 | POWERMAX |
| 8EA726413-001 | HELLA |
| AES6107 | AUTOELECTRO |
| ANM16681X | ANDEL |
| CGB-23258 | AINDE |
| CST40170AS | CASCO |
| DRS4461 | DELCO |
| F032110260 | CARGO |
| JS316 | HC PARTS |
| LR160-12B | HITACHI |
| LRS00607 | LUCAS |
| LRS607 | LUCAS |
| MAV5955 | SIOM |
| MTT194 | JAPANPARTS |
| RNL316JS | RNL |
| S12DE0583A2 | SIDAT |
| S6009 | AS-PL |
| STR6073 | ELECTROLOG |
| STR70038 | WOODAUTO |
| STRS875 | 3EFFE |
| STX200290 | STARDAX |
| STX201316 | STARDAX |
