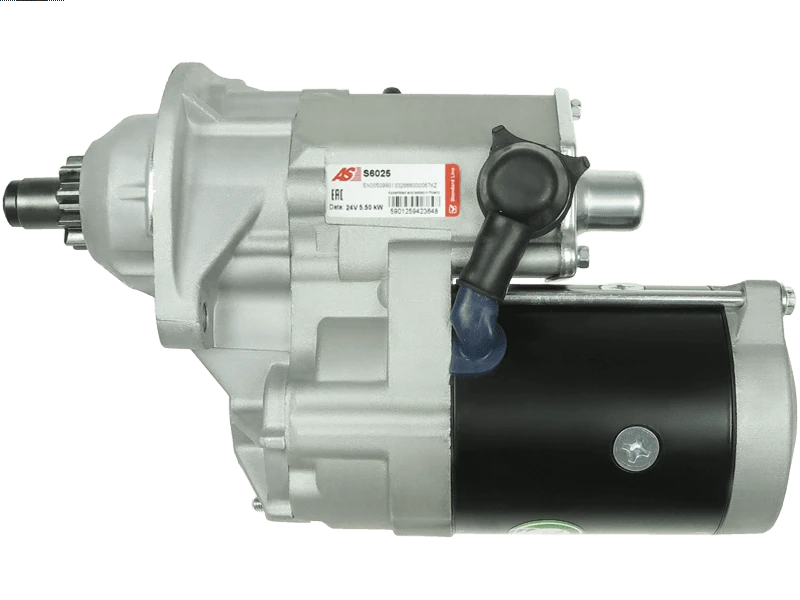

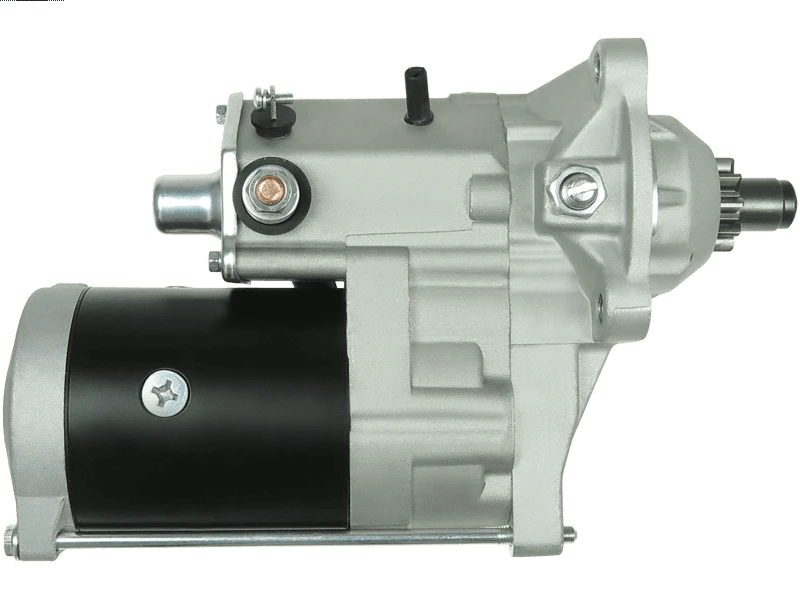

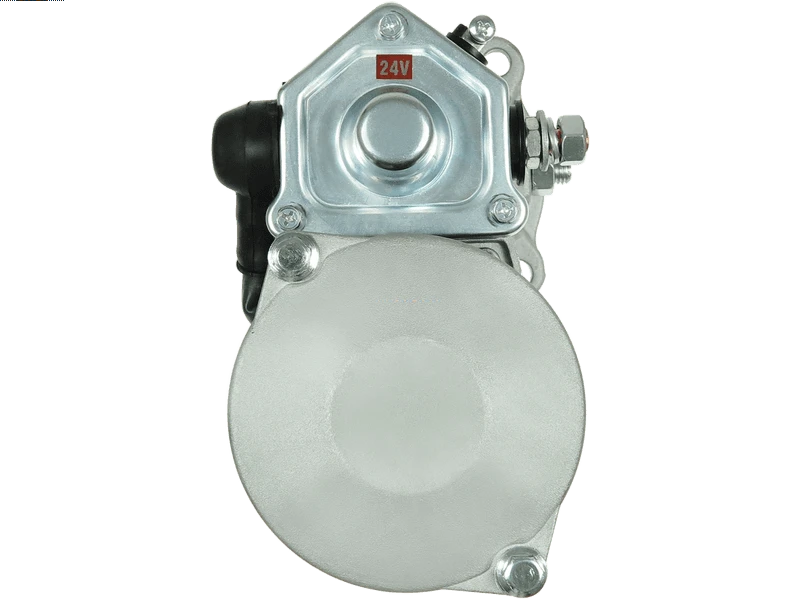

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 674.15 including GST
NZ$ 586.22 excluding GST
or four payments of $168.54
with
Learn More
each
S6025
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1280005730Associated Numbers
110944 128000-5730 128000-5731 128000-5732 17616N 20432806BN 20930 3E5381 45-2196 6040608 8C4774 8EA737131-001 9W3748 CST40608AS JS930 STR9118Specifications
| Kilowatt | 5.5 kW |
| Length (L.1) | 318 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 120B Road Scraper | ||
| CATERPILLAR | 3114 Engine | 01.1991-01.1993 | |
| CATERPILLAR | 3116 Engine | 01.1991-01.1993 |
Reference Information
| 0R4317 | CATERPILLAR |
| 110944 | CARGO |
| 1119861 | CATERPILLAR |
| 128000-5730 | DENSO |
| 128000-5731 | DENSO |
| 128000-5732 | DENSO |
| 1688125 | CATERPILLAR |
| 17616N | WAI / TRANSPO |
| 20432806BN | REAL |
| 204-9742 | CATERPILLAR |
| 20930 | KUHNER |
| 335780 | LOGISTIK |
| 3E5381 | CATERPILLAR |
| 45-2196 | ELSTOCK |
| 6040608 | SANDO |
| 6T0380 | CATERPILLAR |
| 7C5731 | CATERPILLAR |
| 8C4773 | CATERPILLAR |
| 8C4774 | CATERPILLAR |
| 8C4775 | CATERPILLAR |
| 8EA737131-001 | HELLA |
| 9W3748 | CATERPILLAR |
| 9X9955 | CATERPILLAR |
| 9X9995 | CATERPILLAR |
| CGB-23544 | AINDE |
| CST40608AS | CASCO |
| F032110944 | CARGO |
| JS930 | HC PARTS |
| MAV426080 | SIOM |
| S6025 | AS-PL |
| STR6031 | ELECTROLOG |
| STR9118 | WOODAUTO |
| STRS638 | 3EFFE |
Video/Publications
