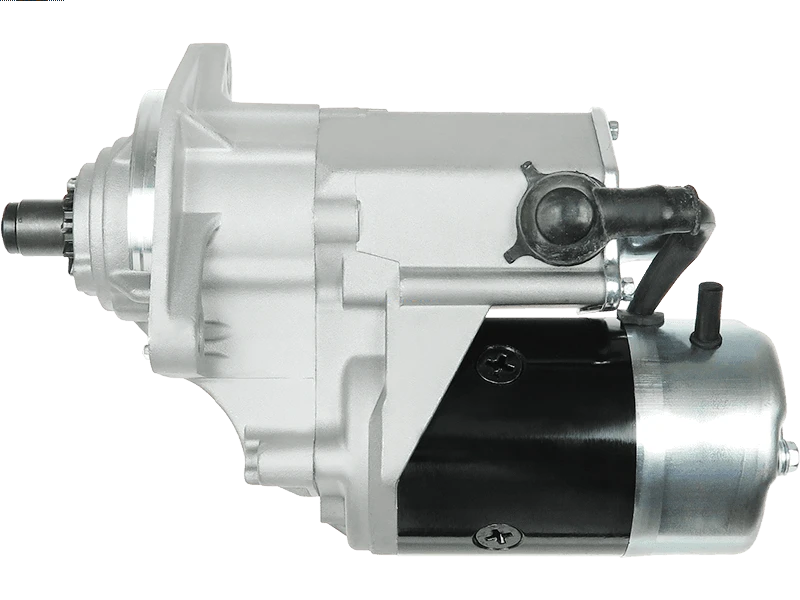

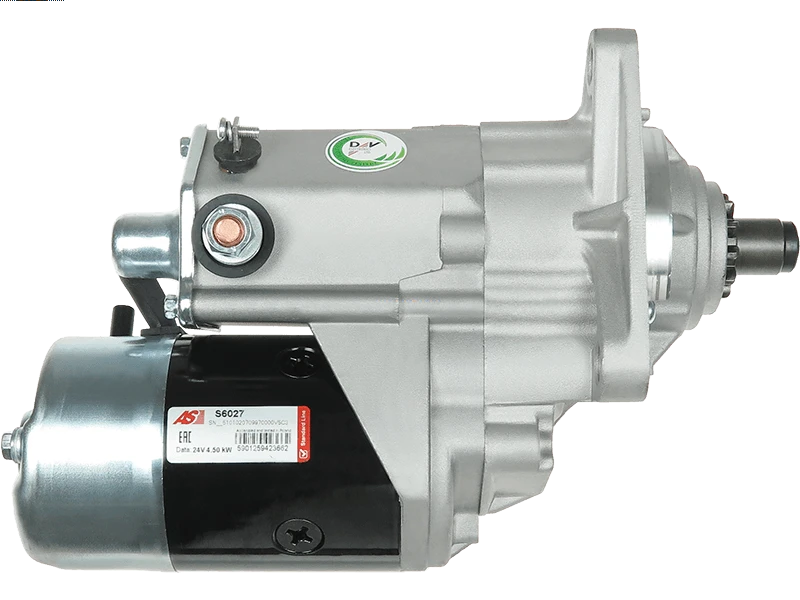

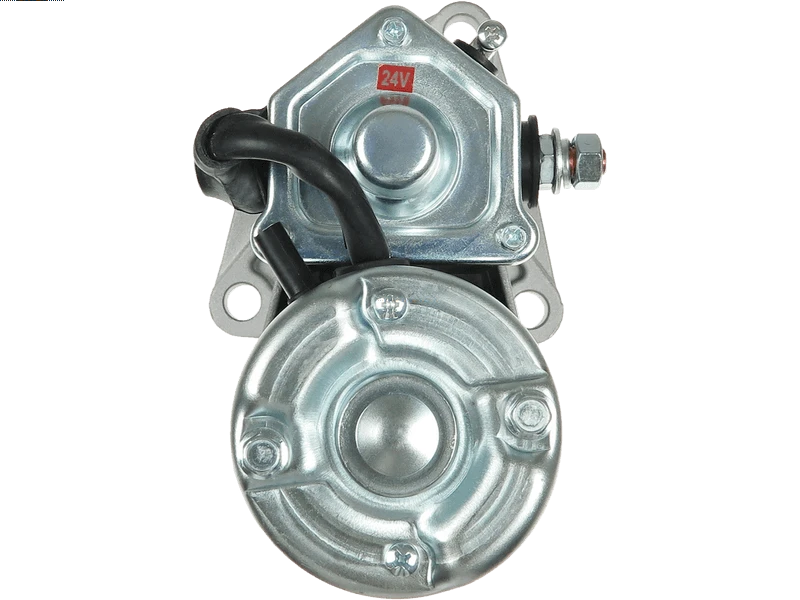

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 445.81 including GST
NZ$ 387.66 excluding GST
or four payments of $111.45
with
Learn More
each
S6027
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0-21000-3291 0-21000-3660 0-21000-3661 0-23000-1030 0-23000-1031 0-23000-1032 0-23000-1033 0-23000-1670 0-23000-3010 0-23000-3290 0-23000-3661 028000-6200 110580 18100N-ND 1811001891 18190N 20432246BN 20446106BN 20446106OE 20746 20746K 33929 45-1392 6040642 6050601 8204 8212429 8EA730287-001 AEY1872 CST40642AS CST50601AS CST50601GS DRS3217 EAA-121673 JS746 LRS01872 S25-103 STR70126Specifications
| Kilowatt | 4.50 kW |
| Length (L.1) | 296 mm |
| Mount Hole Center - Center (O.1) | 111 mm |
| Mount Hole Center - Center (O.2) | 111 mm |
| Mount Hole Center - Center (O.3) | 135 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | Engine | [6BD1] | 01.1982- |
Reference Information
| 0-21000-3291 | NIKKO |
| 0-21000-3660 | NIKKO |
| 0-21000-3661 | NIKKO |
| 0-23000-1030 | NIKKO |
| 0-23000-1031 | NIKKO |
| 0-23000-1032 | NIKKO |
| 0-23000-1033 | NIKKO |
| 0-23000-1670 | NIKKO |
| 0-23000-3010 | NIKKO |
| 0-23000-3661 | NIKKO |
| 028000-6200 | DENSO |
| 110580 | CARGO |
| 18100N-ND | WAI / TRANSPO |
| 1811001410 | ISUZU |
| 1811001411 | ISUZU |
| 1811001890 | ISUZU |
| 1811001891 | ISUZU |
| 1811001910 | ISUZU |
| 1811001911 | ISUZU |
| 1811001920 | ISUZU |
| 1811001921 | ISUZU |
| 1811002530 | ISUZU |
| 1811002531 | ISUZU |
| 1811002591 | ISUZU |
| 1811002641 | ISUZU |
| 1811004111 | ISUZU |
| 18190N | WAI / TRANSPO |
| 20432246BN | REAL |
| 20446106BN | REAL |
| 20446106OE | REAL |
| 20746 | KUHNER |
| 20746K | KUHNER |
| 220625 | ERA |
| 335374 | LOGISTIK |
| 335596 | LOGISTIK |
| 33929 | EAI |
| 45-1392 | ELSTOCK |
| 5140098 | MEAT & DORIA |
| 5811000180 | ISUZU |
| 5811000252 | ISUZU |
| 5811000360 | ISUZU |
| 5811001180 | ISUZU |
| 5811001390 | ISUZU |
| 5811001391 | ISUZU |
| 5811001560 | ISUZU |
| 5811001620 | ISUZU |
| 6040642 | SANDO |
| 6050601 | SANDO |
| 714-40280 | JCB |
| 8204 | CEVAM |
| 8212429 | POWERMAX |
| 8EA730287-001 | HELLA |
| AEY1872 | AUTOELECTRO |
| CGB-23050 | AINDE |
| CGB-23217 | AINDE |
| CST40642AS | CASCO |
| CST50601AS | CASCO |
| CST50601GS | CASCO |
| DRS3217 | DELCO |
| F032110580 | CARGO |
| JS746 | HC PARTS |
| LRS01872 | LUCAS |
| LRS1872 | LUCAS |
| MAV5740 | SIOM |
| S24DE0133A2 | SIDAT |
| S24NK0014A2 | SIDAT |
| S25100 | HITACHI |
| S25-100 | HITACHI |
| S25100A | HITACHI |
| S25-100A | HITACHI |
| S25-103 | HITACHI |
| S25135 | HITACHI |
| S25-135 | HITACHI |
| S25135A | HITACHI |
| S25-135A | HITACHI |
| S6027 | AS-PL |
| STR6403 | ELECTROLOG |
| STR70126 | WOODAUTO |
| STRW099 | 3EFFE |
