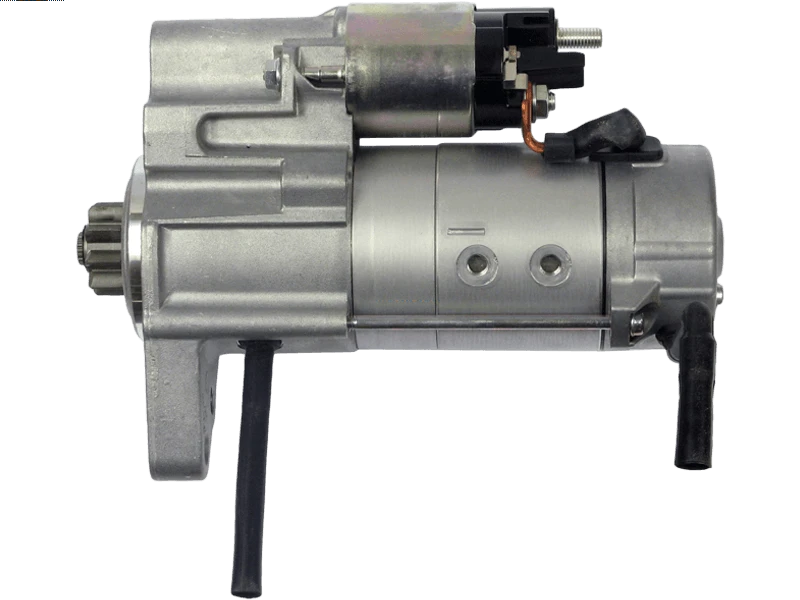

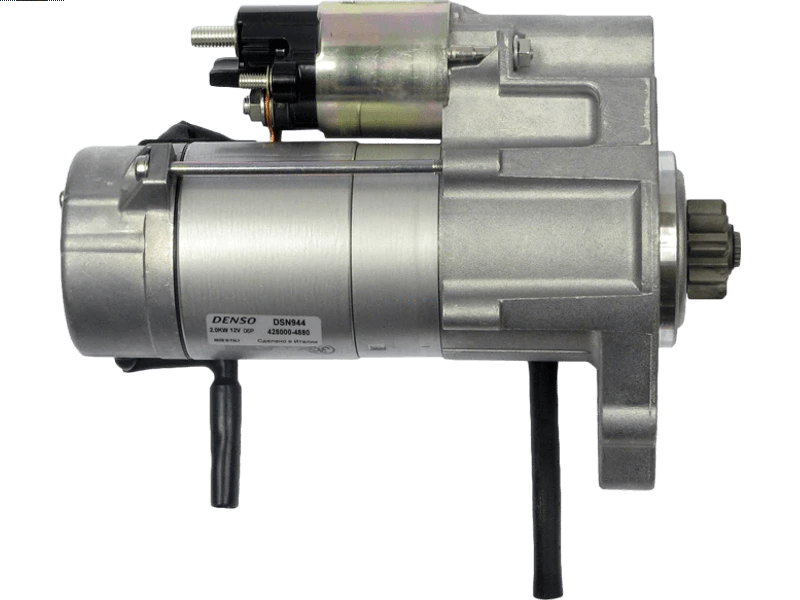

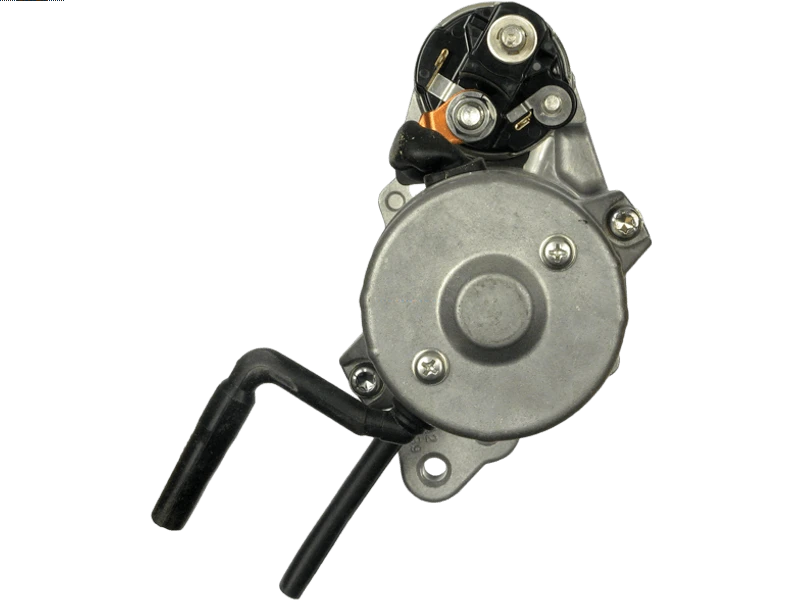

S6043(DENSO) - Brand new OEM DENSO Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	241 mm
Mount Hole Center - Center (O.1)	146 mm
Mount Hole Center - Center (O.2)	24 mm
Mount Hole Center - Center (O.3)	130 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	11.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	25 mm
Rotation	CW
Spigot Diameter (A)	70 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
LAND ROVER	Discovery 2.7 TD	[276DT]	01.2004-12.2009
LAND ROVER	Discovery 2.7 TD	[276DT]	01.2009-
LAND ROVER	Range Rover Sport 2.7 TDVM	[276DT]	01.2005-12.2009

Reference Information

LRS2413 101468D 450.520.092 DSN944 STN9468 LR087021 220653 336555 428000-4880 LRS02413 STM1193 115642 428000-4881 DRS0055 STR70280 LR043962 986027080 101468 DS1165 6040318.1 NAD500080 000986027080 88212459 NAD500080E STR6182 S12DE0457A2 DENDSN944 12185 5H22-11002-AC 3178 5H22-11002-AD CS1468 J5210802 STN1468 31131N EAA-122036 8080344 LR039482 11040829 NAD500330 S12DE0457 25-4085 428000-1940 CST40318GS 20432813OE 428000-1941

Video/Publications

0986027080 101468 101468D 11040829 115642 12185 20432813OE 220653 25-4085 31131N 3178 428000-1940 428000-1941 428000-4880 428000-4881 450.520.092 5H22-11002-AC 5H22-11002-AD 6040318.1 8080344 88212459 CS1468 CST40318GS DENDSN944 DRS0055 DS1165 EAA-122036 J5210802 LR039482 LR043962 LR087021 LRS02413 LRS2413 NAD500080 NAD500080E NAD500330 STM1193 STN1468 STN9468 STR70280
