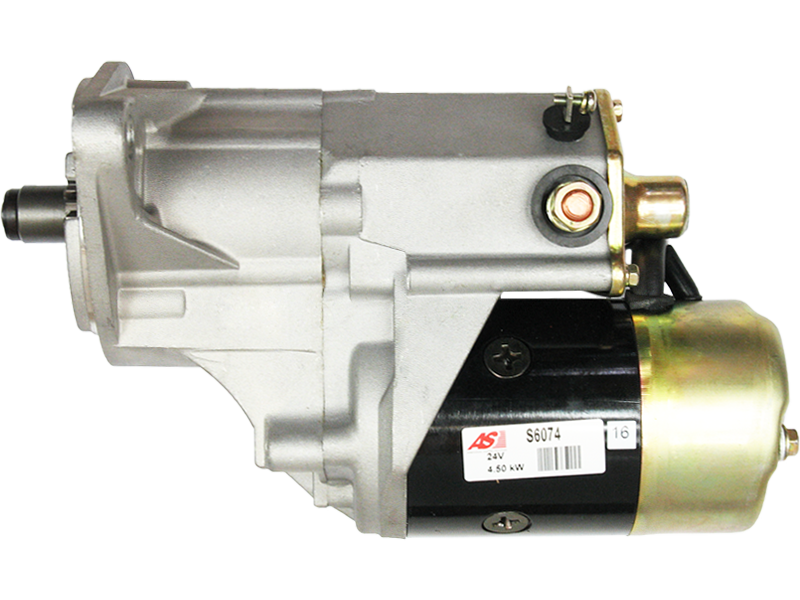

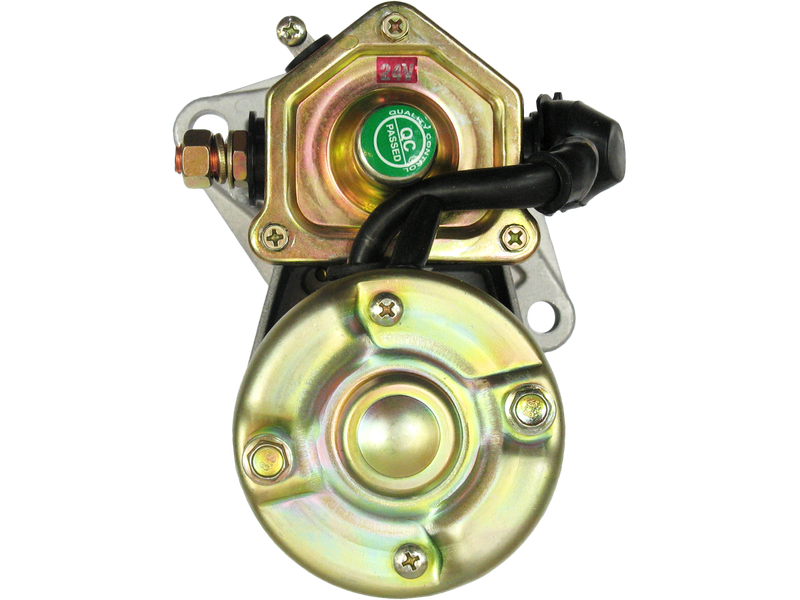

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 564.95 including GST
NZ$ 491.26 excluding GST
or four payments of $141.24
with
Learn More
each
S6086
S6074
2
Associated Numbers
028000-5530 028000-5620 028000-5690 028000-9330 028000-9331 11728 18181N 20432126BN 20656 28100-56010 28100-56030 28100-56060 28100-56120 45-0195 6040621 8212346 8EA730244-001 CST40621AS DRS3184 JS656 LRS01811
16-016 dxs445
Specifications
| Kilowatt | 4.50 kW |
| Length (L.1) | 300 mm |
| Mount Hole Center - Center (O.1) | 146.50 mm |
| Mount Hole Diameter (C.1) | M14x1.5 mm |
| Mount Hole Diameter (C.2) | 15.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 3.0 D | [B] |
Reference Information
| 028000-5530 | DENSO |
| 028000-5620 | DENSO |
| 028000-5690 | DENSO |
| 028000-9330 | DENSO |
| 028000-9331 | DENSO |
| 11728 | EAI |
| 18181N | WAI / TRANSPO |
| 20432126BN | REAL |
| 20656 | KUHNER |
| 28100-56010 | TOYOTA |
| 28100-56011 | TOYOTA |
| 28100-56030 | TOYOTA |
| 2810056039 | TOYOTA |
| 28100-56060 | TOYOTA |
| 2810056100 | TOYOTA |
| 28100-56120 | TOYOTA |
| 335506 | LOGISTIK |
| 45-0195 | ELSTOCK |
| 6040621 | SANDO |
| 8212346 | POWERMAX |
| 8EA730244-001 | HELLA |
| CGB-23184 | AINDE |
| CST40621AS | CASCO |
| DRS3184 | DELCO |
| JS656 | HC PARTS |
| LRS01811 | LUCAS |
| LRS1811 | LUCAS |
| MAV426210 | SIOM |
| STR6025 | ELECTROLOG |
| STRW423 | 3EFFE |
