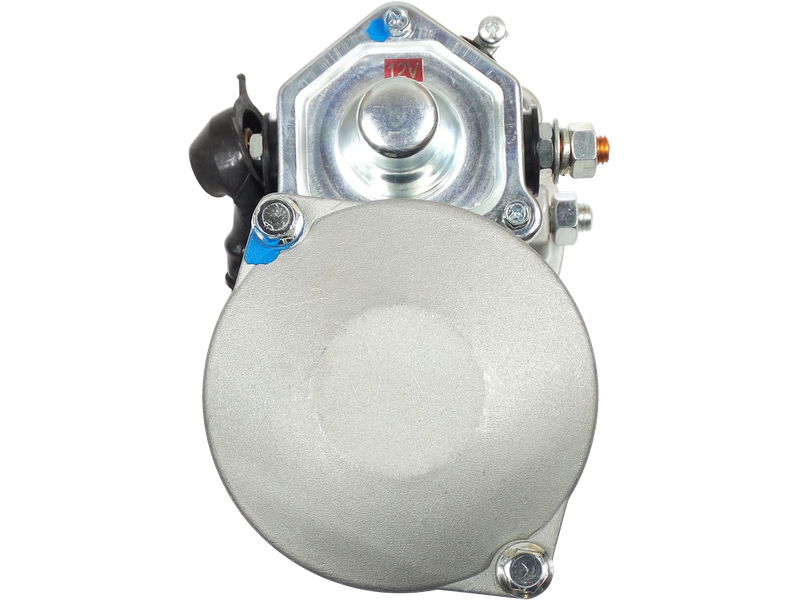

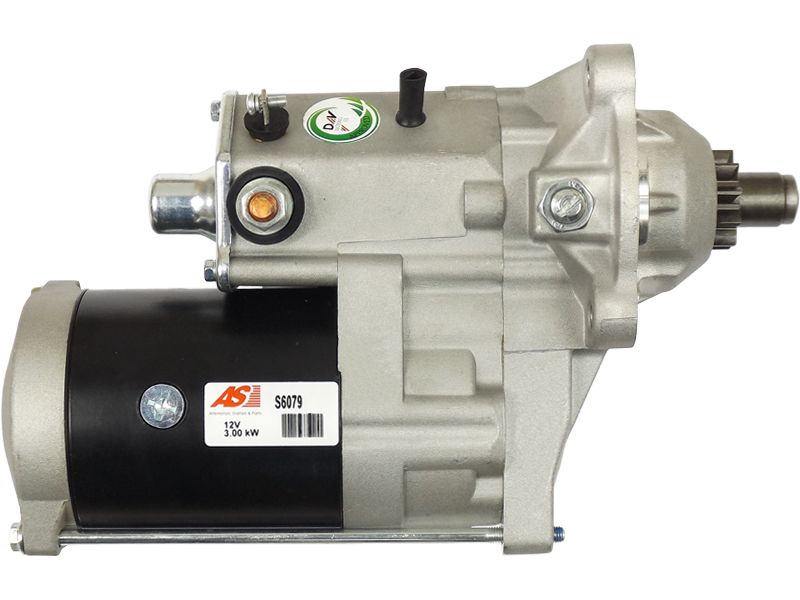

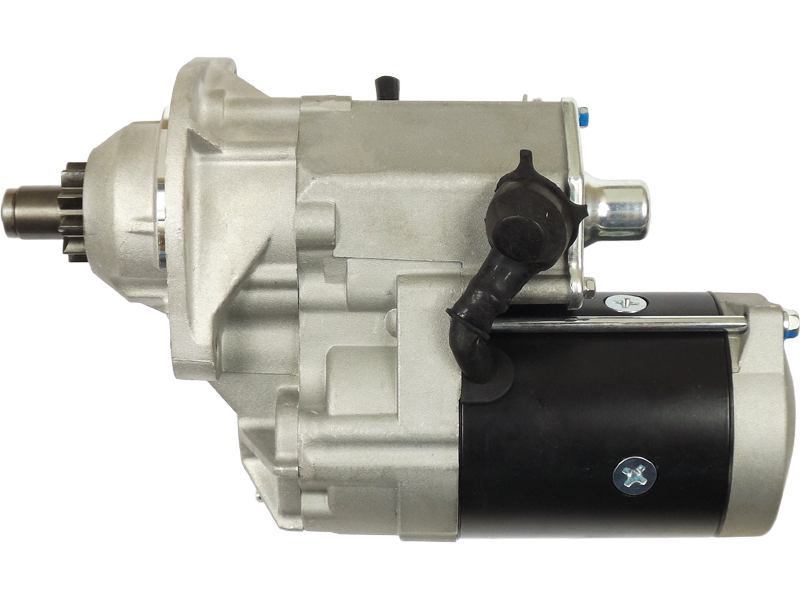

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 551.51 including GST
NZ$ 479.57 excluding GST
or four payments of $137.88
with
Learn More
each
S6079
No stock in NZ currently
No stock in NZ currently
Associated Numbers
0228000-5730 0228000-5731 113237 128000-5720 128000-5721 128000-5722 128000-5723 17615N 20432902BN 228000-5730 228000-5731 246-30103 254200 3E5382 6040209 830.569.103 91-29-5143 9W2946 CST40209 CST40209AS CST40209ES CST40209GS CST40209OS CST40209RS DRS0255 LES0152 S-8272 STR9020 UD11130S UNIT BOM 190-844Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 313 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
| Wet Clutch | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 3114 | 01.1991-01.1993 | |
| CATERPILLAR | 3116 | 01.1991-01.1993 |
Reference Information
| 0228000-5730 | DENSO |
| 0228000-5731 | DENSO |
| 1053133 | CATERPILLAR |
| 113237 | CARGO |
| 128000-5720 | DENSO |
| 128000-5721 | DENSO |
| 128000-5722 | DENSO |
| 128000-5723 | DENSO |
| 17199N | WAI / TRANSPO |
| 17615N | WAI / TRANSPO |
| 20432902BN | REAL |
| 228000-5730 | DENSO |
| 228000-5731 | DENSO |
| 246-30103 | DIXIE |
| 254200 | KUHNER |
| 336215 | LOGISTIK |
| 3E5382 | CATERPILLAR |
| 6040209 | SANDO |
| 6667825 | BOBCAT |
| 830.569.103 | PSH |
| 91-29-5143 | WILSON |
| 9W2946 | CATERPILLAR |
| 9X1270 | CATERPILLAR |
| CGB-25720 | AINDE |
| CST40209 | CASCO |
| CST40209AS | CASCO |
| CST40209ES | CASCO |
| CST40209GS | CASCO |
| CST40209OS | CASCO |
| CST40209RS | CASCO |
| DRS0255 | DELCO |
| F032113237 | CARGO |
| LES0152 | LUCAS |
| MAV422090 | SIOM |
| S135.491 | PSH |
| S144.697 | PSH |
| S6079 | AS-PL |
| S-8272 | DIXIE |
| STR6687 | ELECTROLOG |
| STR9020 | WOODAUTO |
| UD11130S | AS-PL |
| UNIT BOM 190-844 | WAI / TRANSPO |
