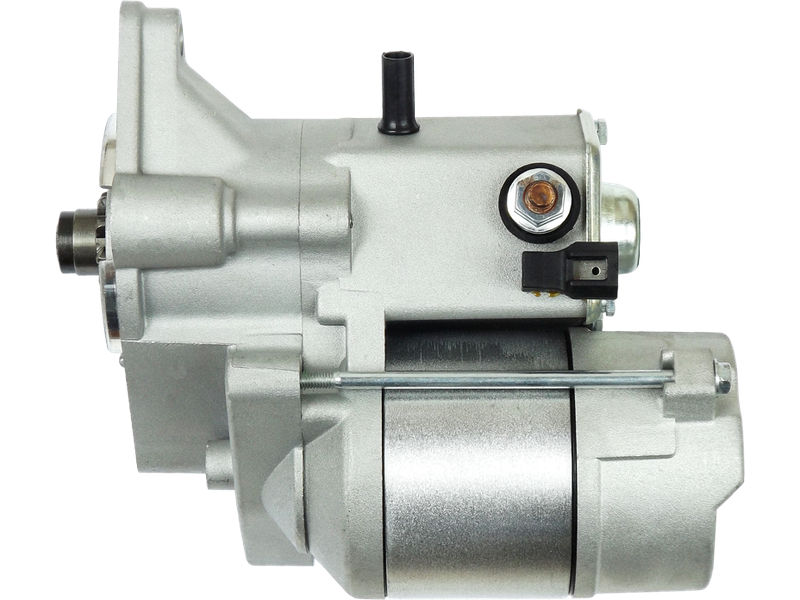

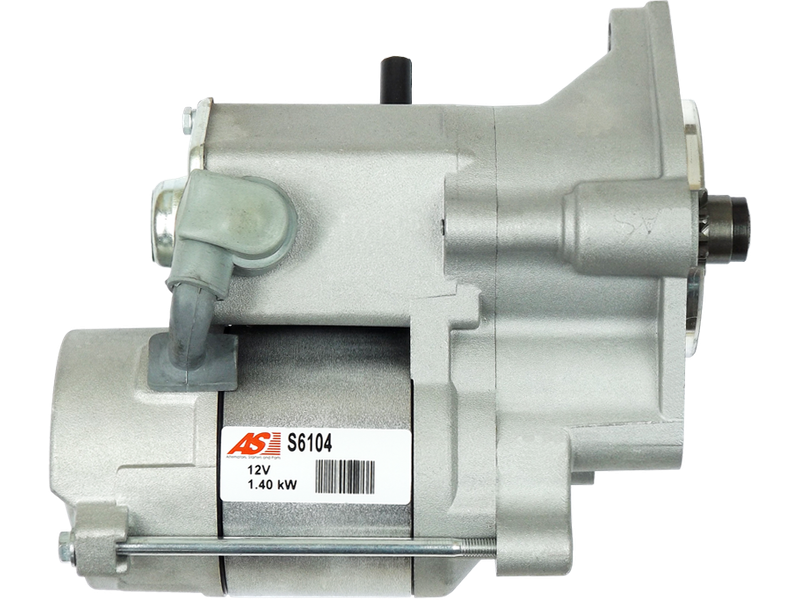

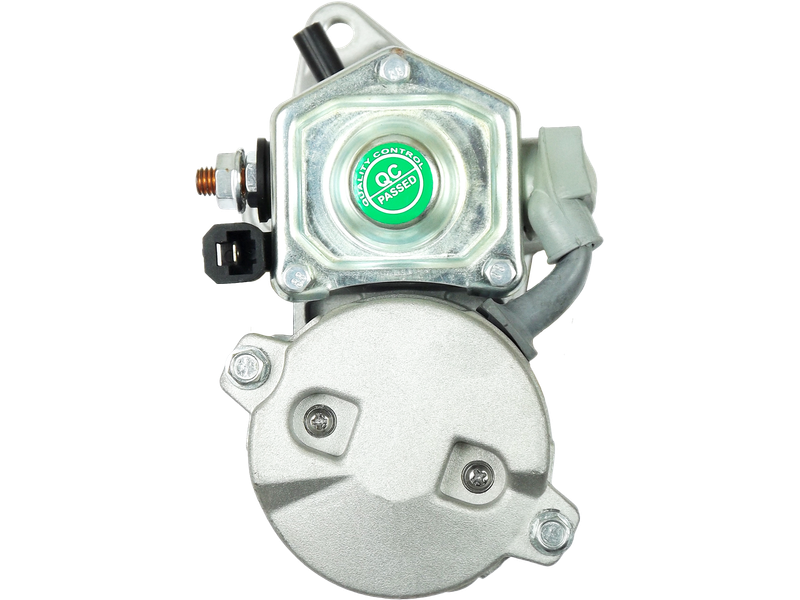

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 400.75 including GST
NZ$ 348.48 excluding GST
or four payments of $100.19
with
Learn More
each
S6104
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
028000-1016 028000-2060 028000-9680 028000-9720 0986015031 11498 11555 128000-1350 128000-2050 128000-2060 20317 20432414BN 22.5317 25-1016 28100-15110 28100-15130 28100-15150 28100-15170 28100-15180 28100-15180-84 30511R 455594 6040414 8EA726414-001 943241046010 943254079 9705 BOS0986015031 CST40414AS DRS5031 JS317 UD02097S UNIT BOM 190-164 16-226Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 188 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Celica 1.6 GT 16V | [4A-..L.] | 01.1985-12.1989 |
| TOYOTA | Corolla 1.6 | [4A..] | 01.1985-12.1987 |
| TOYOTA | Corolla 1.6 GT 16V | [4A-GE] | 01.1984-12.1987 |
| TOYOTA | Corolla 1.6 GT 16V | [4A-GEL] | 01.1984-12.1987 |
| TOYOTA | Corolla 1.6 GTi | [4AGE] | 01.1987-12.1992 |
| TOYOTA | MR2 1.6 | [4A-GEL] | 01.1984-12.1989 |
Reference Information
| 028000-1016 | DENSO |
| 028000-2060 | DENSO |
| 028000-9680 | DENSO |
| 028000-9720 | DENSO |
| 0986015031 | BOSCH |
| 11498 | EAI |
| 11555 | EAI |
| 128000-1350 | DENSO |
| 128000-2050 | DENSO |
| 128000-2060 | DENSO |
| 20317 | KUHNER |
| 20432414BN | REAL |
| 22.5317 | LAUBER |
| 25-1016 | ELSTOCK |
| 28100-15110 | TOYOTA |
| 28100-15130 | TOYOTA |
| 28100-15150 | TOYOTA |
| 2810015160 | TOYOTA |
| 28100-15160 | TOYOTA |
| 28100-15170 | TOYOTA |
| 28100-15180 | TOYOTA |
| 28100-15180-84 | TOYOTA |
| 30511R | WAI / TRANSPO |
| 455594 | VALEO |
| 6040414 | SANDO |
| 66925122 | PRESTOLITE |
| 8EA726414-001 | HELLA |
| 943241046010 | MAGNETI MARELLI |
| 943254079 | FIAT |
| 9705 | CEVAM |
| ANM17251X | ANDEL |
| BOS0986015031 | WOODAUTO |
| CST40414AS | CASCO |
| DRS5031 | DELCO |
| EL25129 | PRESTOLITE |
| JS317 | HC PARTS |
| LRS00511 | LUCAS |
| LRS511 | LUCAS |
| S6104 | AS-PL |
| STR6003 | ELECTROLOG |
| STRS931 | 3EFFE |
| UD02097S | AS-PL |
| UNIT BOM 190-164 | WAI / TRANSPO |
