Associated Numbers

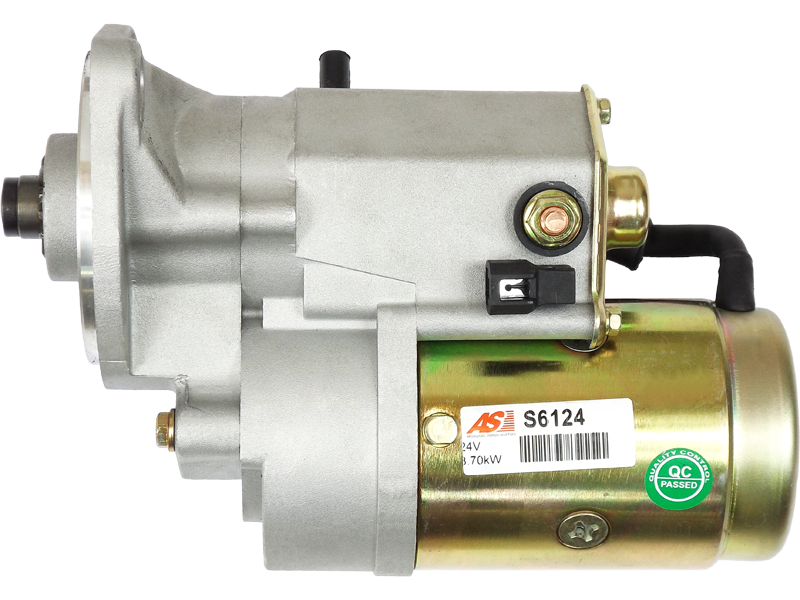

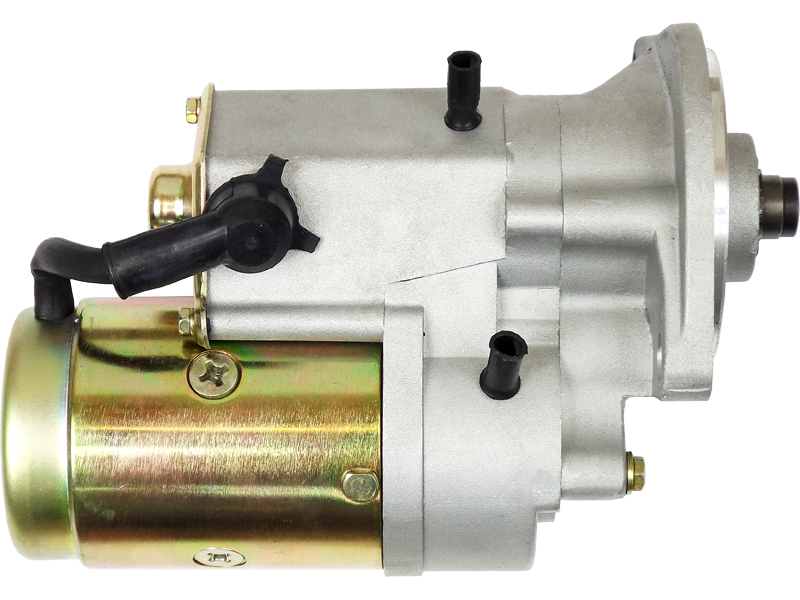

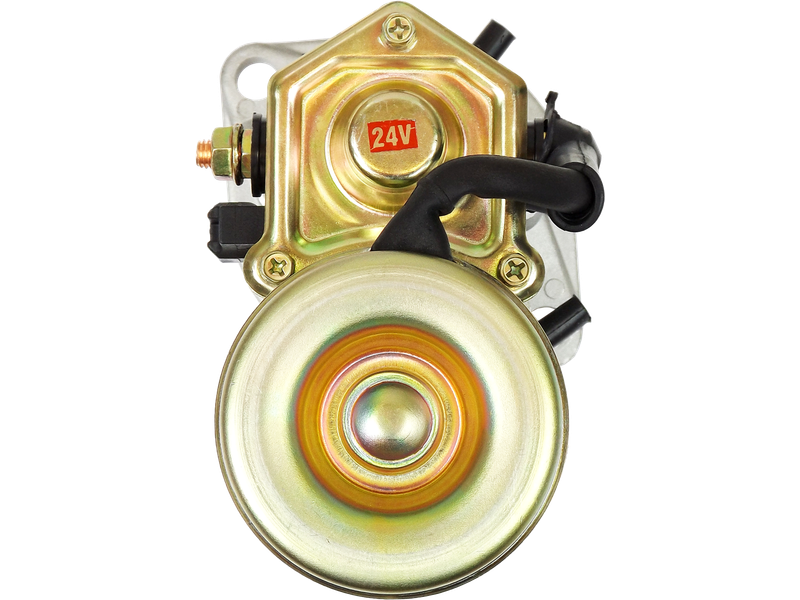

ND24V UD02105SSpecifications
Kilowatt | 3.7 kW |
Length (L.1) | 237 mm |
Mount Hole Center - Center (O.1) | 120 mm |
Mount Hole Diameter (C.1) | 13.5 mm |
Mount Hole Diameter (C.2) | 13.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 9 qty |
No./Teeth (Replaces) | 9 qty |
Pinion at Rest (B) | 19 mm |
Rotation | CW |
Spigot Diameter (A) | 95 mm |
Unit Type | DENSO |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
ISUZU | Engine | [C190] | |
ISUZU | Engine | [C240] |
Reference Information
ND24V UD02105SVideo/Publications
