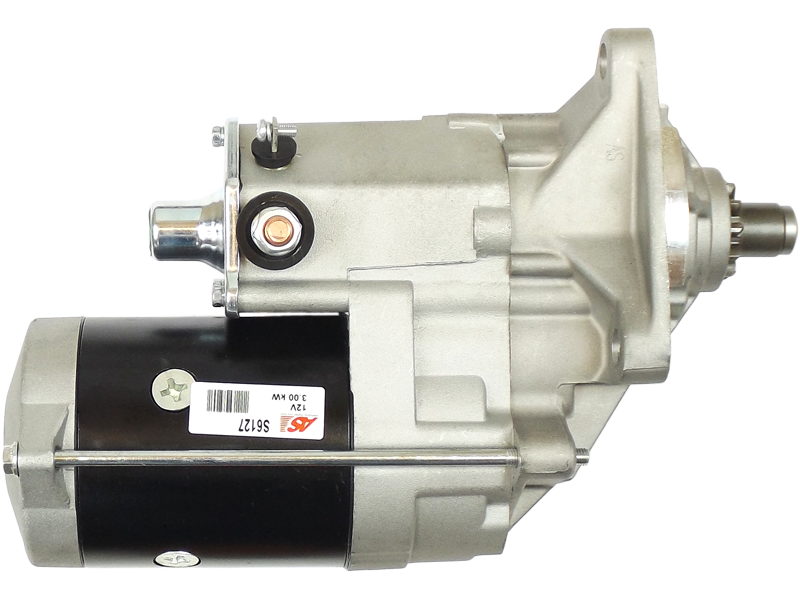

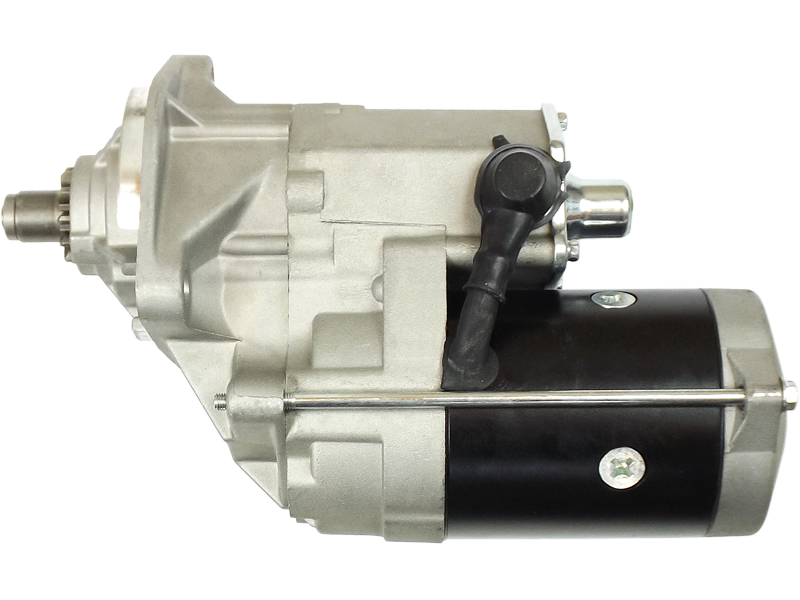

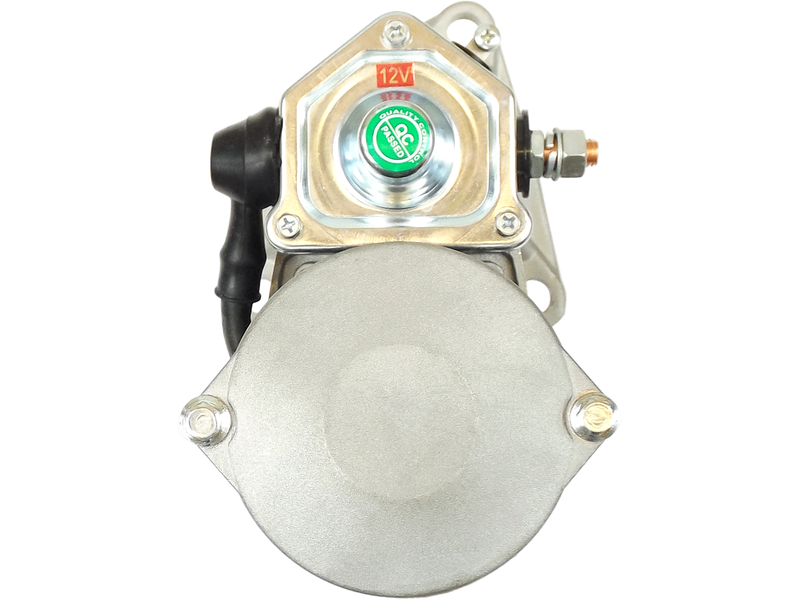

S6127 - Brand new AS-PL Starter motor

Specifications

Kilowatt	3 kW
Length (L.1)	315 mm
Mount Hole Center - Center (O.1)	111 mm
Mount Hole Center - Center (O.2)	111 mm
Mount Hole Center - Center (O.3)	135 mm
Mount Hole Diameter (C.1)	14 mm
Mount Hole Diameter (C.2)	14 mm
Mount Hole Diameter (C.3)	14 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	40 mm
Rotation	CW
Spigot Diameter (A)	105 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ISUZU	NPR 3.9	[4BD1]	10.1984-12.1996

Reference Information

94039465 2912559020 2912559021 254174 6040219 1811002342 CST40219OS 1811002340 16881N 1811002341 8971740430 STR70260 830.571.113 128000-0494 128000-0492 128000-0491 CST40219AS CST40219 20432912BN 16881 CST40219ES CST40219GS STR6775 94052175 8971197490 CST40219RS 113131 MAV422190 128000-0490 UD02130S

Video/Publications

113131 128000-0490 128000-0491 128000-0492 128000-0494 16881 16881N 1811002340 1811002341 1811002342 20432912BN 254174 2912559020 2912559021 6040219 830.571.113 8971197490 94039465 94052175 CST40219 CST40219AS CST40219ES CST40219GS CST40219OS CST40219RS MAV422190 STR70260 UD02130S
