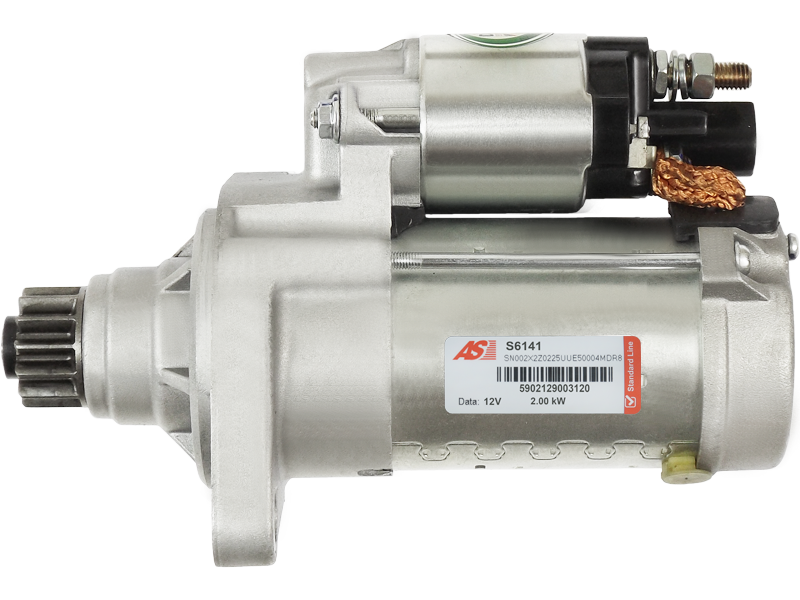

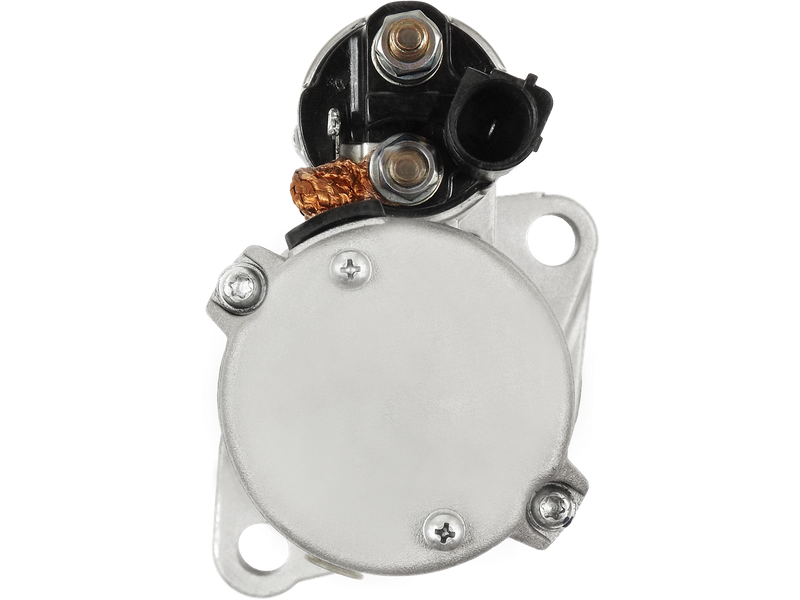

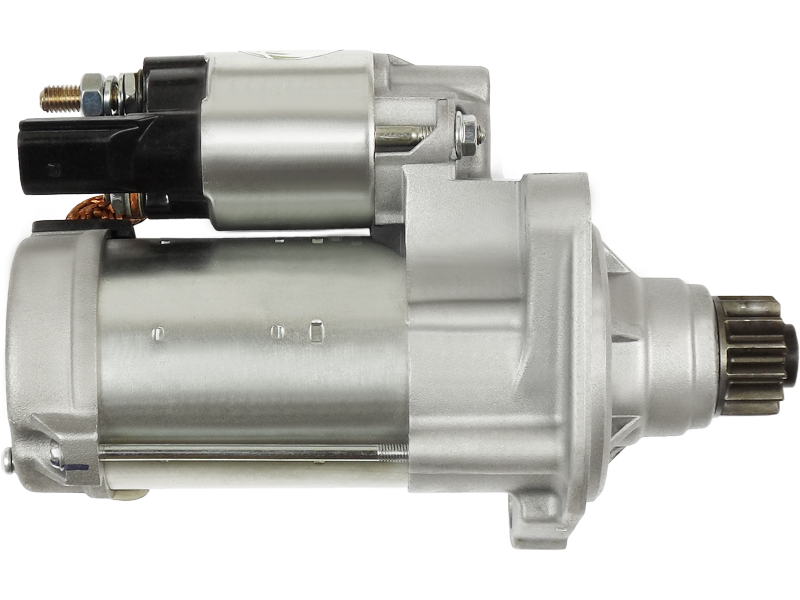

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 453.92 including GST
NZ$ 394.71 excluding GST
or four payments of $113.48
with
Learn More
each
S6141(DENSO)
S6141
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-7040Associated Numbers
0AH911023F 0AH911023GX 1145004 115645 20432903OE 25-4215 255457 255457D 300.907.132 3393 428000-7040 428000-7041 6040309 8080402 8214404 AEY2543 AH911023F AH911023FX CST40309GS DRS0801 DSN964 LRS02543 UD30034SSpecifications
| Kilowatt | 2 kW |
| Length (L.1) | 224 mm |
| Mount Hole Center - Center (O.1) | 112 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| No./Teeth (Replaces) | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 57 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 79 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 1.2 TFSi | [CBZB] | 01.2010- |
| SEAT | Altea 1.2 TSi | [CBZB] | 01.2010- |
| SEAT | Altea 1.2 TSi | [CBZB] | 01.2010- |
| VW | Beetle 1.2 TSi | [CBZB[ | 01.2011- |
| VW | Caddy 1.2 TSi | [CBZB] | 01.2010- |
| VW | Golf VI 1.2 TSi | [CBZA] | 01.2009- |
| VW | Golf VI 1.2 TSi | [CBZB] | 01.2009- |
| VW | Jetta 1.2 TSi | [CBZB] | 01.2010- |
| VW | Touran 1.2 TSi | [CBZB] | 01.2010- |
Reference Information
| 0001145004 | BOSCH |
| 0001179530 | BOSCH |
| 0001179531 | BOSCH |
| 0001179531-R | BOSCH |
| 0986029240 | BOSCH |
| 0AH911023F | VW |
| 0AH911023FX | VW |
| 0AH911023G | VW |
| 0AH911023GX | VW |
| 0AH911023J | VW |
| 0AH911023JX | VW |
| 10040309AV | ITAB AUTOMOTIVE |
| 10040309OV | ITAB AUTOMOTIVE |
| 12414 | EAI |
| 1986S01048 | BOSCH |
| 1986S01124 | BOSCH |
| 20432903BN | REAL |
| 20432903OE | REAL |
| 25-4215 | ELSTOCK |
| 255457 | KUHNER |
| 255457D | KUHNER |
| 300.907.132.050 | PSH |
| 300.907.132.261 | PSH |
| 300.907.132.281 | PSH |
| 300.907.132.340 | PSH |
| 300.907.132.341 | PSH |
| 300.907.132.440 | PSH |
| 30430N | WAI / TRANSPO |
| 311273132 | DRI |
| 311419132 | DRI |
| 3117000 | HENKEL PARTS |
| 3117002 | HENKEL PARTS |
| 336130 | LOGISTIK |
| 3393 | CEVAM |
| 414ST21 | STARTCAR |
| 42000007 | HERTH+BUSS |
| 428000-7040 | DENSO |
| 428000-7041 | DENSO |
| 428000-7042 | DENSO |
| 428000-7043 | DENSO |
| 428000-7044 | DENSO |
| 428000-8860 | DENSO |
| 428000-8861 | DENSO |
| 428000-8862 | DENSO |
| 428000-8863 | DENSO |
| 428080-7040 | DENSO |
| 428080-8863 | DENSO |
| 438569 | VALEO |
| 5010986G | MEAT & DORIA |
| 5040625 | MEAT & DORIA |
| 6040309.0 | SANDO |
| 6040309.1 | SANDO |
| 88214449 | POWERMAX |
| CST40309AS | CASCO |
| CST40309GS | CASCO |
| DRS0933 | DELCO |
| DRS1099 | DELCO |
| DSN1467 | DENSO |
| DSN964 | DENSO |
| LRS02543 | LUCAS |
| LRS2543 | LUCAS |
| MAV423090A | SIOM |
| S102264 | BTS TURBO |
| S103041 | BTS TURBO |
| S12BH0633 | SIDAT |
| S12DE0633 | SIDAT |
| S12DE0633A2 | SIDAT |
| S132.289 | PSH |
| S145.269 | PSH |
| SDN309 | AUTOTEAM |
| SDN309A | AUTOTEAM |
| ST01720 | TMI |
| STN0467 | KRAUF |
| STN4923 | KRAUF |
| STR70425 | WOODAUTO |
| UD30034S | AS-PL |
| VW9114 | SNRA |
| WG1920123 | WILMINK GROUP |
| WG2471175 | WILMINK GROUP |
| WOOSTR70425 | WOODAUTO |
Video/Publications
S6141View your shopping basket or Browse other items in Starter Motors.
