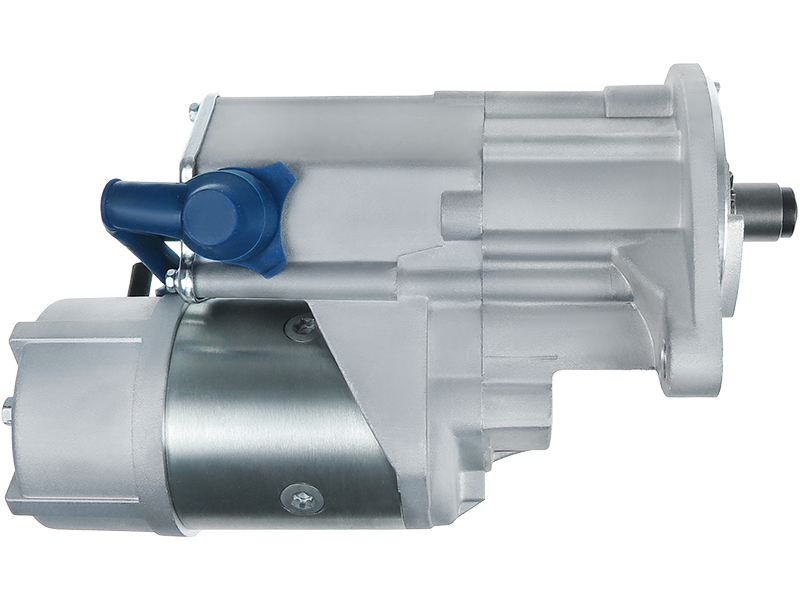

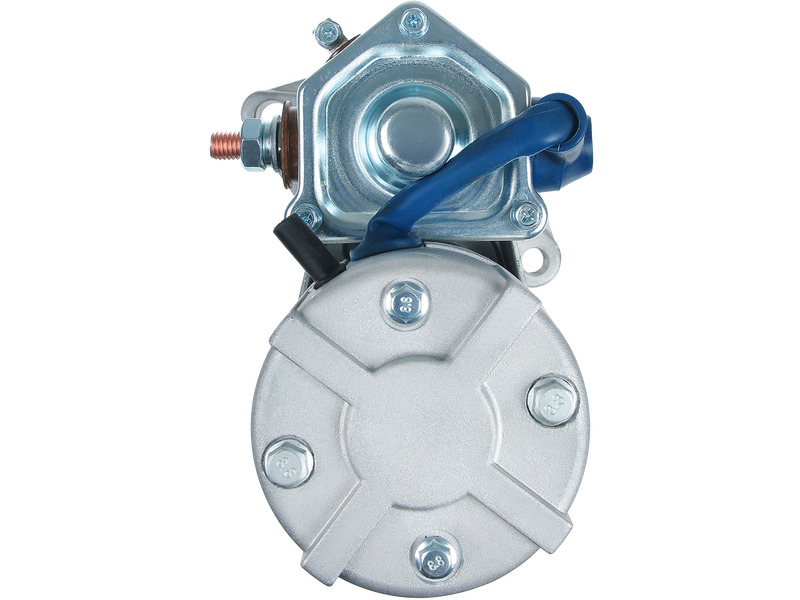

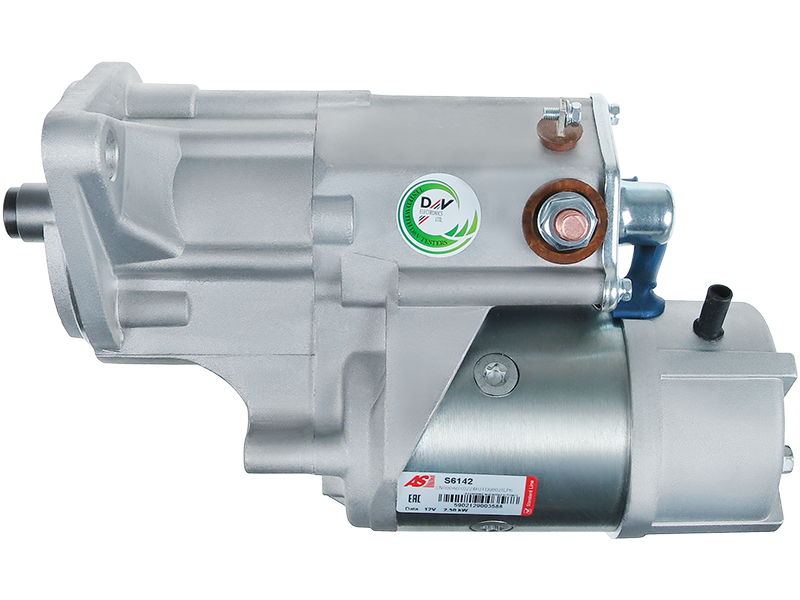

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 390.43 including GST
NZ$ 339.50 excluding GST
or four payments of $97.61
with
Learn More
each
S6142
2
Associated Numbers
028000-5520 114417 190.572.112 20432503BN 22.3252 246-25128 28100-56040 28100-56050 6040305 CST40305AS STR70266 UD11106S 70-8533 dxs446 snj007 Denso Starter Motor 128000-3522 12v 2.5kw STARTER MOTOR 1 UNIT Ingram 843841 Lucas LRS1071 PJL Diesel Electrics IM6051 CW Toyota Unipoint Electric STR-6051 AED 099-13-051 Ashdown 01-75520 2.2kw 901-75520X DXS446 MXS313 RXS446 Auto Australia ASND6051 Baxters S-8905 [28100-56040] 028000-5540 [28100-56080] 0280005520 show 11040229 EuroTec Cargo 190572112 PSH 2280005520 2810056040 2810056050 STR6024sa Electrolog STR6051
Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 296 mm |
| Mount Hole Center - Center (O.1) | 146 mm |
| Mount Hole Diameter (C.1) | M14x1.5 mm |
| Mount Hole Diameter (C.2) | 15.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 104.50 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 200 3.7 Diesel | [14B] | 08.1988-05.1995 |
| TOYOTA | Dyna 2.4 Diesel | [2L] | 08.1977-04.1979 |
Reference Information
| 028000-5520 | DENSO |
| 114417 | CARGO |
| 190.572.112 | PSH |
| 190.572.112.050 | PSH |
| 20432503BN | REAL |
| 22.3252 | LAUBER |
| 246-25128 | DIXIE |
| 28100-56040 | TOYOTA |
| 28100-56050 | TOYOTA |
| 6040305 | SANDO |
| CST40305AS | CASCO |
| F032114417 | CARGO |
| S131.523 | PSH |
| S6142 | AS-PL |
| STR6024 | ELECTROLOG |
| STR70266 | WOODAUTO |
| STX201277 | STARDAX |
| UD104242S | AS-PL |
| UD11106S | AS-PL |
