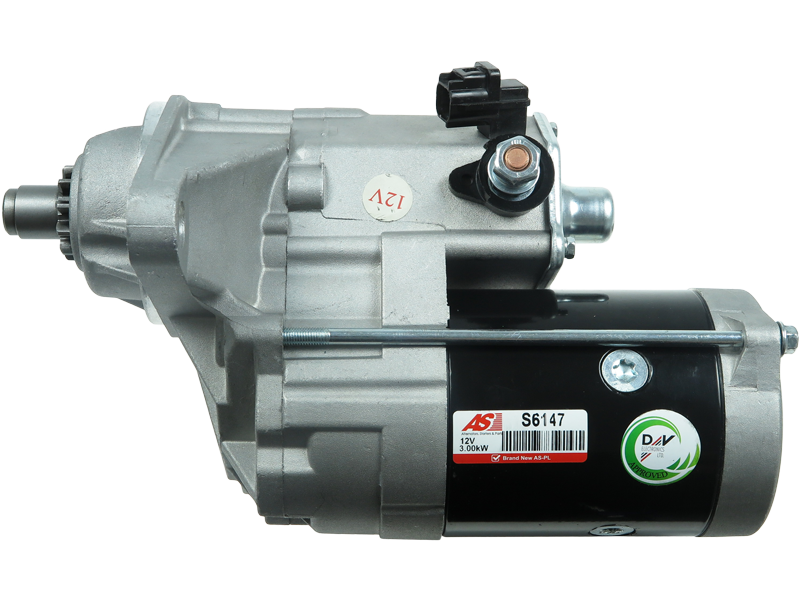

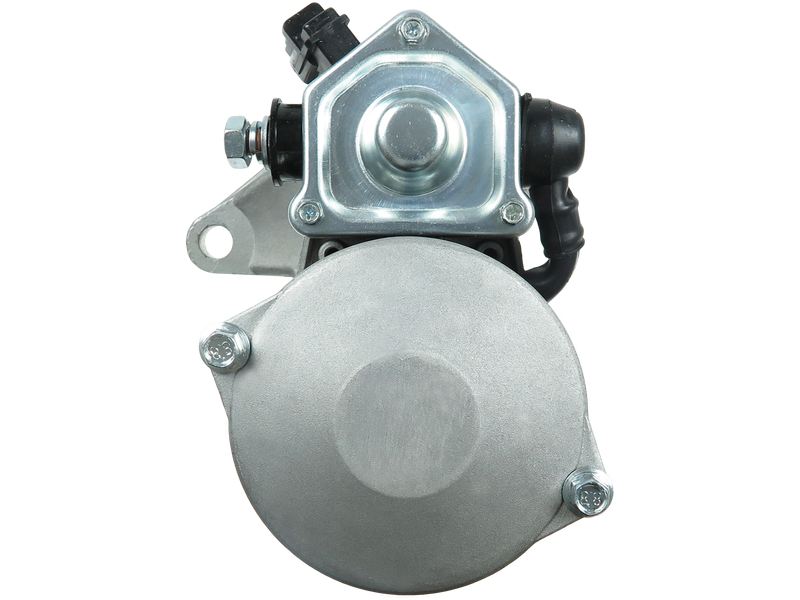

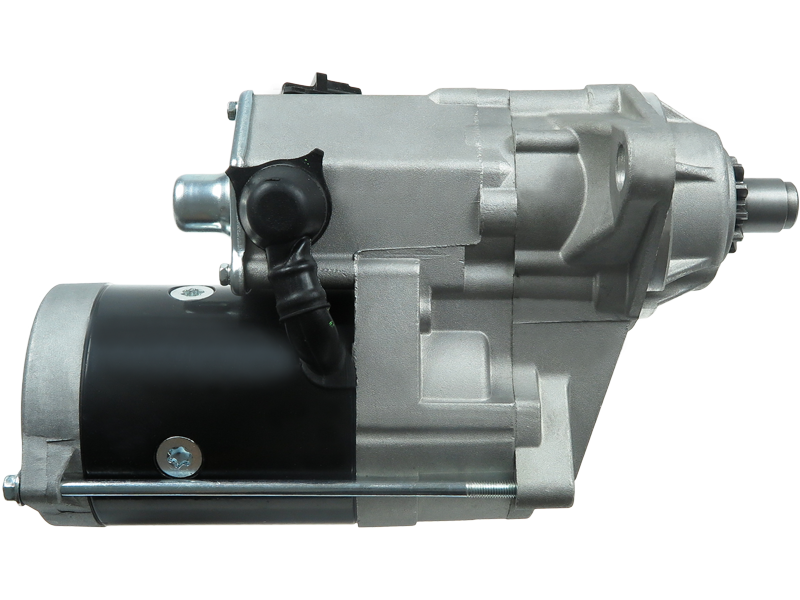

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 504.18 including GST
NZ$ 438.42 excluding GST
or four payments of $126.05
with
Learn More
each
S6147
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
18500N 228000-8180 228000-8181 228000-8182 246-30138 254663 8972077860 8972077861 8972077862 91-29-5515 S-80086 UD11131SSpecifications
| Kilowatt | 3 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 171 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 94 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Engine 4.8 | [4HE1] | 01.1999-12.2001 |
| CHEVROLET | Tiltmaster W4 4.8 | [4HE1] | 01.1999-12.2001 |
| CHEVROLET | Tiltmaster W5 4.8 | [4HE1] | 01.1999-12.2001 |
| CHEVROLET | W3500 3.9 | [4BD2] | 01.1999-12.2001 |
| CHEVROLET | W3500 4.8 | [4HE1] | 01.1999-12.2001 |
| CHEVROLET | W4500 3.9 | [4BD2] | 01.1999-12.2001 |
| CHEVROLET | W4500 4.8 | [4HE1] | 01.1999-12.2001 |
| CHEVROLET | W5500 3.9 | [4BD2] | 01.1999-12.2001 |
| CHEVROLET | W5500 4.8 | [4HE1] | 01.1999-12.2001 |
| ISUZU | NPR 4.8 | [4HE1] | 01.1999-12.2006 |
| ISUZU | NPR 5.2 | [4HE1] | 01.2007-12.2010 |
| ISUZU | NQR 4.8 | [4HE1] | 01.1999-12.2006 |
| ISUZU | NQR 5.2 | [4HK1] | 01.2008-12.2010 |
| ISUZU | NR 5.2 | [4HK1] | 01.2005-12.2010 |
Reference Information
| 18500N | WAI / TRANSPO |
| 20432543BN | REAL |
| 228000-8180 | DENSO |
| 228000-8181 | DENSO |
| 228000-8182 | DENSO |
| 246-30138 | DIXIE |
| 254663 | KUHNER |
| 6040345.0 | SANDO |
| 8971477780 | ISUZU |
| 8971477781 | ISUZU |
| 8971477782 | ISUZU |
| 8971477783 | ISUZU |
| 8972077860 | ISUZU |
| 8972077861 | ISUZU |
| 8972077862 | ISUZU |
| 91-29-5515 | WILSON |
| 97207786 | GM |
| CST40345AS | CASCO |
| MAV423450A | SIOM |
| S-80086 | DIXIE |
| UD11131S | AS-PL |
Video/Publications
