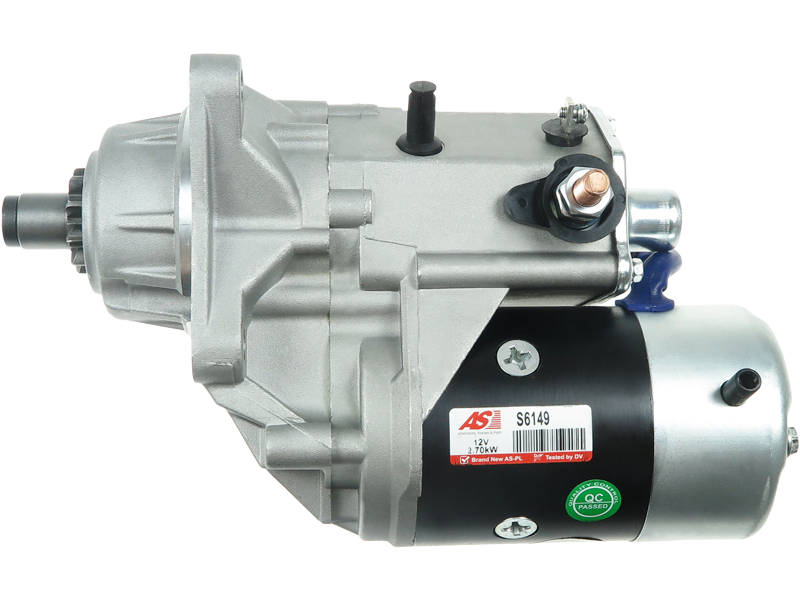

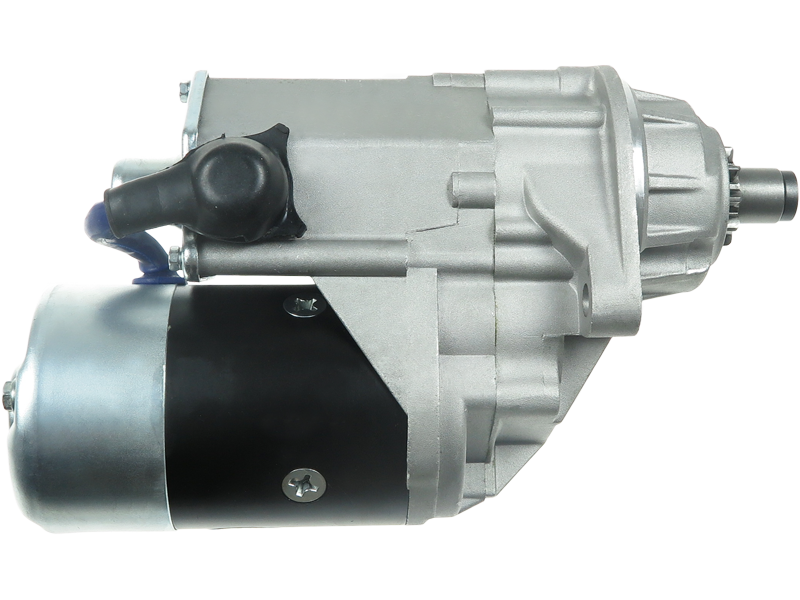

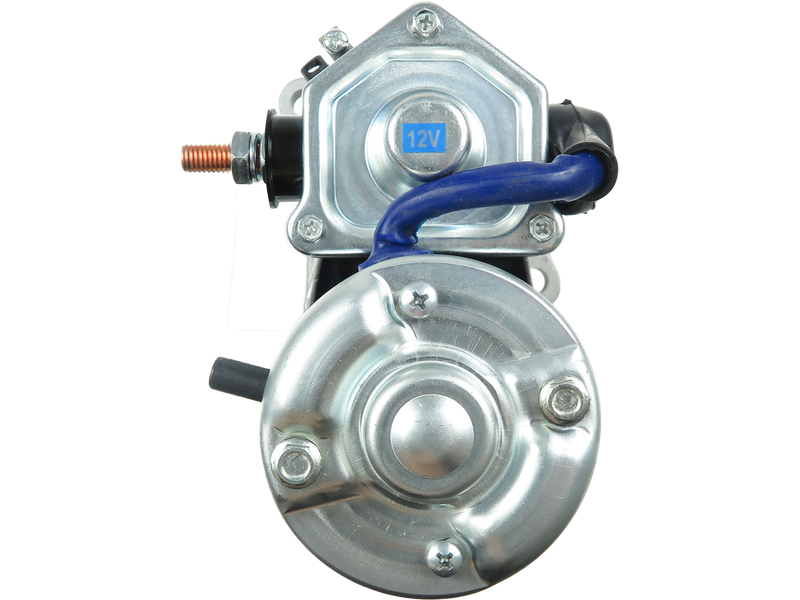

S6149 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.7 kW
Length (L.1)	297 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	48 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYSTER	H-100XL	[1000-4]	01.1996-
HYSTER	H110XL	[1000-4]	01.1996-
HYSTER	H-110XL	[1000-4]	01.1996-
HYSTER	H-130XL	[1000-4]	01.1996-
HYSTER	H-135XL	[PERKINS]	01.1980-
HYSTER	H155XL	[PERKINS]	01.1980-
HYSTER	H-70XL	[1000-4]	01.1996-
HYSTER	H-80XL	[1000-4]	01.1996-
HYSTER	S-120XL	[1000-4]	01.1996-
HYSTER	S-70XL	[1000-4]	01.1996-
HYSTER	S-80XL	[1000-4]	01.1996-
YALE	GDP135	[1000.4]	01.1998-
YALE	GDP155	[1000.4]	01.1998-

Reference Information

S-8268 7C2264 RE40092 8T8619 STR6766 AR70611 20906 RE59595 1453060 91-29-5430 8504305 UD30044S 640.507.103 CST40134AS 20432431BN 228000-6400 1430536 18560N 228000-6401 6040134 246-25109 RE54090 8218 20906M STR30010 6665654

Video/Publications

1453060 18560N 20432431BN 20906 20906M 228000-6400 228000-6401 246-25109 6040134 640.507.103 8218 91-29-5430 CST40134AS S-8268 STR30010 UD30044S
