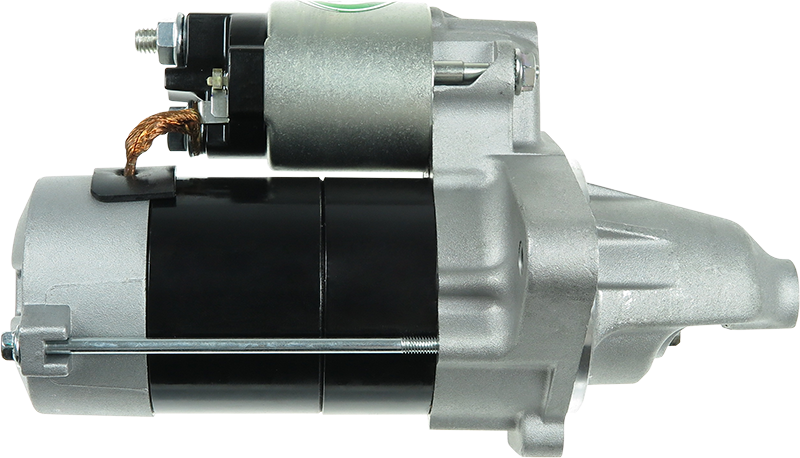

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 328.72 including GST
NZ$ 285.84 excluding GST
or four payments of $82.18
with
Learn More
each
S6176
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-2560Associated Numbers
25-4177 255194 28100-B1020 28100-B2120 428000-2560 428000-5080 AEY2505 DRS0655 LRS02505 S6176 UD12039SSpecifications
| Kilowatt | 1 kW |
| Length (L.1) | 222 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 36 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAIHATSU | Cuore 1.0 | [1KR-FE] | 01.2007- |
| DAIHATSU | Sirion 1.0 | [1KR-FE] | 01.2005- |
| SUBARU | Justy 1.0 | [1KR-FE] | 01.2007- |
| TOYOTA | Passo 1.0 | [1KR-FE] | 01.2005-12.2010 |
| TOYOTA | Passo 1.0 4x4 | [1KR-FE] | 01.2005-12.2010 |
Reference Information
| 20432210 | REAL |
| 25-4177 | ELSTOCK |
| 255194 | KUHNER |
| 28100-B1020 | TOYOTA |
| 28100B2110 | DAIHATSU |
| 28100-B2110 | DAIHATSU |
| 28100-B2110 | TOYOTA |
| 28100-B2120 | TOYOTA |
| 428000-2560 | DENSO |
| 428000-5080 | DENSO |
| 6040012 | SANDO |
| AEY2505 | AUTOELECTRO |
| CST40012 | CASCO |
| DRS0655 | DELCO |
| LRS02505 | LUCAS |
| LRS2505 | LUCAS |
| S6176 | AS-PL |
| STR6314 | ELECTROLOG |
| STX210206 | STARDAX |
| STX210206R | STARDAX |
| UD12039S | AS-PL |
Video/Publications
