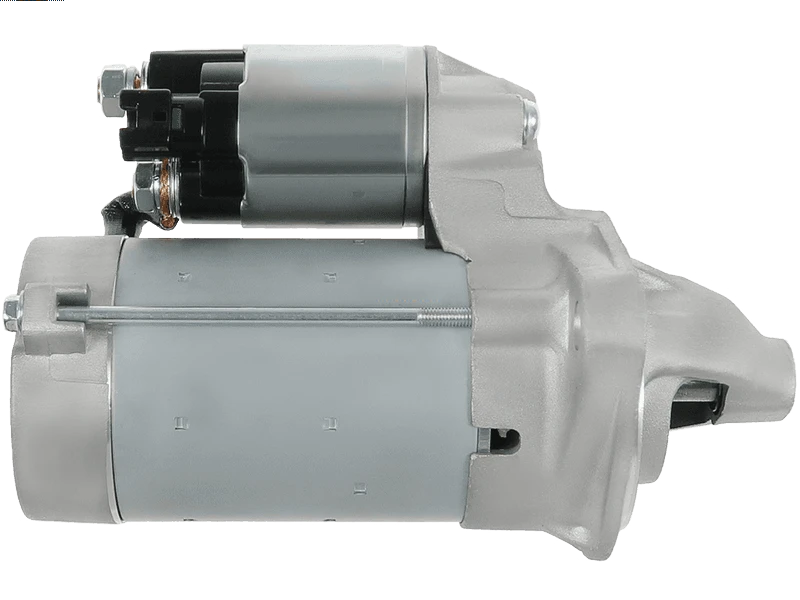

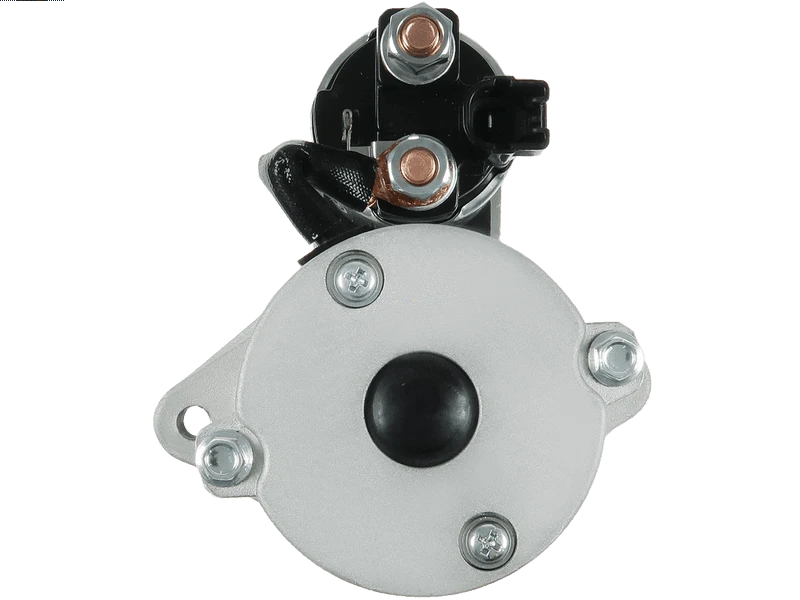

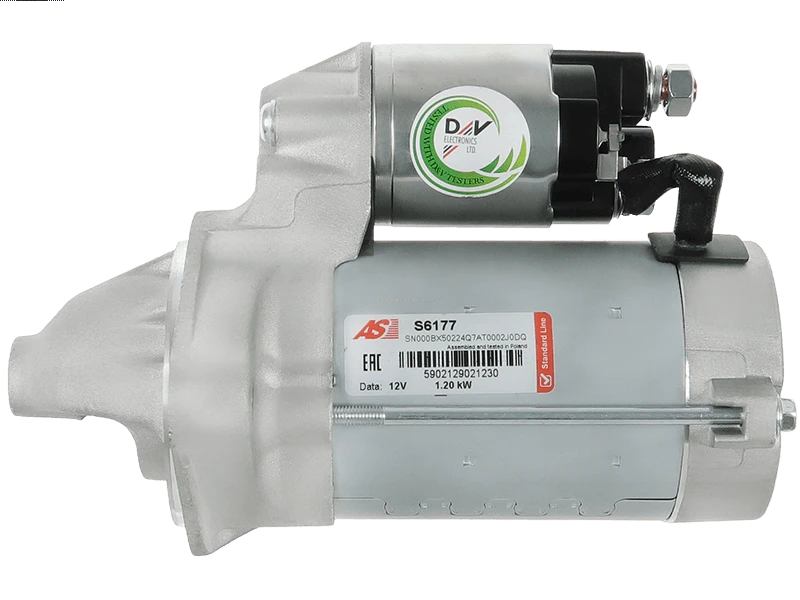

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 306.50 including GST
NZ$ 266.52 excluding GST
or four payments of $76.63
with
Learn More
each
S6177
5+
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-0340Associated Numbers
17841N 17841R 20432362BN 246-11101 28100-0D080 28100-0D08084 28100-22090 428000-0340 428000-0341 428000-1311 6040263 88969483 91-29-5634 91-29-5634N CST40263AS S-80055 UD12384S
DXS4000
16-422 16422
17841N 17841R 246-11101 28100-0D080 28100-0D08084 28100-22090 428000-0340 428000-0341 428000-1311 88969483 91-29-5634 91-29-5634N S-80055
dxs4000
16422 16-422
Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 191 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PONTIAC | Vibe 1.8 | 01.2003-12.2008 | |
| TOYOTA | Corolla 1.8 | [2ZZ-GE] | 01.2003-12.2008 |
| TOYOTA | Matrix 1.8 | 01.2003-12.2008 |
Reference Information
| 17841N | WAI / TRANSPO |
| 17841R | WAI / TRANSPO |
| 20432362BN | REAL |
| 246-11101 | DIXIE |
| 28100-0D080 | TOYOTA |
| 28100-0D08084 | TOYOTA |
| 28100-22090 | TOYOTA |
| 428000-0340 | DENSO |
| 428000-0341 | DENSO |
| 428000-1311 | DENSO |
| 6040263 | SANDO |
| 88969483 | DELCO |
| 91-29-5634 | WILSON |
| 91-29-5634N | WILSON |
| CST40263AS | CASCO |
| S6177 | AS-PL |
| S-80055 | DIXIE |
| STR6466 | ELECTROLOG |
| STX201121 | STARDAX |
| STX201278 | STARDAX |
| UD102392S | AS-PL |
| UD12384S | AS-PL |
Video/Publications
