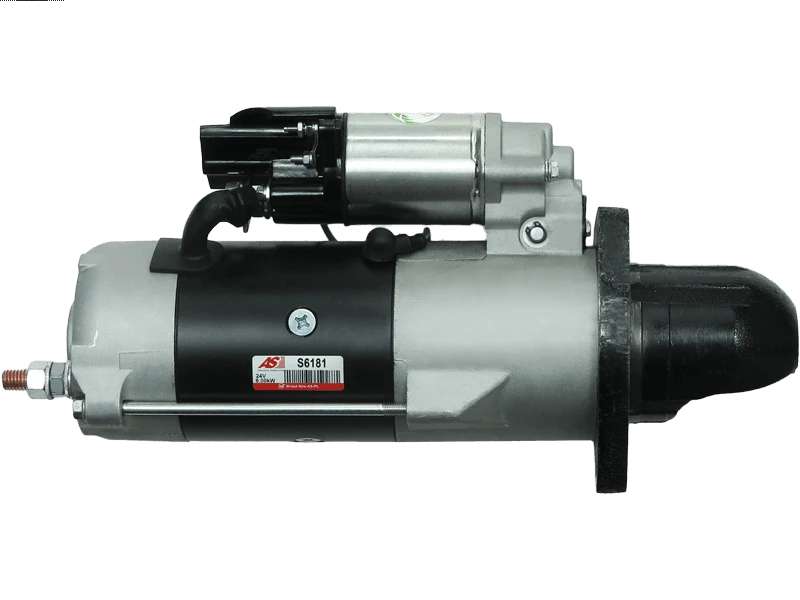

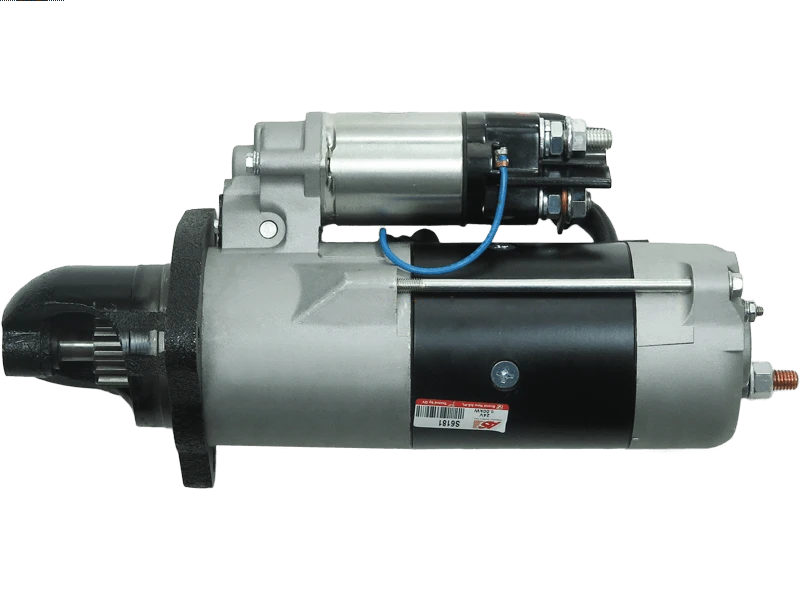

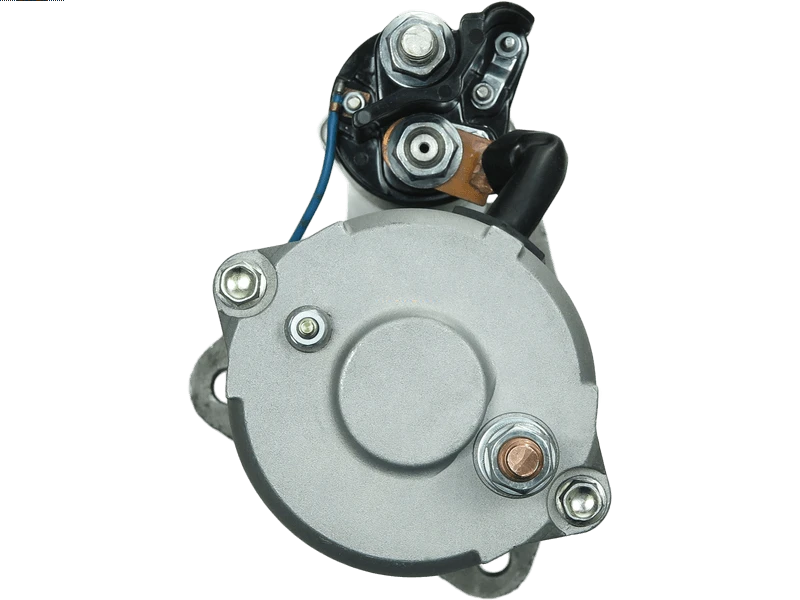

S6181 - Brand new AS-PL Starter motor

Specifications

Insulated Earth	Yes
Kilowatt	8 kW
Length (L.1)	446 mm
Mount Hole Center - Center (O.1)	126 mm
Mount Hole Center - Center (O.2)	126 mm
Mount Hole Center - Center (O.3)	126 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
Mount Hole Diameter (C.3)	13.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	13 qty
Pinion at Rest (B)	46.5 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	DENSO
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
JOHN DEERE	1050K	[6135HT]
JOHN DEERE	370E 13.5	[6135824CI]
JOHN DEERE	410E 13.5	[6135824CI]
JOHN DEERE	450CLC	[6125HT]
JOHN DEERE	460E 13.5	[6135824CI]
JOHN DEERE	7350	[6135HZ]
JOHN DEERE	7380	[6135HZ006]
JOHN DEERE	744E	[6101]
JOHN DEERE	744H	[6125A]
JOHN DEERE	744J	[6125H]
JOHN DEERE	7450	[6135HZ]
JOHN DEERE	7750	[6135HZ]
JOHN DEERE	7760	[6135HH]
JOHN DEERE	824J	[6125H]
JOHN DEERE	824K	[6135HD]
JOHN DEERE	844J	[6125HD]
JOHN DEERE	844K	[6135HD]
JOHN DEERE	944K	[6135HD]
JOHN DEERE	Engine 12.5	[6125AFM01]	01.2000-12.2007
JOHN DEERE	Engine 12.5	[6125AFM75]	01.2004-12.2007
JOHN DEERE	Engine 12.5	[6125SFM75]	01.2004-12.2007
JOHN DEERE	S680 STS	[6135HH004]

Reference Information

19859N RE522852 S-80230 STN8310 RE506826 504071148 DENDSN2073 UD12663S 254879P 91-29-5651 88215028 STR6161 2886976 190-50116NOE 267-4324 190-50116 254879D RE515895 6040641.1 267-4624 115821 2873K414 S6181 332163 20432146OE 428000-0130 CST40641GS 428000-0131 RE522582 254879 641.508.133.260

Video/Publications

115821 19859N 20432146BN 254879 254879P 2674624 2873K414 428000-0130 428000-0131 6040641 CST40641AS RE506826 RE515895 RE522852 S-80230 S6181 UD12663S
