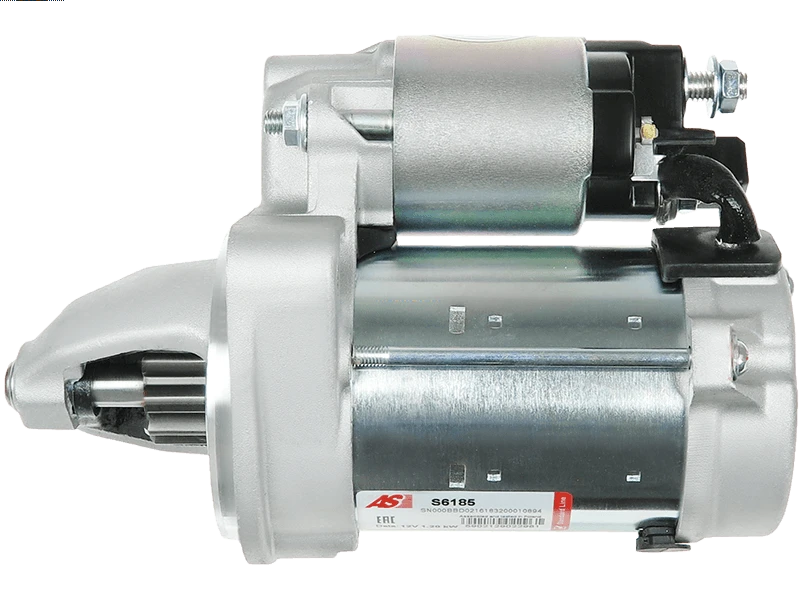

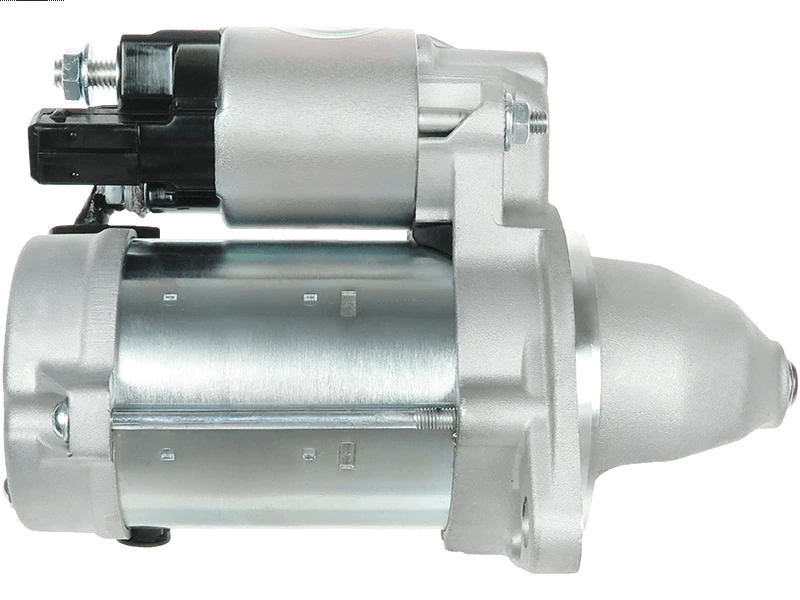

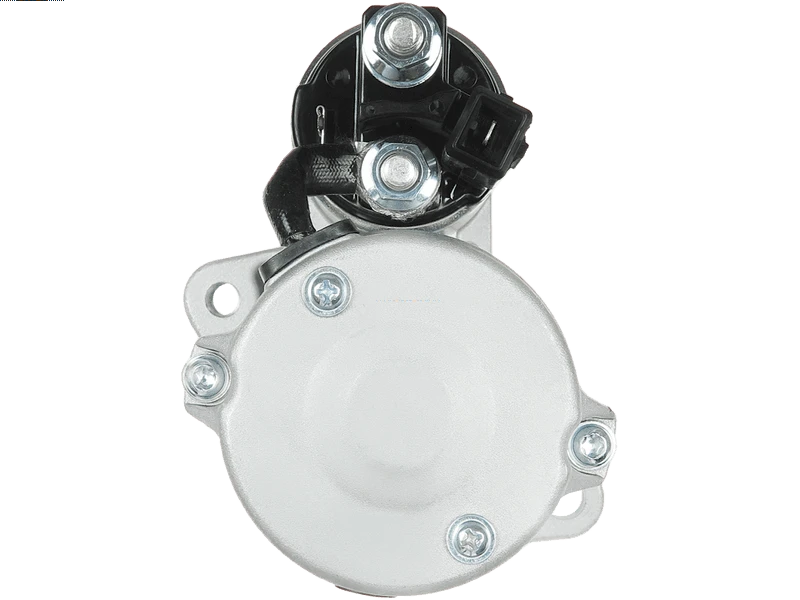

S6185 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.2 kW
Length (L.1)	187.5 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	9 qty
Pinion at Rest (B)	26 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BMW	116 1.6 i	(E81)[N43B16A]	03.2007-09.2012
BMW	116 1.6 i	(E81)[N43B16A]	08.2007-09.2012
BMW	116 1.6 i	(E81)[N45B16A]	03.2007-09.2012
BMW	116 1.6 i	(E87)[N43B16A]	03.2007-09.2012
BMW	116 1.6 i	(E87)[N43B16A]	08.2007-09.2012
BMW	116 1.6 i	(E87)[N43B16A]	11.2003-09.2012
BMW	116 1.6 i	(E87)[N45B16A]	03.2007-09.2012
BMW	116 1.6 i	(E87)[N45B16A]	11.2003-09.2012
BMW	116 2.0 i	(E81)[N43B20A]	11.2008-09.2012
BMW	116 2.0 i	(E87)[N43B20A]	11.2003-09.2012
BMW	116 2.0 i	(E87)[N43B20A]	11.2008-09.2012
BMW	118 2.0 i	(E87)[N43B20A]	07.2004-09.2012
BMW	118 2.0 i	(E87)[N43B20A]	09.2006-09.2012
BMW	118 2.0 i	(E87)[N46B20B]	07.2004-09.2012
BMW	118 2.0 i	(E87)[N46B20B]	09.2006-09.2012
BMW	118 2.0 i	(E87)[N46B20C]	09.2006-09.2012
BMW	118 2.0 i	(E88)[N43B20A]	03.2008-
BMW	120 2.0 i	(E81)[N43B20A]	09.2006-09.2012
BMW	120 2.0 i	(E81)[N46B20B]	09.2006-09.2012
BMW	120 2.0 i	(E81)[N46B20C]	09.2006-09.2012
BMW	120 2.0 i	(E82)[N43B20A]	09.2009-
BMW	120 2.0 i	(E87)[N43B20]	09.2006-09.2012
BMW	120 2.0 i	(E87)[N43B20A]	09.2006-09.2012
BMW	120 2.0 i	(E87)[N43B20A]	11.2003-09.2012
BMW	120 2.0 i	(E87)[N46B20A]	09.2006-09.2012
BMW	120 2.0 i	(E87)[N46B20B]	09.2006-09.2012
BMW	120 2.0 i	(E87)[N46B20B]	11.2003-09.2012
BMW	120 2.0 i	(E87)[N46B20BD]	11.2003-09.2012
BMW	120 2.0 i	(E87)[N46B20C]	09.2006-09.2012
BMW	120 2.0 i	(E87)[N46B20C]	11.2003-09.2012
BMW	120 2.0 i	(E87)[N46B20CC]	11.2003-09.2012
BMW	120 2.0 i	(E87)[N46B20CD]	11.2003-09.2012
BMW	120 2.0 i	(E88)[N43B20A]	03.2008-
BMW	125 3.0 i	(E82)[N52B30A]	10.2007-
BMW	125 3.0 i	(E88)[N52B30A]	03.2008-
BMW	130 3.0 i	(E81)[N52B30A]	09.2006-09.2012
BMW	130 3.0 i	(E81)[N52B30B]	09.2006-09.2012
BMW	130 3.0 i	(E81)[N52B30BF]	09.2006-09.2012
BMW	130 3.0 i	(E87)[N52B30A]	03.2005-09.2012
BMW	130 3.0 i	(E87)[N52B30A]	09.2006-09.2012
BMW	130 3.0 i	(E87)[N52B30AF]	03.2005-09.2012
BMW	130 3.0 i	(E87)[N52B30B]	03.2005-09.2012
BMW	130 3.0 i	(E87)[N52B30B]	09.2006-09.2012
BMW	130 3.0 i	(E87)[N52B30BF]	03.2005-09.2012
BMW	130 3.0 i	(E87)[N52B30BF]	09.2006-09.2012
BMW	135 3.0 i	(E82)[N54B30A]	10.2007-
BMW	135 3.0 i	(E82)[N55B30A]	10.2007-
BMW	135 3.0 i	(E88)[N54B30A]	03.2008-
BMW	135 3.0 i	(E88)[N55B30A]	03.2008-
BMW	1M 3.0	(E82)[N54B30A]	04.2011-06.2012
BMW	316 1.6 i	(E90)[N43B16A]	09.2007-12.2011
BMW	316 1.6 i	(E91)[N43B16A]	05.2008-05.2012
BMW	316 1.6 i	(E92)[N43B16A]	09.2007-
BMW	318 2.0 i	(E90)[N43B20A]	09.2007-12.2011
BMW	318 2.0 i	(E91)[N43B20A]	09.2007-
BMW	318 2.0 i	(E91)[N46B20B]	09.2007-
BMW	320 2.0 i	(E90)[N43B20A]	09.2007-12.2011
BMW	320 2.0 i	(E91)[N43B20A]	09.2007-
BMW	320 2.0 i	(E93)[N43B20A]	01.2007-
BMW	320 2.0 i	(E93)[N43B20A]	03.2007-
BMW	323 2.5 i	(E90)[N52B25]	04.2006-06.2007
BMW	323 2.5 i	(E91)[N52B25A]	04.2006-06.2007
BMW	323 2.5 i	(E91)[N52B25A]	09.2006-07.2008
BMW	325 2.5 i	(E90)[N52B25]	01.2005-
BMW	325 2.5 i	(E90)[N52B25]	01.2005-12.2011
BMW	325 2.5 i	(E90)[N52B25A]	01.2005-
BMW	325 2.5 i	(E90)[N52B25A]	01.2005-12.2011
BMW	325 2.5 i	(E90)[N52B25A]	01.2006-
BMW	325 2.5 i	(E90)[N52B25C]	01.2005-
BMW	325 2.5 i	(E92)	06.2006-12.2010
BMW	325 2.5 i	(E92)[N52B25A]	09.2006-
BMW	325 2.5 i	(E92)[N52B25C]	09.2006-
BMW	325 2.5 i	(E93)[N52B25]	03.2007-
BMW	325 2.5 i	(E93)[N52B25A]	03.2007-
BMW	325 2.5 Xi	(E90)[N52B25A]	01.2005-12.2011
BMW	325 2.5 Xi	(E90)[N52B25C]	01.2005-12.2011
BMW	325 2.5 Xi	(E91)[N52B25A]	01.2005-
BMW	325 2.5 Xi	(E91)[N52B25C]	01.2005-
BMW	325 2.5 Xi	(E92)[N52B25A]	09.2006-
BMW	325 2.5 Xi	(E92)[N52B25C]	09.2006-
BMW	325 3.0 i	(E90)	06.2006-12.2011
BMW	325 3.0 i	(E90)[N53B30]	09.2007-12.2011
BMW	325 3.0 i	(E90)[N53B30A]	09.2007-12.2011
BMW	325 3.0 i	(E91)[N53B30]	09.2007-
BMW	325 3.0 i	(E91)[N53 B30A]	01.2012-
BMW	325 3.0 i	(E91)[N53B30A]	01.2012-
BMW	325 3.0 i	(E91)[N53B30A]	09.2007-
BMW	325 3.0 i	(E92)[N51B30A]	09.2007-
BMW	325 3.0 i	(E92)[N53B30]	09.2007-
BMW	325 3.0 i	(E92)[N53B30A]	07.2007-
BMW	325 3.0 i	(E92)[N53B30A]	09.2007-
BMW	325 3.0 i	(E93)[N51B30A]	03.2007-
BMW	325 3.0 i	(E93)[N53B30]	03.2007-
BMW	325 3.0 i	(E93)[N53B30A]	03.2007-
BMW	325 3.0 i	(E93)[N53B30A]	10.2006-
BMW	325 3.0 i xDrive	(E90)[N53B30A]	09.2008-12.2011
BMW	325 3.0 i xDrive	(E91)[N51B30A]	09.2008-
BMW	325 3.0 i xDrive	(E91)[N53B30A]	09.2008-
BMW	325 3.0 i xDrive	(E92)[N51B30A]	09.2008-
BMW	325 3.0 Xi	(E90)[N53B30A]	09.2007-12.2011
BMW	325 3.0 Xi	(E91)[N53B30A]	09.2007-
BMW	325 3.0 Xi	(E92)[N53B30A]	09.2007-
BMW	330 3.0 i	(E90)[N52B30]	01.2005-
BMW	330 3.0 i	(E90)[N52B30]	01.2005-12.2011
BMW	330 3.0 i	(E90)[N52B30A]	01.2005-
BMW	330 3.0 i	(E90)[N52B30A]	01.2005-12.2011
BMW	330 3.0 i	(E90)[N52B30A]	09.2007-12.2011
BMW	330 3.0 i	(E90)[N53B30A]	09.2007-12.2011
BMW	330 3.0 i	(E91)[N52B30A]	09.2007-
BMW	330 3.0 i	(E91)[N53B30A]	09.2007-
BMW	330 3.0 i	(E92)[N52B30A]	09.2006-
BMW	330 3.0 i	(E92)[N53B30A]	09.2007-
BMW	330 3.0 i	(E93)[N52B30A]	03.2007-
BMW	330 3.0 i	(E93)[N53B30A]	03.2007-
BMW	330 3.0 i xDrive	(E90)[N53B30A]	09.2008-12.2011
BMW	330 3.0 i xDrive	(E91)[N53B30A]	09.2008-
BMW	330 3.0 i xDrive	(E92)[N53B30A]	09.2008-
BMW	330 3.0 Xi	(E90)[N52B30A]	01.2005-12.2011
BMW	330 3.0 Xi	(E90)[N53B30A]	09.2007-12.2011
BMW	330 3.0 Xi	(E91)[N52B30A]	01.2005-
BMW	330 3.0 Xi	(E91)[N53B30A]	09.2007-
BMW	330 3.0 Xi	(E92)[N52B30A]	09.2006-
BMW	330 3.0 Xi	(E92)[N53B30A]	09.2006-
BMW	335 3.0 i	(E90)[N54B30A]	09.2006-12.2011
BMW	335 3.0 i	(E90)[N55B30A]	09.2006-12.2011
BMW	335 3.0 i	(E91)[N54B30A]	09.2006-
BMW	335 3.0 i	(E91)[N55B30A]	09.2006-
BMW	335 3.0 i	(E92)[N54B30A]	09.2006-
BMW	335 3.0 i	(E92)[N55B30A]	09.2006-
BMW	335 3.0 i	(E93)[N54B30A]	03.2007-
BMW	335 3.0 i	(E93)[N54B30B]	03.2007-
BMW	335 3.0 i	(E93)[N55B30A]	03.2007-
BMW	335 3.0 i xDrive	(E90)[N54B30A]	09.2008-12.2011
BMW	335 3.0 i xDrive	(E90)[N55B30A]	09.2008-12.2011
BMW	335 3.0 i xDrive	(E91)[N54B30A]	09.2008-
BMW	335 3.0 i xDrive	(E91)[N55B30A]	09.2008-
BMW	335 3.0 i xDrive	(E92)[N54B30A]	09.2008-
BMW	335 3.0 i xDrive	(E92)[N55B30A]	09.2008-
BMW	335 3.0 Xi	(E90)[N54B30A]	09.2007-12.2008
BMW	335 3.0 Xi	(E90)[N54B30A]	09.2007-12.2011
BMW	335 3.0 Xi	(E90)[N55B30A]	09.2007-12.2011
BMW	335 3.0 Xi	(E91)[N55B30A]	09.2007-
BMW	335 3.0 Xi	(E92)[N55B30A]	09.2006-
BMW	520 1.6 i	(F10)[N20B16A]	11.2015-
BMW	520 1.6 i	(F18)[N20B16A]	11.2015-
BMW	520 2.0 i	(E61)[N43B20A]	07.2007-08.2010
BMW	523 2.5 i	(E60)[N52B25]	07.2005-
BMW	523 2.5 i	(E60)[N52B25A]	01.2007-
BMW	523 2.5 i	(E60)[N52B25A]	07.2005-
BMW	523 2.5 i	(E60)[N53B25A]	01.2007-
BMW	523 2.5 i	(E61)[N52B25]	07.2005-
BMW	523 2.5 i	(E61)[N52B25A]	01.2007-
BMW	523 2.5 i	(E61)[N52B25A]	07.2005-
BMW	523 3.0 i	(F10)[N53B30A]	03.2010-
BMW	523 3.0 i	(F11)[N53B30A]	09.2010-
BMW	525 2.5 i	(E60)[N52B25]	07.2005-
BMW	525 2.5 i	(E60)[N52B25A]	07.2005-
BMW	525 2.5 i	(E61)[N52B25]	07.2005-
BMW	525 2.5 i	(E61)[N52B25A]	07.2005-
BMW	525 2.5 Xi	(E60)[N52B25A]	07.2005-
BMW	525 2.5 Xi	(E61)[N52B25A]	07.2005-
BMW	525 3.0 i	(E61)[N53B30]	01.2007-
BMW	528 3.0 i	(F10)[N53B30A]	03.2010-
BMW	528 3.0 i	(F11)[N53B30A]	09.2010-
BMW	530 3.0 i	(E60)[N52B30]	07.2005-
BMW	530 3.0 i	(E60)[N52B30A]	07.2005-
BMW	530 3.0 i	(E61)[N52B30]	07.2005-
BMW	530 3.0 i	(E61)[N52B30A]	01.2007-
BMW	530 3.0 i	(E61)[N52B30A]	07.2005-
BMW	530 3.0 i	(E61)[N53B30A]	01.2007-
BMW	530 3.0 i Xdrive	(E60)[N52B30A]	09.2008-
BMW	530 3.0 i Xdrive	(E60)[N53B30A]	09.2008-
BMW	530 3.0 i Xdrive	(E61)[N52B30A]	09.2008-
BMW	530 3.0 i Xdrive	(E61)[N53B30A]	09.2008-
BMW	530 3.0 Xi	(E60)[N52B30A]	01.2007-
BMW	530 3.0 Xi	(E60)[N52B30A]	07.2005-
BMW	530 3.0 Xi	(E60)[N53B30A]	01.2007-
BMW	530 3.0 Xi	(E61)[N52B30A]	01.2007-
BMW	530 3.0 Xi	(E61)[N52B30A]	07.2005-
BMW	530 3.0 Xi	(E61)[N53B30A]	01.2007-
BMW	535 3.0 i	(F10)[N55B30A]	12.2009-
BMW	535 3.0 i	(F11)[N55B30A]	10.2015-
BMW	535 3.0 i	(F18)[N55B30A]	12.2009-
BMW	535 3.0 xDrive	(F07GT)[N55B30A]	09.2010-
BMW	630 3.0 i	(E63)[N52B30]	09.2004-
BMW	630 3.0 i	(E63)[N52B30A]	07.2007-
BMW	630 3.0 i	(E63)[N52B30A]	09.2004-
BMW	630 3.0 i	(E63)[N52B30BF]	07.2007-
BMW	630 3.0 i	(E64)[N52B30]	09.2004-
BMW	630 3.0 i	(E64)[N52B30A]	07.2007-
BMW	630 3.0 i	(E64)[N52B30A]	09.2004-
BMW	630 3.0 i	(E64)[N52B30B]	07.2007-
BMW	730 3.0 i	(F01)[N52B30A]	06.2008-
BMW	730 3.0 i	(F01)[N52B30BF]	06.2008-
BMW	730 3.0 i	(F02)[N52B30A]	06.2008-
BMW	730 3.0 i	(F02)[N52B30BF]	06.2008-
BMW	730 3.0 i	(F03)[N52B30A]	06.2008-
BMW	730 3.0 i	(F03)[N52B30BF]	06.2008-
BMW	730 3.0 i	(F04)[N52B30A]	06.2008-
BMW	730 3.0 i	(F04)[N52B30BF]	06.2008-
BMW	730 3.0 Li	(E65)[N52B30]	03.2005-
BMW	730 3.0 Li	(E65)[N52B30A]	03.2005-
BMW	730 3.0 Li	(E66)[N52B30]	03.2005-
BMW	730 3.0 Li	(E66)[N52B30A]	03.2005-
BMW	730 3.0 Li	(E67)[N52B30]	03.2005-
BMW	730 3.0 Li	(E67)[N52B30A]	03.2005-
BMW	740 3.0 i	(F01)[N54B30A]	10.2008-
BMW	740 3.0 i	(F02)[N54B30A]	10.2008-
BMW	X1 3.0 xDrive	(E84)[N52B30A]	10.2009-
BMW	X1 3.0 xDrive25i	(E84)[N52B30A]	01.2010-
BMW	X3 2.0 i sDrive 20 i	(F25)[N20B20A]	02.2014-
BMW	X3 2.5 i xDrive	(E83)[N52B25A]	09.2008-
BMW	X3 2.5 si xDrive	(E83)[N52B25A]	07.2006-12.2008
BMW	X3 3.0 Diesel xDrive 28i	(F25)[N52B30A]	04.2011-
BMW	X3 3.0 i xDrive	(E83)[N52B30A]	09.2008-
BMW	X3 3.0 xDrive 35i	(F25)[N55B30A]	09.2010-
BMW	X5 3.0 i xDrive 35	(E70)[N55B30A]	02.2012-
BMW	X5 3.0 Si	(E70)[N52B30]	02.2007-09.2008
BMW	X5 3.0 Si	(E70)[N52B30A]	02.2007-09.2008
BMW	X5 3.0 xDrive35i	(E70)[N55B30A]	09.2010-
BMW	X6 3.0 i xDrive	(E71)[N54B30A]	09.2008-
BMW	X6 3.0 i xDrive	(E71)[N55B30A]	09.2008-
BMW	X6 3.0 i xDrive 35	(E71)[N54B30A]	08.2009-
BMW	X6 3.0 i xDrive 35	(E72)[N54B30A]	08.2009-
BMW	Z4 2.0	(E89)[N20B20A]	04.2013-
BMW	Z4 2.5 i	(E85)[N52B25A]	01.2006-
BMW	Z4 2.5 i sDrive	(E89)[N52B25A]	05.2009-
BMW	Z4 2.5 Si	(E85)[N52B25A]	01.2006-
BMW	Z4 3.0 i sDrive	(E89)[N52B30A]	05.2009-
BMW	Z4 3.0 i sDrive	(E89)[N54B30A]	05.2009-
BMW	Z4 3.0 sDrive35is	(E89)[N54B30A]	09.2010-
BMW	Z4 3.0 Si	(E85)[N52B30A]	01.2006-
BMW	Z4 3.0 Si	(E85)[N52B30A]	03.2006-

Reference Information

STR6707 0001107424 8213235 0001107423 1107423 1107424 12427521123 CS1412 12417521123 12417521122 254601V 7521122-03 7594292 7610343 986021500 12417579156 12417616502 12417579155 12417616500 12412354701 20432444OE 7594292-01 LRS2298 S1008B S12BH0070A2 AEY2298 91-29-5840 7521123-04 220662 428000-4490 CST40444GS 5010241 DRS0523 114740 101412B 0001107528 0001107527 S12BH0070 STRL217 RAS42611 220539 12417526237 7521123 12417526236 7579155-01 7521122 6040444 S-80604 25-3469 LRS02298 12417594292 12417610343 BOS0001107527 7579155 1107528 7616500 2354701 7579156 7616502 1107527 210.545.092 16187 12412344243 DRT1500 S6185 2344243 88864992 12417521116 7521116 63521074230 000986021500 S12VA0237 STR50508 UD12048S STRS547 12417610350 7526236 428000-1760 6.0158.9 7526237 210.525.092 101412 88213235 S12VA0237A2 SG0567 TS12E36

Video/Publications

0001107423 0001107424 0001107527 0001107528 0986021500 101412 101412B 114740 12412344243 12412354701 12417521116 12417521122 12417521123 12417526236 12417579155 12417579156 12417594292 12417610343 12417610350 12427521123 16187 20432444OE 210.525.092 210.545.092 25-3469 254601V 428000-1760 428000-4490 6.0158.9 6040444 63521074230 7521122-03 7521123-04 7579155-01 7594292-01 8213235 88213235 91-29-5840 AEY2298 BOS0001107527 CS1412 CST40444GS DRS0523 DRT1500 LRS02298 LRS2298 RAS42611 S-80604 S1008B S6185 SG0567 STR50508 STRL217 STRS547 TS12E36 UD12048S 220539 220662
