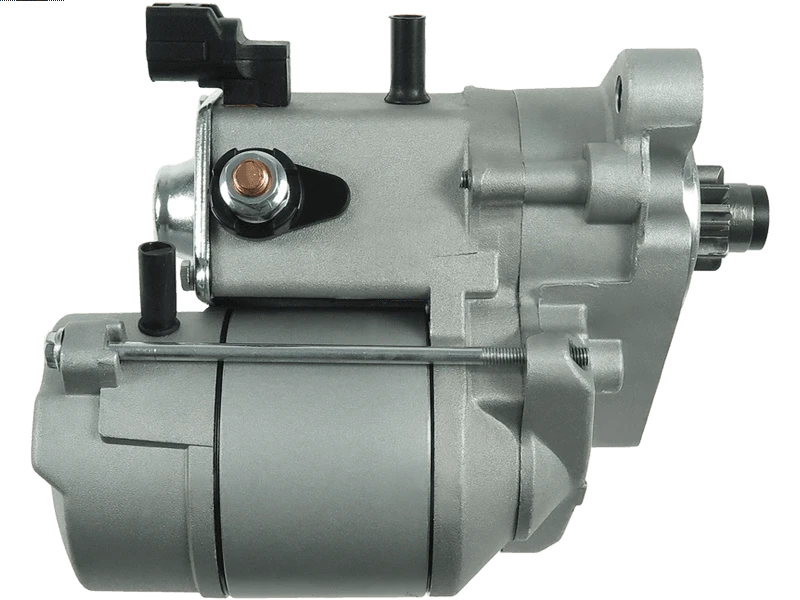

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 349.77 including GST
NZ$ 304.15 excluding GST
or four payments of $87.44
with
Learn More
each
S6201
2
Associated Numbers
17671N 17671R 190.520.092 201231 20432673BN 228000-3750 228000-3961 228000-5300 228000-5301 228000-5302 228000-5303 25-4077 28100-07010 28100-07010-84 28100-0W070 28100-62050 28100-62050-84 6040376 88213153 8EA737963-001 AEY2405 CST40376 CST40376AS CST40376ES CST40376GS CST40376OS CST40376RS DRS0577 EAA-111665 JS1231 LRS02405 SS503 STR70134 UD12960SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 187 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 16.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 55 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | 4 Runner 3.0 V6 | 07.1990-11.1995 | |
| TOYOTA | 4 Runner 3.4 | [5VZ-FE] | 01.1995-12.2002 |
| TOYOTA | Hi-Lux 3.0 | [5VZ-FE] | 01.1989- |
| TOYOTA | Land Cruiser 3.4 V6 | [5VZ-FE] | 01.1996- |
| TOYOTA | Land Cruiser Prado 3.4 | [5VZ-FE] | 01.1989- |
Reference Information
| 113119 | CARGO |
| 17671N | WAI / TRANSPO |
| 17671R | WAI / TRANSPO |
| 190.520.092 | PSH |
| 190.520.092.050 | PSH |
| 201231 | KUHNER |
| 20432673BN | REAL |
| 228000-3750 | DENSO |
| 228000-3961 | DENSO |
| 228000-5300 | DENSO |
| 228000-5301 | DENSO |
| 228000-5302 | DENSO |
| 228000-5303 | DENSO |
| 25-4077 | ELSTOCK |
| 28100-07010 | TOYOTA |
| 28100-07010-84 | TOYOTA |
| 28100-0W070 | TOYOTA |
| 28100-62050 | TOYOTA |
| 28100-62050-84 | TOYOTA |
| 6040376 | SANDO |
| 88213153 | POWERMAX |
| 8EA737963-001 | HELLA |
| AEY2405 | AUTOELECTRO |
| ANM12797X | ANDEL |
| CGB-25300 | AINDE |
| CST40376 | CASCO |
| CST40376AS | CASCO |
| CST40376ES | CASCO |
| CST40376GS | CASCO |
| CST40376OS | CASCO |
| CST40376RS | CASCO |
| DRS0577 | DELCO |
| F032113119 | CARGO |
| JS1231 | HC PARTS |
| LRS02405 | LUCAS |
| LRS2405 | LUCAS |
| SS503 | SOVEREIGN |
| STR6117 | ELECTROLOG |
| STR70134 | WOODAUTO |
| STRF282 | 3EFFE |
| STX201016 | STARDAX |
| STX201215 | STARDAX |
| UD12960S | AS-PL |
Video/Publications
