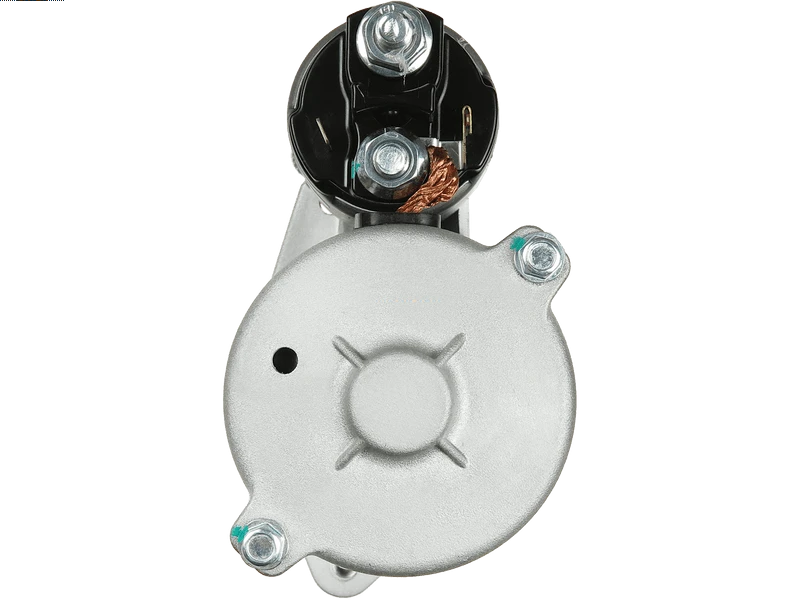

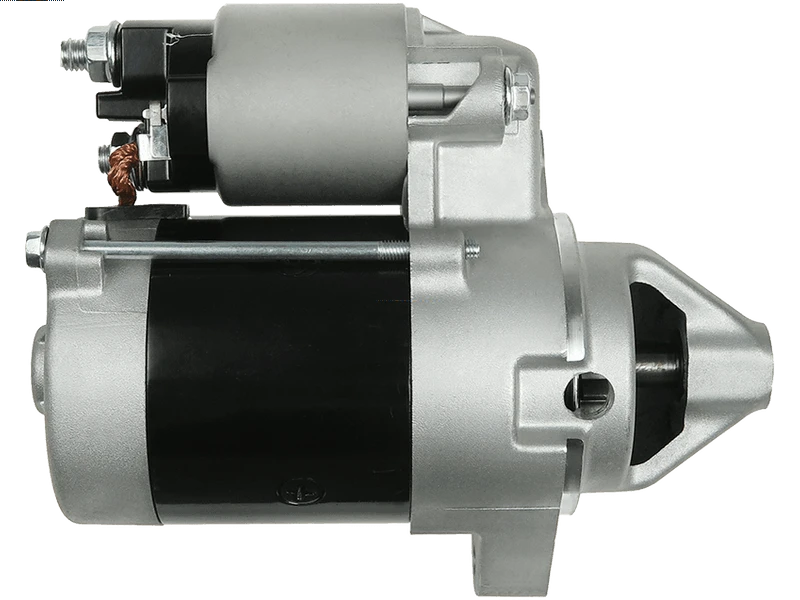

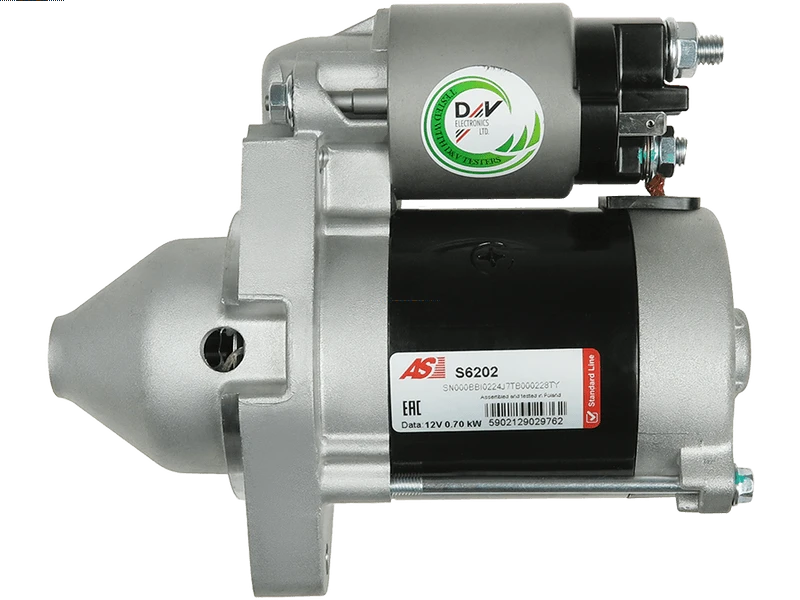

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 244.95 including GST
NZ$ 213.00 excluding GST
or four payments of $61.24
with
Learn More
each
S6202
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
128000-7940Associated Numbers
116149 12499-63010 128000-7940 18048N 190-10277 21163-2093 246-06109 254540 71-29-18048 8845 91-29-5218 AM108615 RS41288 S-8498 SND0290 STN0051 UD12053SSpecifications
| Kilowatt | 0.70 kW |
| Length (L.1) | 181 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 180 | 01.1986-12.1990 | |
| JOHN DEERE | 185 | 01.1986-12.1990 | |
| JOHN DEERE | 260 | 01.1988-12.1991 | |
| JOHN DEERE | 265 | 01.1988-12.1994 | |
| JOHN DEERE | 325 | 01.1995-12.2005 | |
| JOHN DEERE | F525 | 01.1990-12.2000 | |
| JOHN DEERE | F710 | 01.1991-12.2001 | |
| JOHN DEERE | GS75 | 01.1997-12.2003 | |
| JOHN DEERE | GS75 | ||
| JOHN DEERE | GT262 | 01.1992-12.1996 | |
| JOHN DEERE | GT265 | 01.1995-12.2005 | |
| JOHN DEERE | GT275 | 01.1995-12.1996 | |
| JOHN DEERE | HD75 | 01.1997-12.2003 | |
| JOHN DEERE | HD75 | ||
| JOHN DEERE | LX186 | 01.1991-12.1991 | |
| KAWASAKI | Engine | [FC540V] | |
| KUBOTA | T1700H | [GH540V] | 01.1992-12.1995 |
| KUBOTA | T1700HX | [GH540V] | 01.1992-12.1995 |
Reference Information
| 116149 | CARGO |
| 1249863010 | KUBOTA |
| 12499-63010 | KUBOTA |
| 128000-7940 | DENSO |
| 18048N | WAI / TRANSPO |
| 190-10277 | ROBERT'S |
| 2043200ABN | REAL |
| 20432883BN | REAL |
| 211632073 | KAWASAKI |
| 211632073A | KAWASAKI |
| 21163-2093 | KAWASAKI |
| 246-06109 | DIXIE |
| 254540 | KUHNER |
| 6040388.0 | SANDO |
| 6040A00.0 | SANDO |
| 71-29-18048 | WILSON |
| 8845 | CEVAM |
| 91-29-5218 | WILSON |
| AM104559 | JOHN DEERE |
| AM108615 | JOHN DEERE |
| CST40388AS | CASCO |
| CST40A00AS | CASCO |
| F032116149 | CARGO |
| MAV423880A | SIOM |
| RS41288 | DELCO |
| S-8498 | DIXIE |
| SND0290 | MISCELLANEOUS |
| STN0051 | KRAUF |
| STR6799 | ELECTROLOG |
| UD12053S | AS-PL |
Video/Publications
