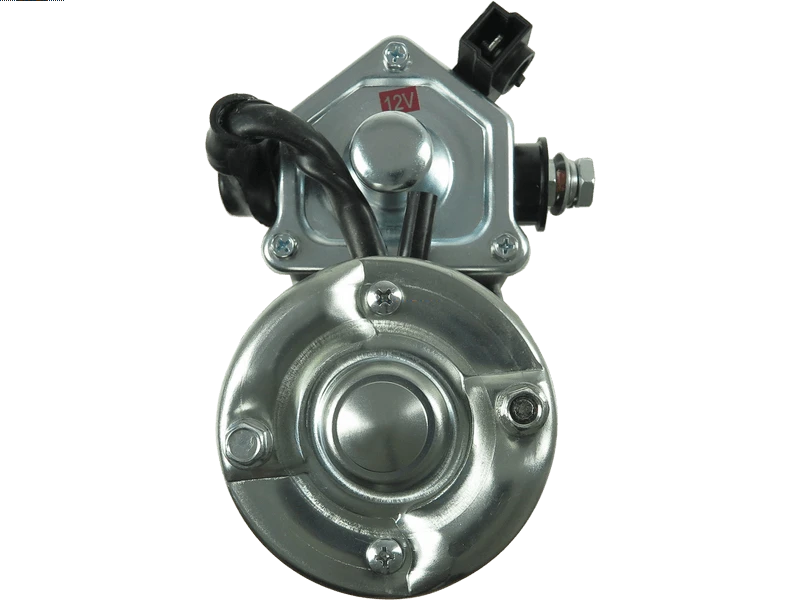

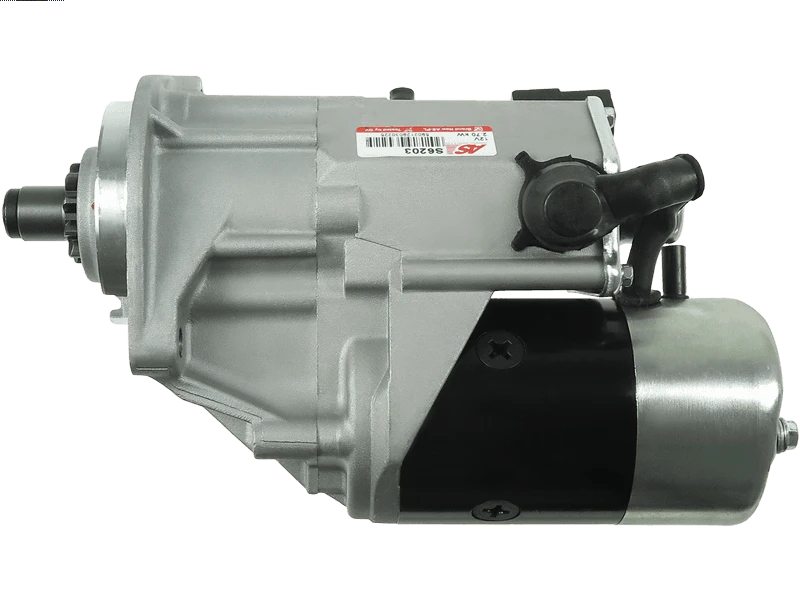

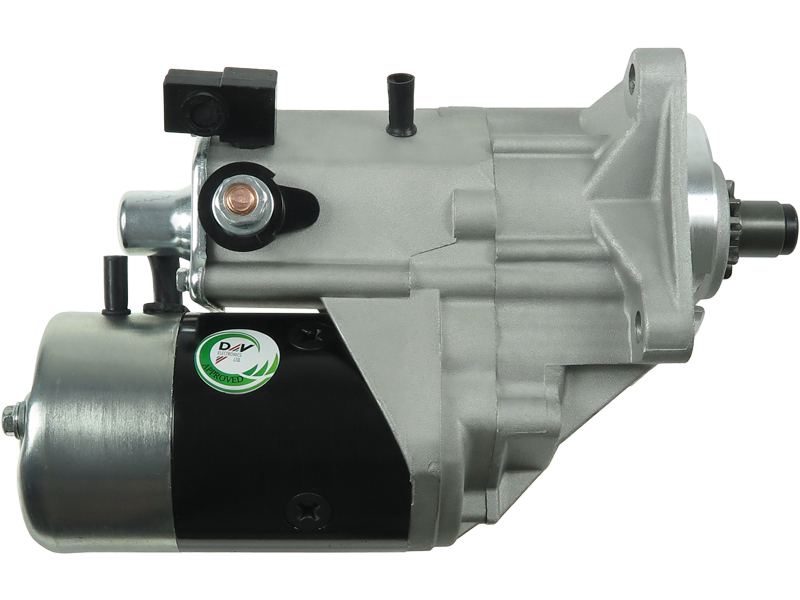

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 473.86 including GST
NZ$ 412.05 excluding GST
or four payments of $118.47
with
Learn More
each
S6071
S6203
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
228000-1421Associated Numbers
0R4319 1121767 1420539 1430538 17418N 190-25113 20735 228000-1350 228000-1351 228000-1352 228000-1420 228000-1421 228000-1422 246-25147 3E7905 6V0492 8131 91-29-5384 91-29-5384N DRS0336 S-80451 STR30057 UD12966S 0R4316 Caterpillar 110941 Cargo 2280001350 Denso show 2280001351 2280001352 2280001420 2280001421 2873k409 Perkins 4280002450 640535103 PSH 91295384 Wilson 9722809135 9722809142 Remy F042000062 Bosch JS735 HC OR4319 Wood Auto STR6056 Unipoint WOOSTR30057Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 296 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BARBER GREENE | BG730 | [3056T] | |
| CATERPILLAR | 236B | [3044C] | 01.2003-12.2007 |
| CATERPILLAR | 246B | [3044C] | 01.2003-12.2007 |
| CATERPILLAR | 252B | [3044C] | 01.2003-12.2007 |
| CATERPILLAR | 262B | [3044C] | 01.2003-12.2007 |
| CATERPILLAR | 267B | [3044C] | 01.2003-12.2007 |
| CATERPILLAR | 277B | [3044C] | 01.2003-12.2007 |
| CATERPILLAR | 287B | [3044C] | 01.2003-12.2007 |
| CATERPILLAR | 414E | [3054] | |
| CATERPILLAR | 416B | [3054] | 01.1992-12.1996 |
| CATERPILLAR | 416C | [3054] | 01.1996-12.2000 |
| CATERPILLAR | 416D | [3054] | 01.2001-12.2005 |
| CATERPILLAR | 416D | [3054B] | 01.2001-12.2005 |
| CATERPILLAR | 416D | [3054C] | 01.2001-12.2005 |
| CATERPILLAR | 416E | [3054C] | 01.2006-12.2015 |
| CATERPILLAR | 420D | [3054] | 01.2001-12.2005 |
| CATERPILLAR | 420E | [3054C] | 01.2006-12.2015 |
| CATERPILLAR | 422E | [3054C] | 01.2006-12.2015 |
| CATERPILLAR | 424D | [3054] | 01.2001-12.2005 |
| CATERPILLAR | 424D | [3054B] | 01.2001-12.2005 |
| CATERPILLAR | 424D | [3054C] | 01.2001-12.2005 |
| CATERPILLAR | 426B | [3054] | 01.1992-12.1996 |
| CATERPILLAR | 426C | [3054] | 01.1996-12.2006 |
| CATERPILLAR | 428B | [3054] | 01.1992-12.1996 |
| CATERPILLAR | 428C | [3054] | 01.1996-12.2001 |
| CATERPILLAR | 428D | [3054] | 01.2001-12.2005 |
| CATERPILLAR | 428D | [3054C] | 01.2001-12.2005 |
| CATERPILLAR | 428E | [3054C] | 01.2006-12.2015 |
| CATERPILLAR | 430D | [3054] | 01.2001-12.2005 |
| CATERPILLAR | 430D | [3054C] | 01.2001-12.2005 |
| CATERPILLAR | 430E | [3054] | 01.2006-12.2015 |
| CATERPILLAR | 432D | [3054C] | 01.2001-12.2005 |
| CATERPILLAR | 432E | [3054C] | 01.2006-12.2015 |
| CATERPILLAR | 436B | [3054] | 01.1992-12.1996 |
| CATERPILLAR | 436C | [3054] | 01.1996-12.2006 |
| CATERPILLAR | 438B | [3054] | 01.1992-12.1996 |
| CATERPILLAR | 438C | [3054] | 01.1996-12.2001 |
| CATERPILLAR | 438D | [3054] | 01.2001-12.2003 |
| CATERPILLAR | 442D | [3054] | 01.2001-12.2005 |
| CATERPILLAR | 442D | [3054C] | 01.2001-12.2005 |
| CATERPILLAR | 442E | [3054C] | 01.2006-12.2015 |
| CATERPILLAR | 444E | [3054C] | 01.2006-12.2015 |
| CATERPILLAR | Engine | [1000] | 01.1992-12.2002 |
| CATERPILLAR | Engine | [3054] | 01.1992-12.2002 |
| CATERPILLAR | Engine | [P600] | 01.1992-12.2002 |
Reference Information
| 0R-4316 | CATERPILLAR |
| 11040881 | EUROTEC |
| 143-0539 | CATERPILLAR |
| 17418N | WAI / TRANSPO |
| 17418R | WAI / TRANSPO |
| 190-25113 | ROBERT'S |
| 20432833BN | REAL |
| 228000-1351 | DENSO |
| 228000-1421 | DENSO |
| 246-25147 | DIXIE |
| 32A66-02100 | MITSUBISHI |
| 336137 | LOGISTIK |
| 336183 | LOGISTIK |
| 428000-1660 | DENSO |
| 6040338.0 | SANDO |
| 640.535.103 | PSH |
| 6V-0492 | CATERPILLAR |
| 8131 | CEVAM |
| 91-29-5384 | WILSON |
| 91-29-5384N | WILSON |
| CST40338AS | CASCO |
| DENDSN2115 | WOODAUTO |
| DRS0336 | DELCO |
| DS1446 | DELCO |
| DSN2115 | DENSO |
| MAV423380A | SIOM |
| S6203 | AS-PL |
| S-8506 | DIXIE |
| STR30057 | WOODAUTO |
| STR6130 | ELECTROLOG |
| STR70417 | WOODAUTO |
| UD12966S | AS-PL |
